While manipulating the AFM tip across a plane, the ink is transported onto the substrate through a water meniscus. The ink molecules, or atoms, jump from the tip to the substrate because of a strong polar bond.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dip Pen Nanolithography, how it's done | |||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
| The method is actually pretty simple. It works just like a printer, moving back and forth over a surface. Only the AFM tip would write on the x and y axes of a coordinate plane. Literally, the tip would graph what is programmed to be written. While manipulating the AFM tip across a plane, the ink is transported onto the substrate through a water meniscus. The ink molecules, or atoms, jump from the tip to the substrate because of a strong polar bond. |
|||||||||||||||||||||||||||
| http://www.zyvex.com/nanotech/feynman.html | |||||||||||||||||||||||||||
| Richard Feynman's speech written at the nano scale. |
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
| http://www.chem.nwu.edu/~mkngrp/dippen.html | |||||||||||||||||||||||||||

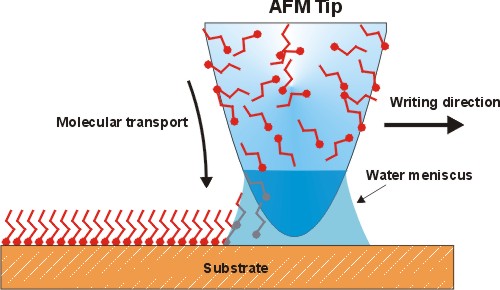

| Diagram of the writing process. | |||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
| http://www.chem.nwu.edu/~mkngrp/dippen.html | |||||||||||||||||||||||||||

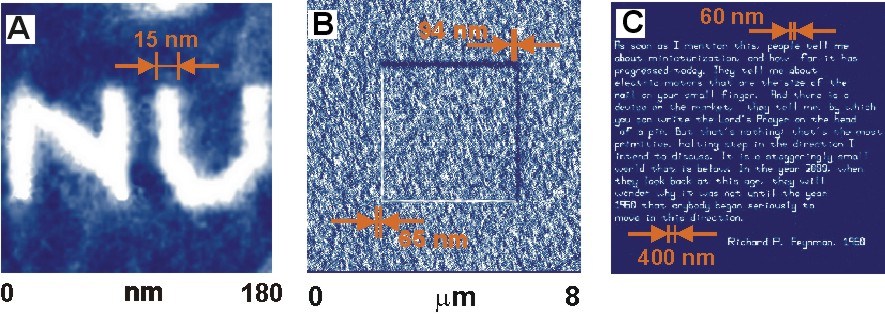

| A) Ultra-high resolution pattern of mercaptohexadecanoic acid (the ink) on atomically-flat gold surface. B) DPN generated nanostructure with two aligned alkanethiol patterns. C) Richard Feynmann's historic speech written using the DPN nanoplotter. | |||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
