| Total fault seal potential is the combination of all effects from juxtaposition, shale smear, and cataclasis factors. | |||||
|
|||||

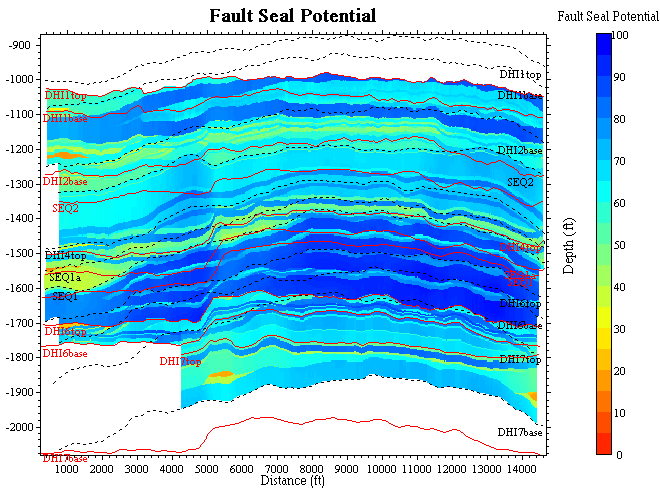

| Overall fault seal potential is a logical combination of stratigraphy juxtaposition, shale smear and cataclasis seal factors. In this image both up- and down-thrown horizon lines are superposed to show the relative position of stratigraphy layers on both sides. Warm colors indicate weak sealing locations. | |||||
