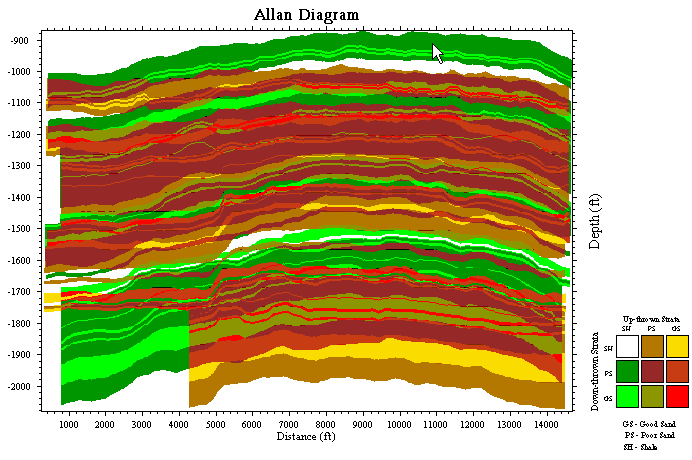

| This diagram shows juxtaposition relationship of different stratigraphic layers. Colors represent different layers of different quality, as shown in the lower-right legend. Note that the colors don't represent fault seal capability as they do in other diagrams. This diagram is similar to traditional Allen diagram. | |||
