Digital OPL2 Recording

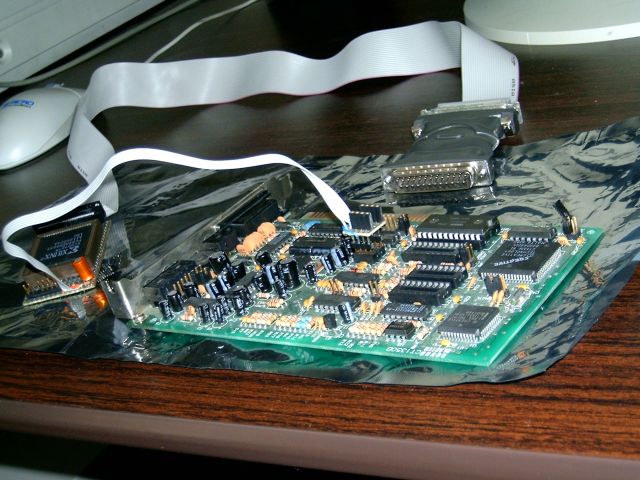

The device attached to the YM3014B DAC socket of a Sound Blaster. The output goes to a parallel port connector. Note that Doc built the input connector with provisions for piggy-backing the DAC on top (based on Olli's design). Unfortunately, I lost the DAC so I cannot monitor the output.

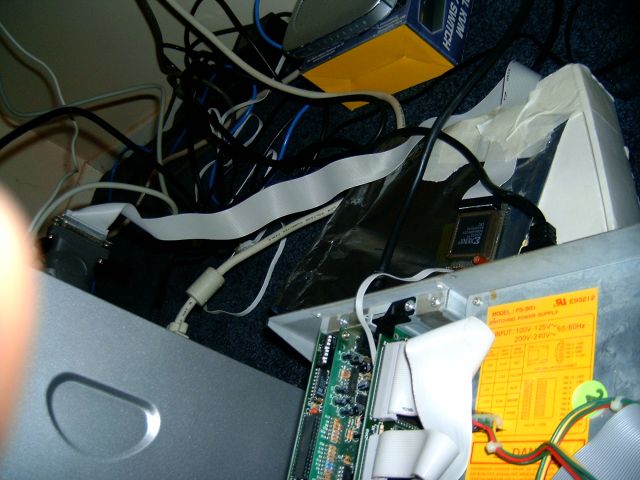

On the right: An XT (10MHz) with the Sound Blaster and cable running out to the device. Left: Output goes into a P4 2.8.

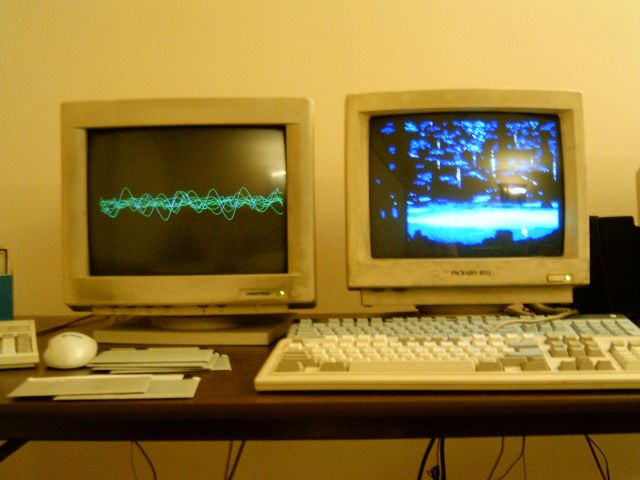

Right screen: XT with Future Wars running. Left screen is the P4 running Olli's reader program showing the recorded waveform.
