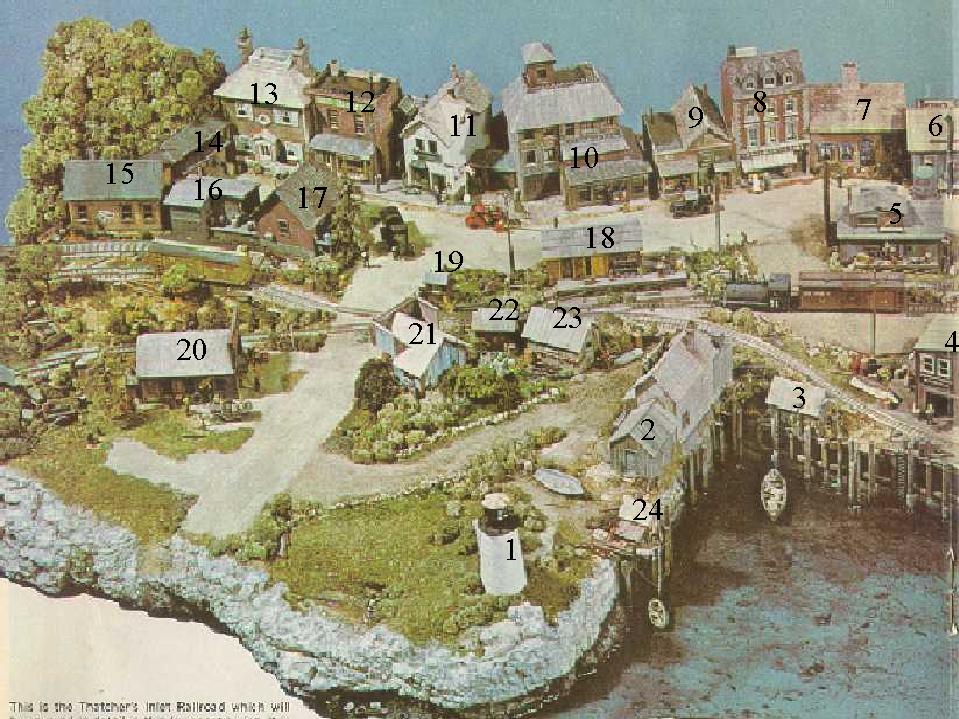

Left side Thatcher's Inlet buildings

The lighthouse at Thatcher's Inlet Scratchbuilt, Dave Frary and Bob Hayden, Railroad Model Craftsman, September 1973, Pages 36 through 37.
Was available from 'Builders in Scale' Lighthouse 169-612 2x5x5 1/2 ... See also first issue kit.

Preston's Fish house Campbell Scale Models 200-364 Sheriff's Office Kit 3 1/2 x 5 inches.
Reviewed by Bob Hayden in Railroad Model Craftsman November 1970 page 54.
Preston's Fish Railroad Model Craftsman, June 1976 page 49

Jerome McKue Fishing shack Part of Timberline Boot Hill cemetery kit.
Reviewed by Bob Hayden in Railroad Model Craftsman April 1971 page 56 and 58.

Sam Cahoon's Fish House (#1 on Right side) Kitbash -
WAS Available in laser cut kit from Northeastern Structures
as NE20109 "Sam Cahoons Fish Pier"

8 Ball Lomotive Works Scratchbuilt, Dave Frary and Bob Hayden, Railroad Model Craftsman, October 1970, Pages 28 through 29.

Ellis Turner's Glue Factory and Freal's Fish Eye Fertilizer Plant (See #10 on TI right side )

Unknown shop?
Unknown
? x ? inches.

Virgil Doubleday's Fish shop
Heljan Kit # 322-464 Watchmaker's shop with Apartments 3 1/8 x 2 3/4 inches.
Reviewed by Bob Hayden in Railroad Model Craftsman September 1971 page 48 and 49.
Available from Bachmann Plus as Bob's Bike Shop Item Number 35123

"On March 21, 1901 the Maine State Legislature passed "An Act to Establish a State Flag ." The flag was to include a Pine Tree centered on a buff colored field. Equidistant from the hoist and upper border of the flag a blue polar star was to be displayed.

Interestingly, on February 23, 1909, the State Legislature adopted a new standard, describing the state flag as a display of the Maine coat of arms on a blue field. This is the flag in use today, more or less."

Wood's Furniture
Mostly from the Rico station 6 x 6 inches. Liberties taken with the back side view since it was never shown in TI articles

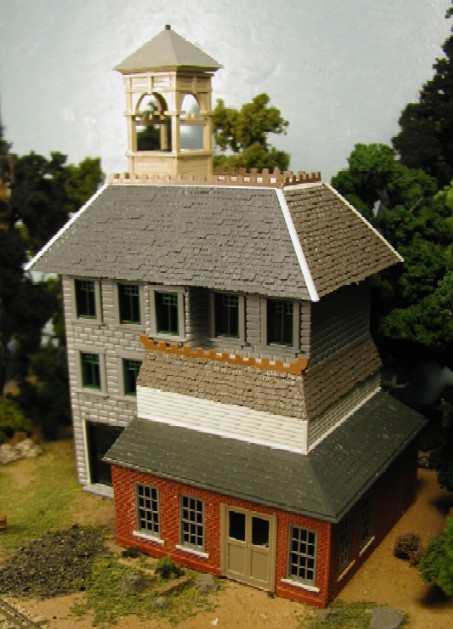

TI Municipal Building

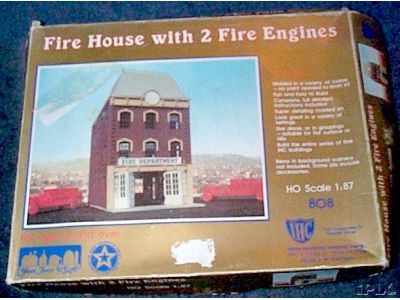

Orginally thought it was a IHC Firehouse 348-808 and Ahm HO Fire House kit #15808 , AHM Rico depot tower, roof plus Revel farmhouse porch roof. However now I know it is a Heljan kit # 456 AHM Rico depot tower and roof plus Revel farmhouse porch roof.

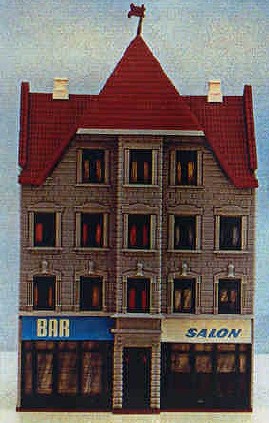

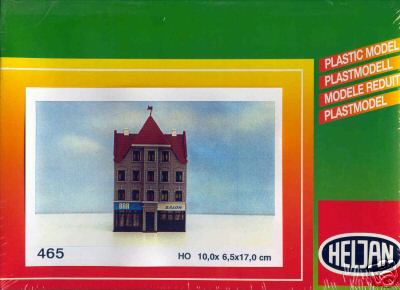

Big Picture of Heljan Bar

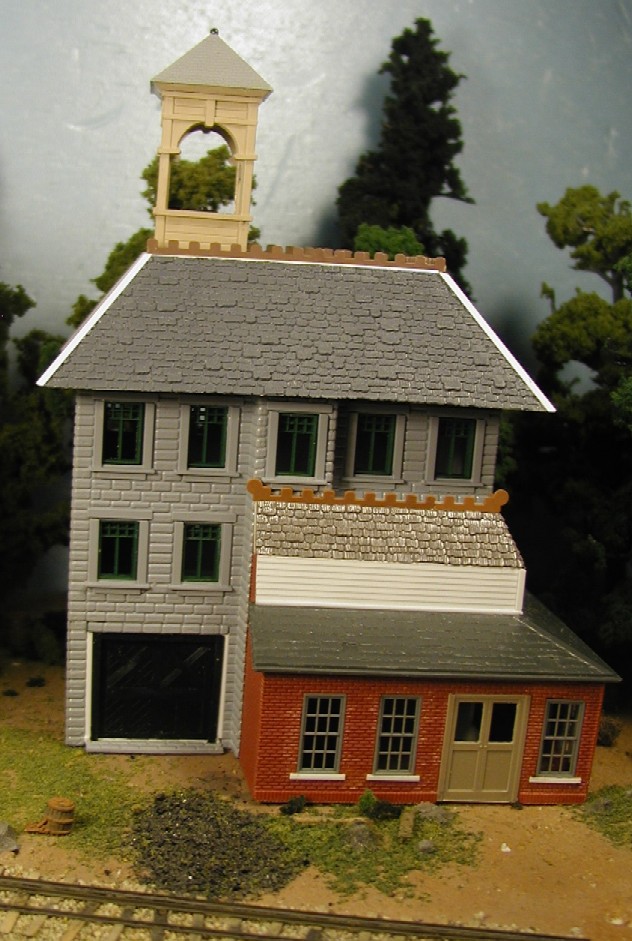

Here is how it came out for me:

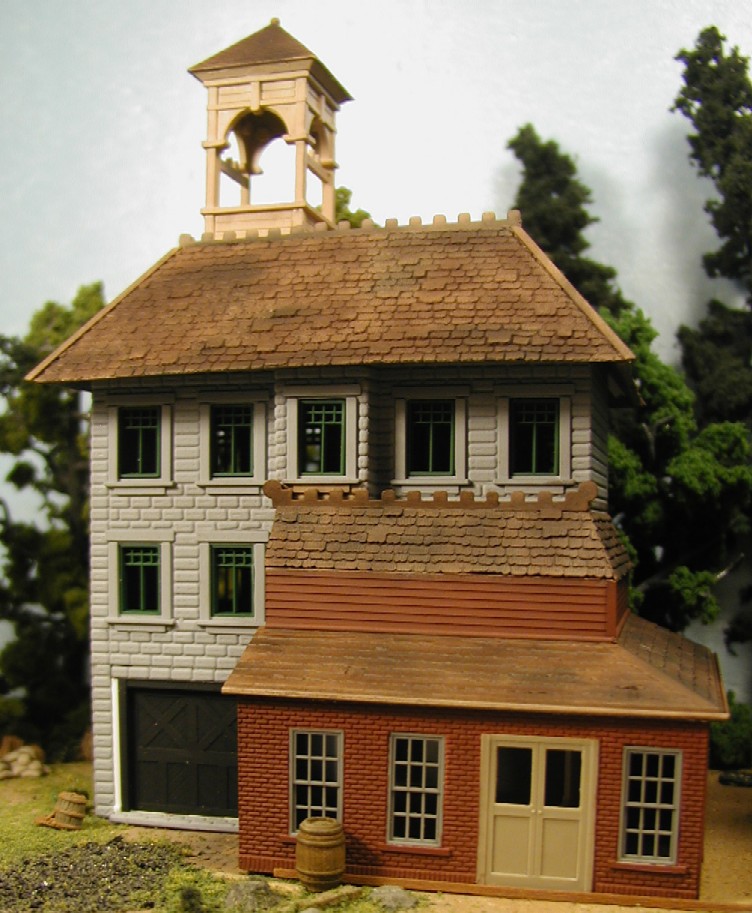

roof view a / roof view b / roof after paint and chalk
10.0 x 6.5 x 17 cm.
Described in Railroad Model Craftsman October 1971 page 36-37. RMC Dremel Kit Bashing Award first contest

Mr. McGillicutty Ice Cream shop per Lars Maggot
Builder Unknown
? x ? inches.

Ship's Chandlery
bashed from AHM Ramsey Journal Building Kit
3 3/4 wide x 3 5/8 deep and 4 inches high .
Here is how it came out for me:

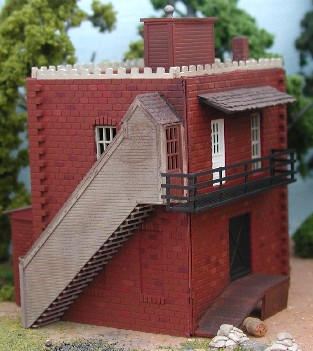

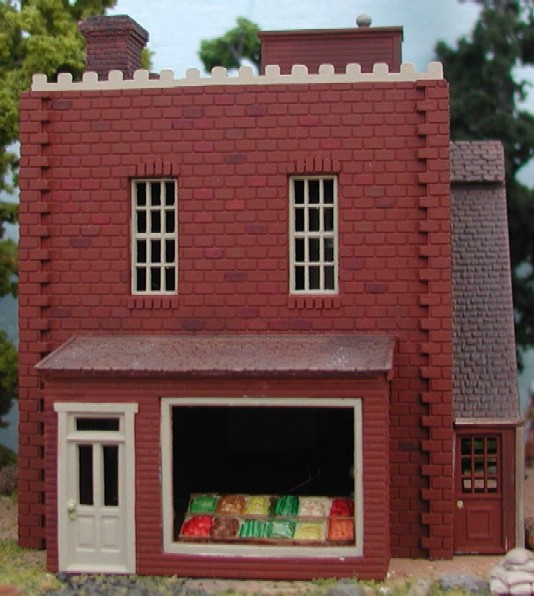

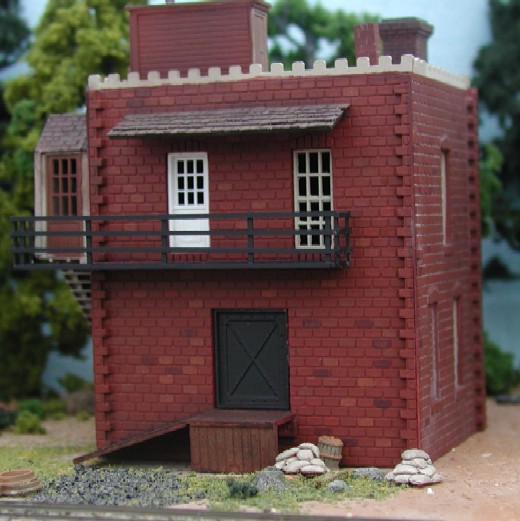

front / side / back /

I used the stock windows painted bone buff color, roof trim from AHM Rico depot (entire top rim), roof access stairs were AHM Ramsey Journal Building counter raised to minimum door height, ventilator was turned from plastic sprue, need to add one more round chimney in right front location. Maine Winters must be cold! The extended store front was based on the original article pictures and defined by the AHM shed roof, Campbell HO 917 door and store window from kit used to make Neverly Sister's Rooming House bashed (AHM Emporium Department Store Corner building #5879).
Yes, I added a back and dock that Bob and Dave did not have. Also added the enclosed stairs and covered second floor balcony. Tinted random bricks with variations from basic brick red color. The far side had grey chalk morter added but it was not satisfactory for the entire building. Will revisit when weathering to final location.

Sarah Buckley's "Seaman's Inn"
Scratchbuilt, Dave Frary and Bob Hayden,
windows from Alexander Haunted House Kit # 7558 (RS-558)
? x ? inches.

Unknown? Built up as Sandrini's
Orginally was bits and pieces left over from kitbashing some of the bigger structures per Bob Hayden
Similar to Valley Lumber Mill #407 from Model Power
? x ? inches.
Also similar to Lumber Dealer's yard by Quality Craft Models Reviewed by Bob Hayden in Railroad Model Craftsman August 1971 page 54 and 55.
For TI II, added second floor to basic kit, eave returns and 6x6 windows from Micro Engineering.
? x ? inches.

Portsmouth Tidewater (PT) Railroad (Std gauge) RR warehouse
Scratchbuilt, Dave Frary and Bob Hayden,
? x ? inches.

PT Railroad (Std gauge) RR station
kitbash per Bob Hayden with parts of AHM Rico depot
? x ? inches.
Described in Railroad Model Craftsman October 1971 page 36-37.
RMC Dremel Kit Bashing Award first contest

Portsmouth Tidewater Railroad Standard Gauge RR warehouse
? x ? inches.
Fore shortened version of the Revell farmhouse with Atlas bank brick foundation added. Also added Model Hobbies phone box as reviewed by Bob Hayden in Railroad Model Craftsman August 1971 page 54.
? x ? inches.
Described in Railroad Model Craftsman October 1971 page 36-37. RMC Dremel Kit Bashing Award first contest. This building was also used in the Elk River series behind Tipple number 3 .

Supply shed at Corner of Main and Beals Avenue
Lineside supply shed Model Railroader, September 1958 page 26 by Jack Work
Could be done with Campbell Scale Models 200-370 Supply shed but need to modify the eave vent and use a tar paper roof instead of shingles, unless you REALLY like shingles like I do.
2 1/2 x 5 1/4 inches.

I got very excited when I ran across the article in an old Model Railroader by one of my favorite authors, Jack Work. Of course I only recognized the building because I was in the middle of building the Campbell's kit, and struggeling to put ENOUGH bracing in the wood structure that the walls and roof could be stained with the Sweet and Sour method. Vinegar & the cheapest steel wool that you can find make a great wood stain. But you need to brace the structure every way you can so it will not warp too much.
What Jack Work or Dave F call a three day build, takes me about a week.

The unloading platform is very entertaining to build, with lots of detailed bracing underneath to spur interest. On the positive side, I now feel confident I can add a similar unloading platform structure to the 8-ball locomotive works (building #5 above) and install the loafers to complete the structure.
The windows and louvers are a utility grey, Campbells shingles were used insted of the TI grey tarpaper roof. Will turn a brass pin head down for the door knobs.

Watchman's shack on Beals Avenue
Atlas Telephone Shanty 150-705
Seagull poo added after research trip to Rockland Maine.
1 3/8 x 3 1/16 inches.

Gas station and automotive garage on Beals Avenue
Originally thought to be Campbell Scale Models 200-461 The Blacksmith shop
3 x 5 1/8 inches
however that kit was not released until 1985. Now thought to be the Columbia Gazzet building 200-361
I suspect the building was based on a magazine article because Bob and Dave said they scratch built it.

Clocks and Timepieces on Beals Avenue

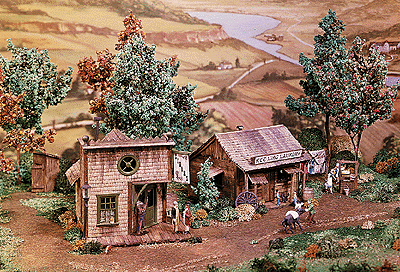

Campbell Scale Models 200-365 (A) The Cigar store
2 11/16 x 3 3/16 inches.
Reviewed by Bob Hayden and Dave Frary in Railroad Model Craftsman April 1971 page 60 and 61.

fish shed?
Unknown
There were two pictures of this shed published in the Thatcher's Inlet series. They seem to show a shed roofed wooden building with a broken front door. Until other information develops, this building is represented by a Sequoia Passenger waiting station. 2.3 x 1.1 inches.

Fishing shed
Campbell Scale Models 200-370 speeder shed (B)
2 11/16 x 3 3/16 inches.

Farley Gruen's Fishing shack
Outhouse from 200-367 Skull Valley Station kit.
(Identified as Horace Savage's boat house in caption March 1972 pg 41. Reviewed by Bob Hayden in Railroad Model Craftsman September 1971 page 42.
? x ? inches.
