| SCOPE ROOM PAGE 2 |
||||||||||||||||||
|
||||||||||||||||||

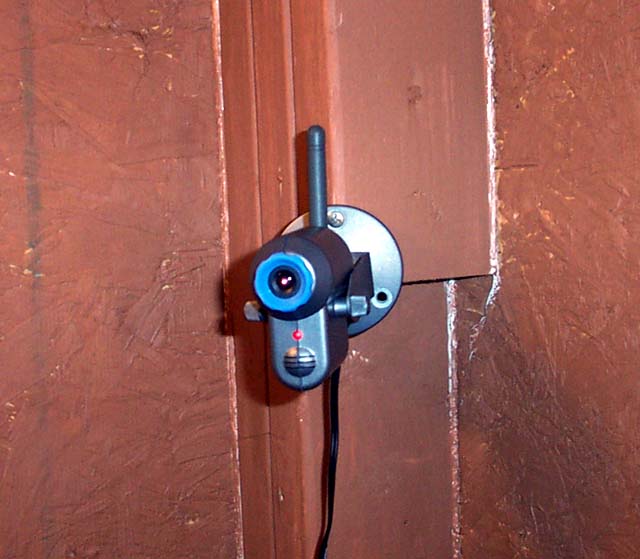

| THIS PICTURE SHOWS THE WIRELESS CAMERA MOUNTED AT CORNER OF OBSEVATORY | ||||||||||||||||||
|
||||||||||||||||||
| THIS IS THE GENERAL VIEW OF THE CAMERA WHICH IS SEEN ON THE TV IN THE CONTROL ROOM. THIS WAY I CAN KEEP AN EYE ON THE MOVEMENT OF THE SCOPE WITHOUT HAVING A WINDOW WHICH MAY CAUSE TEMP. CHANGES BETWEEN THE TWO ROOMS. | ||||||||||||||||||
|
||||||||||||||||||

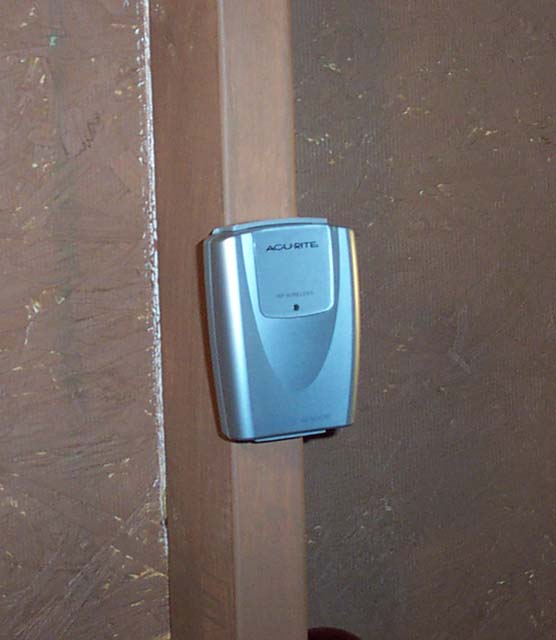

| THIS IS THE REMOTE TEMP. SENSOR WHICH WILL SEND THE OUTSIDE TEMP. TO THE MAIN READOUT IN THE CONTROL ROOM. I CHOSE TO PLACE IT ON THE WALL OF THE INSIDE OF OBSERVATORY, RATHER THAN AN OUTSIDE WALL, IS BECAUSE I FELT IT WOULD GIVE A TRUER READING OF THE TEMP AT THE SCOPE AND CAMERA | ||||||||||||||||||
