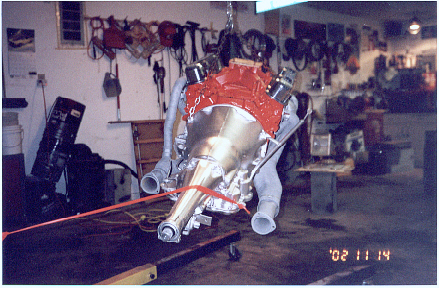

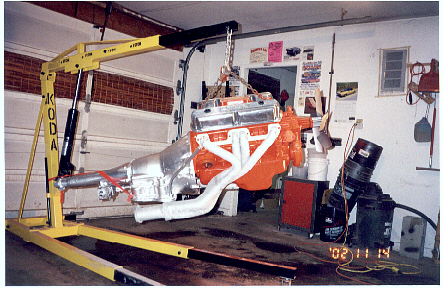

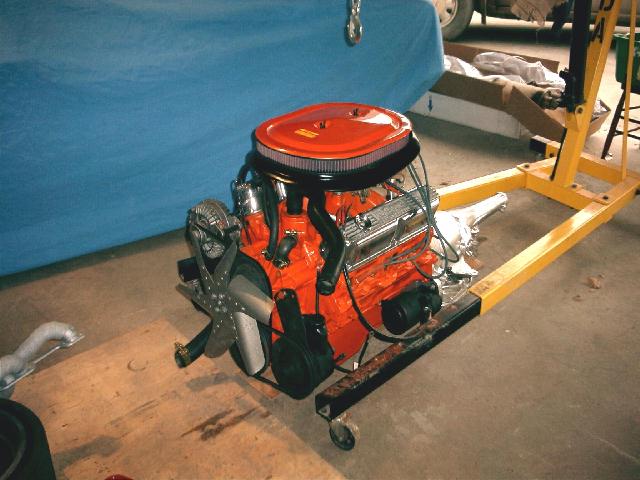

Engine Type: 1971 "340" "LA."
Weight: 550 lbs.
Bore and Stroke: 4.04" x 3.31."
Carb: 750 cfm Carter
Intake: Holley/Weiand X-Celerator 7545. 1500-7000 rpm power band. Single plane/open plenum. Square flange carb mount.
Valves: 2.02 intake 1.60 exhaust.
Crank/Rods: Forged shot peened. ARP Rod Bolts.
Cam: 7500 rpm 280 Magnum Intake 0.45 Exhaust 0.476
Timing Chain: Double Roller
Exhaust Headers: 1 7/8" primary tubes to 2 1/2"
Compression: 10.5:1.
Oil Pump: High Output Front Sump.
Tranny: 3 speed auto 727 with Alabama Boss Hogg 2600 stall converter.
Rear Axle: 8 3/4 - 3.91:1 Suregrip
|
