PRODUCT
| |

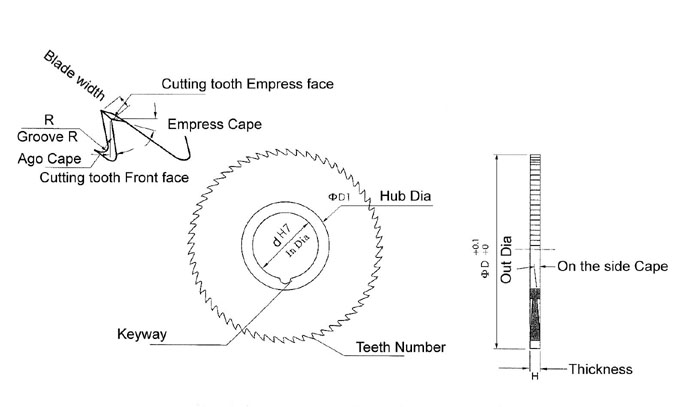

Each parts of name for Circular Saws
|
|
 |
 |
Basic
Size of HSS Circular Saws
|
|
| OD
mm |
THK |
Usage
tooth quantity (T) |
ID
mm |
| Ø5-Ø14 |
0.2-6.0 |
12,
16, 20, 24, 30 |
2.5,
3, 4, 5, 6 |
| Ø16-Ø25 |
0.2-6.0 |
16,
24, 32, 40 |
5,
6, 8, 10, 13 |
| Ø30-Ø40 |
0.2-6.0 |
40,
48, 64, 72, 80 |
12.7,
13, 16 |
| Ø45-Ø50 |
0.2-6.0 |
48,
64, 72, 80 |
12.7,
13, 16 |
| Ø60-Ø63 |
0.2-6.0 |
64,
72, 80, 90, 100, 120, 128 |
16,
22 |
| Ø70-Ø80 |
0.4-6.0 |
64,
72, 80, 90, 100, 120, 128 |
16,
22, 32, 1" |
| Ø90-Ø125 |
0.8-6.0 |
64,
72, 80, 90, 100, 120, 128 |
22,
27, 32, 1" |
|
- We make
prouduct according to your required;
- When
the accuracy has together standard request to have some discrepancies
please note is special to request the business trip data of
part;
- This
is the basic size circular saws, if you need to other specs,
you can order and send us the diagram paper.
|
|
