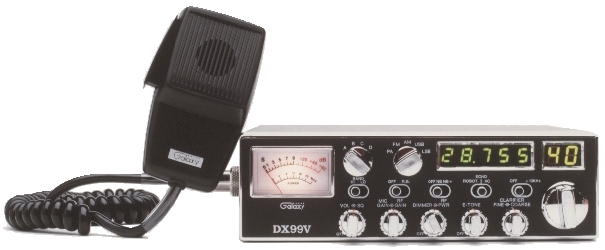

| DX 99 V |
 |
| 1) Locate the small circuit board that is located on the side towards the rear of the radio. 2) Remove the jumper wire that is soldered on to the solder side of this board. 3) Remove the two screws that hold this board in place and underneath you will notice a connector thats not plugged in. Plug it back in. |
| VR1 AM/FM S-meter VR2 SSB S-meter VR3 SSB Squelch VR4 AM/FM Squelch VR5 FM deviation VR7 SSB Carrier Balance VR8 RF meter VR10 Final Bias VR11 Driver Bias VR12 SSB ALC VR13 AM/FM High power VR14 AM Modulation VR16 AM/FM Low power VR20 Final Bias VR21 TX offset |
 |
|
