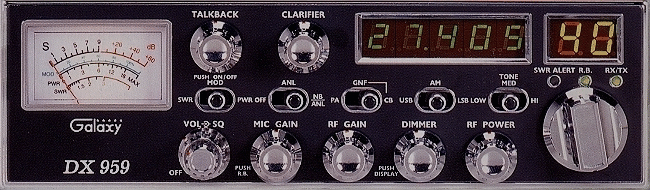

DX-959
Channel Modification

1)  On the back of the channel selector switch, locate the wires marked P5 and P6.
2)  Cut these wires and place SPST switches in-line with them.
Power Tweek

1)  Change Q47 and Q48 to a 2SC2312.
2)  Change D91 to a 1N4148 diode.
3)  Change C209 to a 390 pf .  (50 volts, mica)
4)  Change C212 to 104 uf ceramic cap. (50 volts)
5)  Change R242 to 22 ohms.
6)  Change R243 to 150 ohms.  (1/2 watt)
7)  Make sure L34 is a 22 uh coated choke.

You may remove R276 for increase in AM modulation, but be careful it doesn't garble on SSB.
Unlocking the Clarifier

1)  Remove R113.
2)  Remove D38 and place a jumper in its spot.
3)  Remove D68.
4)  Solder a wire from J9, Pin F1 to J14, pin marked "+8V".


VR1  AM S-Meter
VR2  SSB S-Meter
VR3  SSB Squelch
VR4  AM Squelch
VR6  SSB Carrier Balance
VR7  TX Offset
VR9  RF Meter
VR10  Final Bias
VR12  Driver Bias
VR13  SSB ALC
VR14  AM High Power
VR15  AM Modulation Meter
VR16  AM Modulation
VR17  SSB Power
VR18  AM Low Power
VC1  10.240
