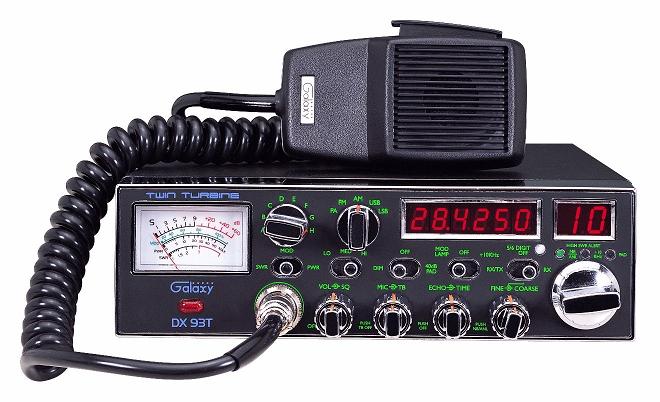

| Galaxy DX 93T |
 |
 |
| Channel Modification
1) Remove the covers from the radio. 2) On the bottom side of the main PCB board, unsolder one end of the wire and re-solder it its new spot as shown below. 3) Re-assemble the radio. |
 |
|
 |

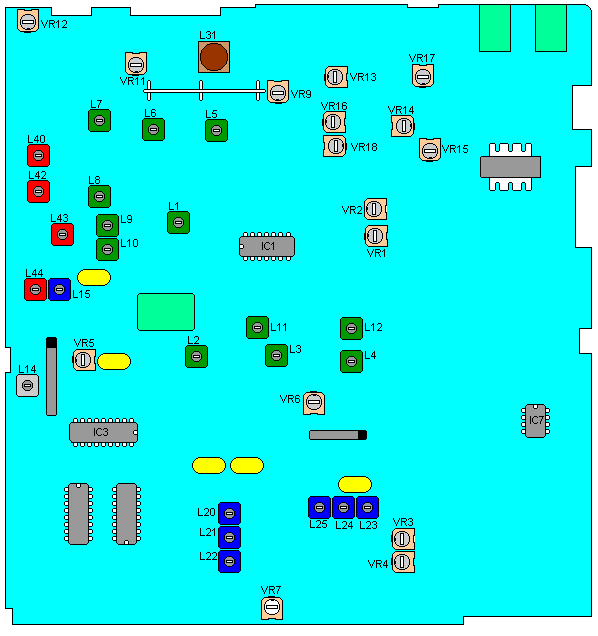

| VR1 AM-FM S-Meter
VR2 SSB S-Meter VR3 SSB Squelch VR4 AM/FM Squelch Range VR5 FM Deviation VR6 SSB Carrier Balance VR7 TX Offset Frequency VR9 RF Meter VR11 Final Bias VR12 Driver Bias VR13 SSB ALC VR14 AM High Power VR15 Modulation Meter VR16 AM Modulation VR17 SSB Power VR18 AM Low Power VR907 Clarifier Offset Frequency Adjustment VR910 Modulation Light Adjustment VR911 Medimum Power Adjustment VR912 Dimmer Low Setting |
