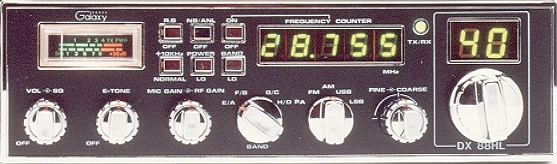

| DX 88 HL |
 |
| 1) Locate the small circuit board that is located on the side rear of the radio held in place by two screws. 2) Remove the jumper wire that is soldered on to the solder side of this board. 3) Remove the two screws that hold this board in place and underneath you will notice a connector thats not plugged in. Plug it back in. 4) There is a 3 pin plug behind the band selector switch. Re-insert the plug. |

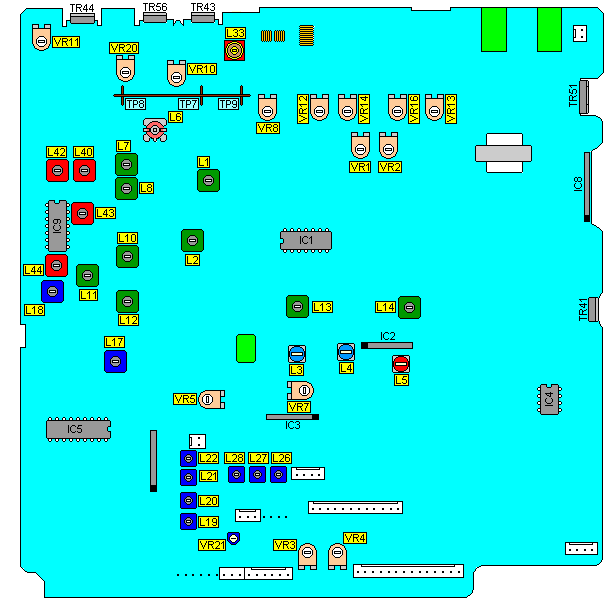

| VR1 AM/FM S-meter VR2 SSB S-meter VR3 SSB Squelch VR4 AM/FM Squelch VR5 FM deviation VR7 SSB Carrier Balance VR8 RF meter VR10 Final Bias VR11 Driver Bias VR12 SSB ALC VR13 AM/FM High power VR14 AM Modulation VR16 AM/FM Low power VR20 Final Bias VR21 TX offset |
 |
 |
