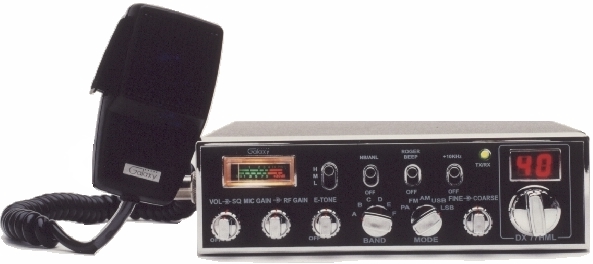

| DX 77 HML |
 |
| Notice on the bottom side of the main board towards the front there is a small jumper wire soldered to the board. One end of the wire is soldered to ground and the other end is soldered across two pins. Remove this wire and at the same time make sure that the two pins are no longer shorted together. Near the front of the radio is a plug with 3 wires on it that is not connected to anything. Locate the 3 pins that stick up from the main board normally marked "10k" and push the plug on to these pins. |
| VR1 AM/FM S-meter VR2 SSB S-meter VR3 SSB Squelch VR4 AM/FM Squelch VR5 FM deviation VR7 SSB Carrier Balance VR8 RF meter VR10 Final Bias VR11 Driver Bias VR12 SSB ALC VR13 AM/FM High power VR14 AM Modulation VR16 AM/FM Low power VR20 Final Bias VR21 TX offset Unmarked VR in 77 HML by R189 - AM/FM Medium power |
 |
|
