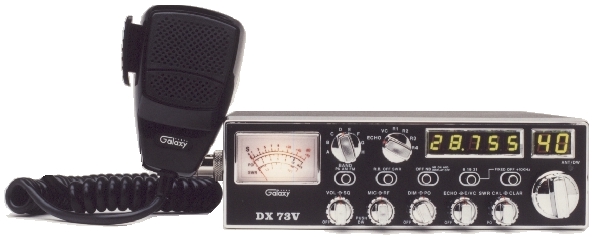

| DX 73V |
 |
| Find the small circuit board that the channel selector is mounted to. Plug in the plug that is disconnected from this board. Clip the Orange jumper wire on the rear corner of the microprocessor board. Find the two wires that are cut near the small board.(Gray and Yellow) Reconnect the wires back together. (Gray to Gray, Yellow to Yellow) This will enable your dual watch function. |
| VR1 RX meter VR4 Squelch VR5 FM deviation VR8 TX meter VR12 Low power AM modulation VR13 High power VR14 High power AM modulation VR16 Low power |
 |
|
