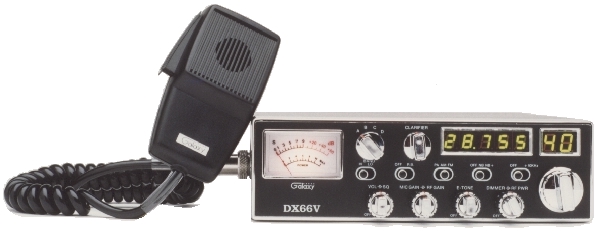

| DX 66V |
 |
| Find the small circuit board on the left side of the radio. There is a Green wire attached to this board. Clip this wire. There is an unplugged connector by this board. Plug it in. Plug in any other connectors that are not plugged in. You now have 8 bands of 40 channels. (25.165-28.755 mhz) |
| VR1 RX meter VR4 Squelch VR5 FM deviation VR8 TX meter VR12 Low power AM modulation VR13 High power VR14 High power AM modulation VR16 Low power |
 |
|
