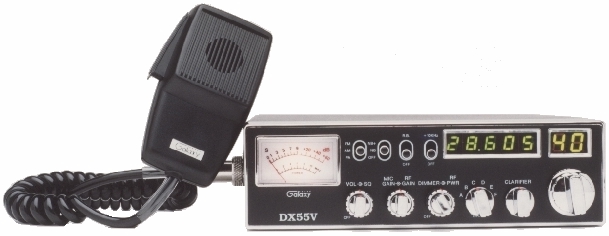

| DX 55V |
 |
| Notice on the bottom side of the main board towards the front there is a jumper wire soldered to the board. One end of the wire is soldered to ground and the other end is soldered across two pins. Remove this wire and at the same time make sure that the two pins are no longer shorted together. |
| VR1 RX meter VR4 Squelch VR5 FM deviation VR8 TX meter VR12 Low power AM modulation VR13 High power VR14 High power AM modulation VR16 Low power |
 |
|
