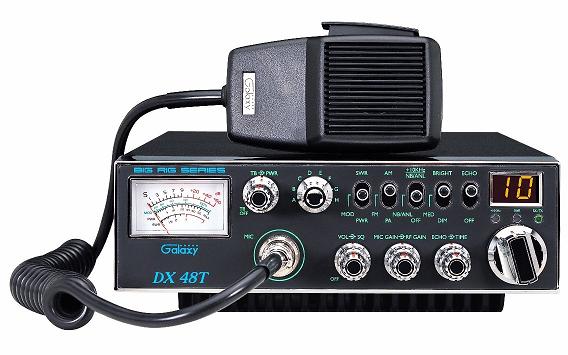

| Galaxy DX 48T |
 |
 |

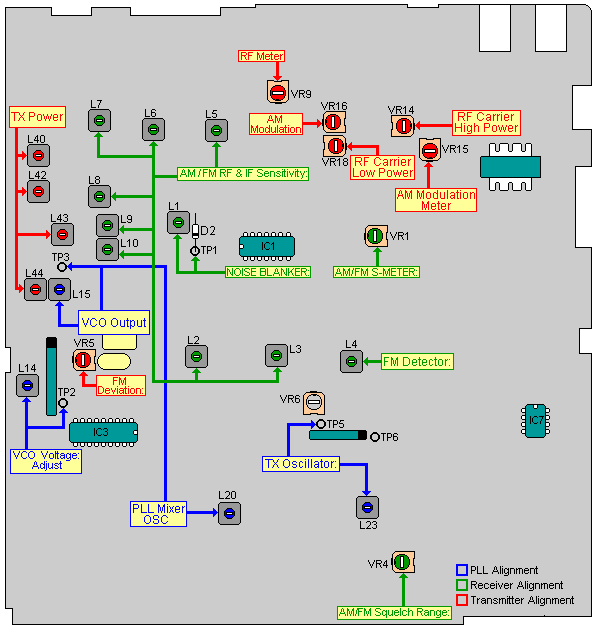

| Frequency Conversion 1) Remove the cover that has the speaker on it. 2) Locate a 6 pin jumper marked J29. 3) Remove the jumper from the left 2 pins and rotate the jumper 90 degrees and place it over the 2 pins in the upper right corner. (see below) |
 |
|
 |
|
 |
