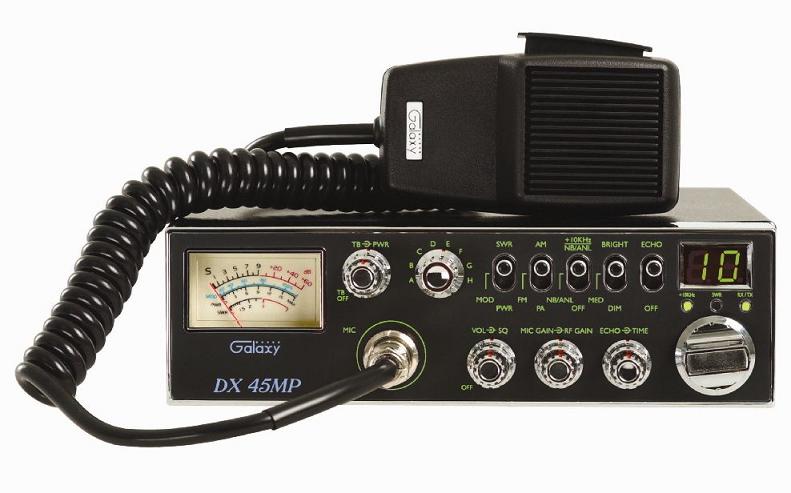

| Galaxy DX-45MP |
 |
 |
| Channel Modification
1) Remove covers from radio. 2) Locate J29. This is a 6 pin jumper block. 3) Remove the jumper from its current position to the new position as shown below. 4) Re-assemble the radio. |
 |
| VR1 S-Meter
VR4 Squelch VR5 FM Dev. VR9 TX Meter VR14 AM High Power VR15 Modulation Meter VR16 AMC VR18 AM Low Power |
 |
