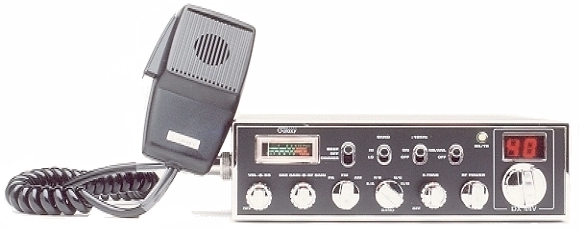

| DX 44V |
 |
| Channel Expansion 1) Find the small circuit board on the left side of the radio. 2) Cut the Green wire. 3) There is an unplugged connector by this board.....Plug it in. 4) Near the front of the radio there is a connector marked +10k. Reconnect this plug. Your channels are now expanded to 25.165-28.755. |
| VR1 RX meter VR4 Squelch VR5 FM deviation VR8 TX meter VR12 Low power AM modulation VR13 High power VR14 High power AM modulation VR16 Low power |
 |
|
