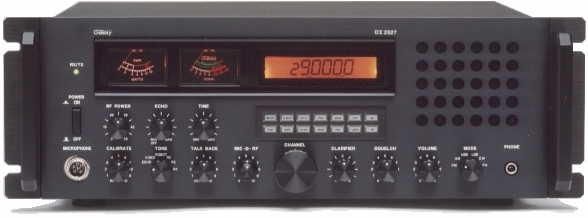

| DX-2527 |
 |
| 1) Locate the small PC board mounted right behind the display unit. 2) Locate the jumper marked "J5". 3) If you remove the jumper you'll have the regular 40 channel CB band. If you install the top jumper, you'll have 26 to 29.7 Mhz. If both jumpers are installed then you'll have 26 to 32Mhz. If an extra jumper connector is not provided, then you can solder the pins. VR1 AM/FM S-Meter VR2 SSB S-Meter VR3 SSB Squelch VR4 AM/FM Squelch VR7 SSB Carrier Balance VR8 RF Meter VR11 Driver Bias VR12 SSB ALC VR13 High Power VR14 AMC VR15 AM Low Power VR16 SSB Low Power VC1 10.240 VC2 10.240 |
 |
|
