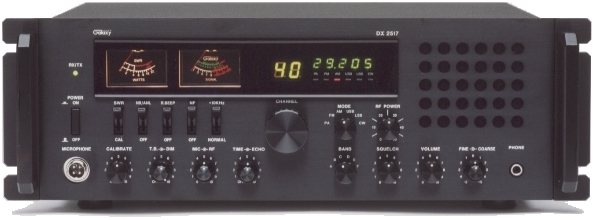

| DX-2517 |
 |
| 1) Locate the jumper plug marked J29 near the PLL chip. 2) Move the jumper plug diagonally to the opposite corner. 3) Use the band switch to change bands. VR1 AM/FM S-Meter VR2 SSB S-Meter VR3 SSB Squelch VR4 AM/FM Squelch VR5 FM Deviation VR6 SSB Carrier Balance VR7 TX offset VR8 CW Beep Level VR9 RF Meter VR10 Final Bias VR11 Final Bias VR12 Driver Bias VR13 SSB ALC VR14 AM/FM High Power VR15 AM Modulation Meter VR16 AM Modulation VR17 SSB Power VR18 AM/FM Low Power VR601 13.8 Volt Power |
 |
|
