| Galaxy DX-22B |
 |
| 1) Remove the cover off the radio.

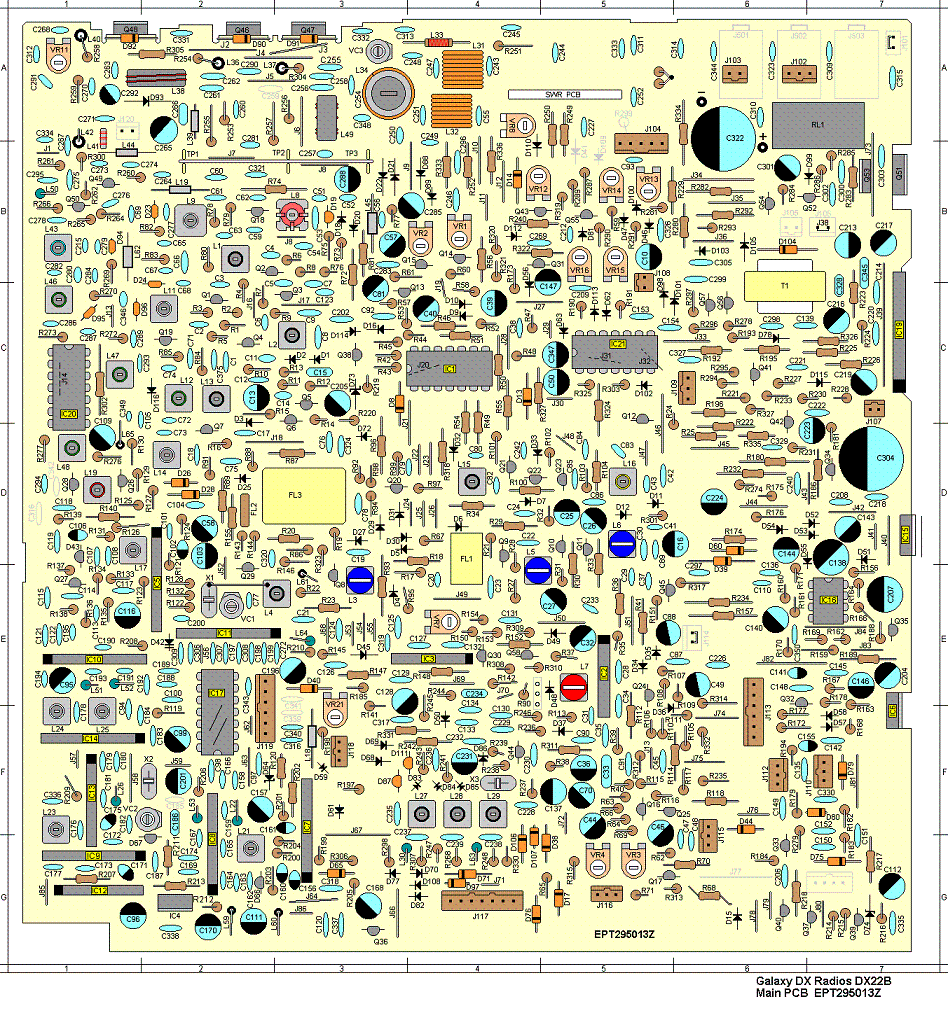

2) Locate the 4 pin jumper block on the back side of the frequency display. 3) Add another jumper to the other two pins making sure both jumpers are going up and down. 4) Turn the radio off and unplug the radios power for 1 minute. 5) Power up radio normally. You should have 26.000 to 32.000. VR1 AM/FM S-Meter VR2 SSB S-Meter VR3 SSB Squelch Range VR4 AM/FM Squelch Range VR7 SSB Carrier Balance VR8 RF Meter VR11 Driver Bias VR12 SSB ALC VR13 High Power VR14 AMC VR15 AM Low Power VR16 SSB Low Power VR21 TX Offset VC 1 10.240 VC 2 10.240 |
 |
