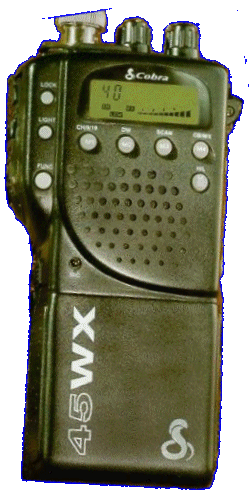

| Cobra 45 WX Handheld |
|
 |
 |

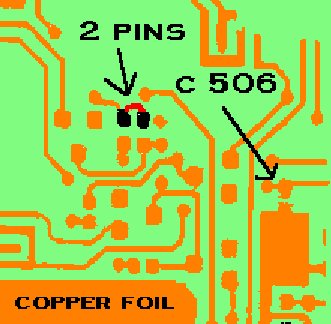

| Extra Channels 1) Remove the battery pack and the antenna. 2) Remove the screws from the back of the radio, and from the wrist strap. 3) Remove the screws from where the battery is connector. 4) Remove the Tab and Spring. 5) Hold the backside of the radio and pull the front off. 6) Locate the area on the PC board where you are going to make a small jumper. 7) After the jumper is made, you will need to reset the radio by shorting out C506. 8) Put the radio back together. |
 |
| Cobra 46 WX Handheld |
|
|
