| KOR - TOK MACHINE INDUSTRY |

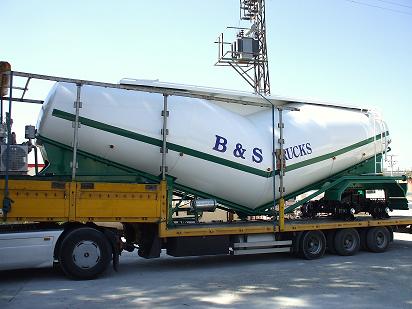

| SENTES SHJT MODEL BULK CEMENT TANKER SEMI TRAILER |
 |
 |
|
| DIMENSIONS AND WEIGHTS OVERALL LENGTH APPROX. 9.200 mm TOTAL W�DTH 2.500 mm OVERALL HEIGHT 3.300 mm from the ground approx. AXLE CAPACITY 2 x 16.000 CAPACITY 26 to 45 cubic meters approx. TARE WEIGHT 6500 KG The tank consists of two cones welded on against other,creating at the bottom the discharge cone.Skin of the tank shell is of 5 mm steel plates quality and 6 mm at the center. TYRES AND WHEELS Disc wheels 8,25 x 22,5 with 12 R22,5 tyres,all well known manufacturers LOAD�NG AND D�SCHARGE SYSTEM Loading is effected through 2 manholes,400 mm diameter on the top of the tank.The manholes are airtight and pressure tested.The discharge system incorporates: * Discharge assembly with 4'' ball valve *The discharge air varies between 1.5 and 2 bar and can completely empty the tank in an average time of 20 - 30 minutes PAINTING All metalic parts are first shot and sand blasted and then coated with epoxy primers and final painting is completed by coating with premium quality polyurethane paints. |
| For more information please contact with us Our phone and fax number is + 90 322 441 22 63 ADANA - TURKEY KORTOK MACH�NE INDUSTRY |
 |
| 2 Years Warranty |
 |
