| Special Project - Formula Race Car | |||||||||
| This was the current formula car at the time, which had already been raced in the previous year. It was used as a test mule for designing the new suspension components (e.g. ball joints, arms, etc.). | |||||||||
|
|||||||||
|
|||||||||

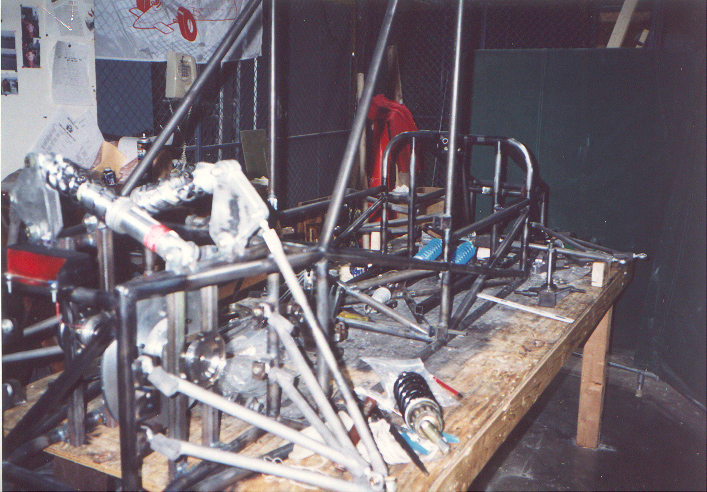

| Photo 1: rear view of the space framed formula car (without body panels) | |||||||||
|
|||||||||

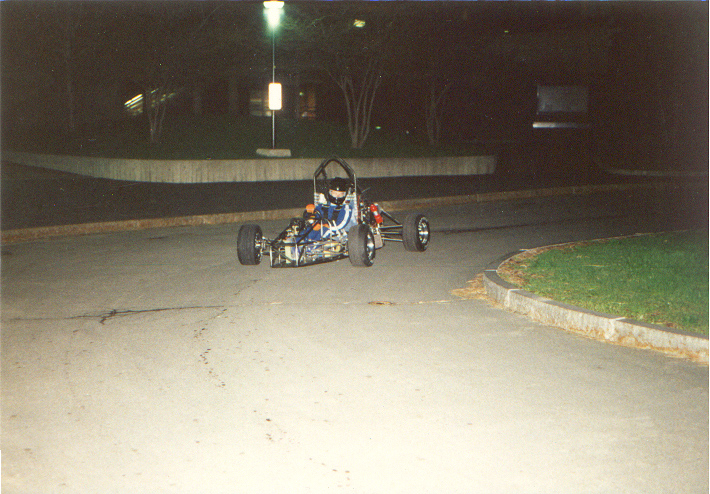

| Photo 3: night time road testing on school campus | |||||||||

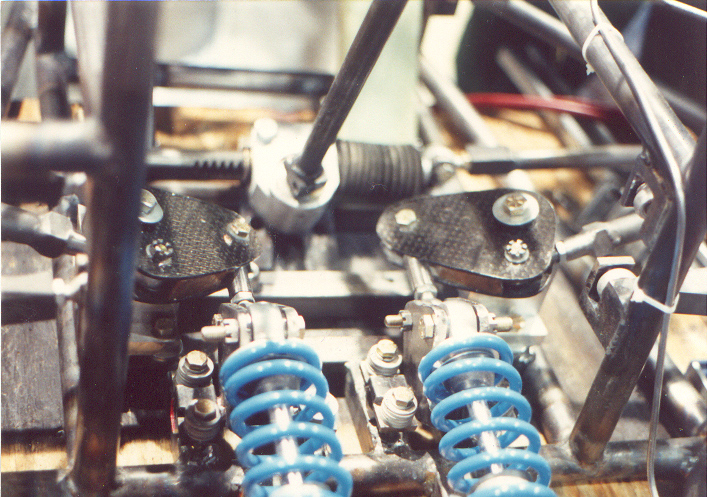

| Photo 2: close-up view of the suspension components | |||||||||
|
|||||||||

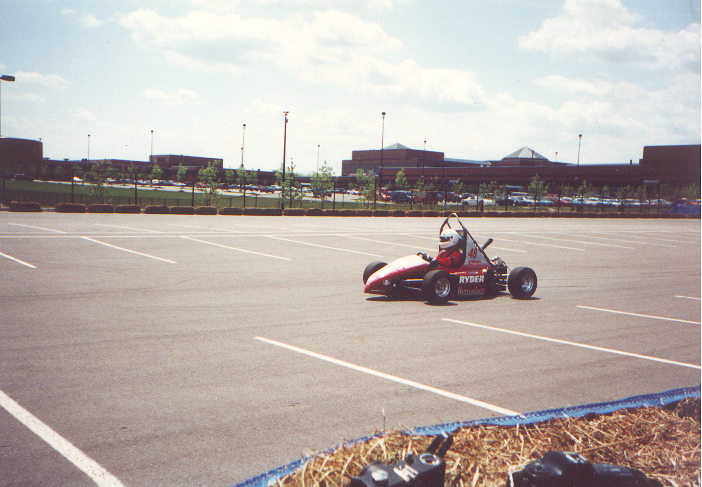

| Photo 4: day time road testing on (reserved) school parking lot | |||||||||
|
|||||||||
