THE PAST MASTER CLUB

' ** (Sterioscope)   1998 BY  NICK K. VAN VLIET DEC/1996  VERS2.1

' ** A STUDY IN 3D

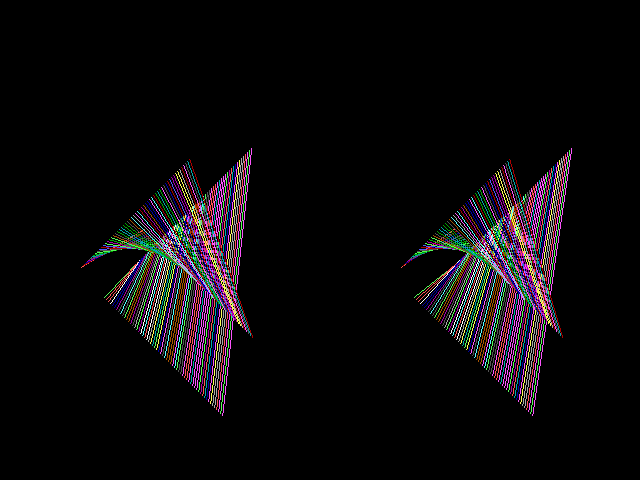

' THE LEFT 2 OBJ ARE THE SAME THE RIGHT  2 OBJECTS ARE EACH ROTATED IN

' OPPOSITE DIRECTIONS: SO THEIR TIPS ARE POINTED AWAY FROM EACH OTHER.

' THE FURTHEST RIGHT OBJECT IS DRAWN AS IF ITS BEHIND THE FIRST OBJECT:

' DISTANCE BETWEEN THEM IS INCREASED -THE MORE APART THE FARTHER BEHIND IT IS.

' IT'S THE THINESS AND WIDENESS OF THE 2 RIGHT OBJECTS THAT GIVES THE OBJECT

' 3D QUALITY TO THE EYES. -YOU CAN INCREASE OR DECREASE THIS TO SEE THE

' EFFECTS IT HAS ON ITS OWN 3D DEFINITION - NO DIFFERENCE GIVES IT 2D

' DEFENITION.

' TRY TO SEE THE 2 OBJECTS AS THE SAME OBJECT BUT WITH OPPOSITE TWIST.

' TO VIEW 3D: HOLD A LONG PLAIN SHEET VERTICALLY BETWEEN THE CENTER OF THE

' SCREEN AND YOUR NOSE SO THAT EACH EYE SEES ONE OBJECT AND THE MIND SEES A 3D

' PROJECTION OF THE DESIRED EFFECT.



10 DEFINT A-Z                      'integer



20 SCREEN 12                       'high resolution graphics mode 640x320

30 RANDOMIZE TIMER                 'seed random number generator



60  X1 = 50 + RND * 100           'COORDINATES

70  X2 = 50 + RND * 100

80  Y1 = 200 + RND * 100

90  Y2 = 200 + RND * 100



100 IF (ABS(X2 - X1) < 20) THEN GOTO 60

110 IF (ABS(Y2 - Y1) < 20) THEN GOTO 60

120  IF ((ABS(X2 - X1) < 20) AND (ABS(Y2 - Y1) < 20)) THEN GOTO 60



160 COLOR RND * 14 + 1             'set current color to random (1 to 15)



180 REM DO

190 REM DO



200 StepX1 = RND * 2 - 1           'set Step to random (-3 to 3)  '6 -3'

210 StepY1 = RND * 2 - 1

220 StepX2 = RND * 2 - 1

230 StepY2 = RND * 2 - 1

240 IF (StepX1 = 0 OR StepX2 = 0 OR StepY1 = 0 OR StepY2 = 0) THEN GOTO 190

250 IF (StepY1 / StepX1 = StepY2 / StepX2) THEN GOTO 190

258 IF (StepX1 = StepX2 AND StepY3 = StepY4 AND StepX1 = StepY3 AND StepX1 = 0) THEN GOTO 180



260 FOR Times = 1 TO 400              'NO of lines

350  COLOR RND * 14 + 1            'colors:1-15

360  DWGOFFSET = 320

370  X3 = X1 + 50                  '320  X0'=50

380  X4 = X2 + 50

390  X5 = X1 + DWGOFFSET          '640/2  X0''=300

400  X6 = X2 + DWGOFFSET

410  X7 = X3 + DWGOFFSET + 20  'DISTANCE OR MAGNIFICATION=10 RELATIVE+ ROTATION

420  X8 = X4 + DWGOFFSET + 20

430  Y3 = Y1                       '320/2

440  Y4 = Y2



470  IF (X1 < 2 OR X2 < 2 OR X3 < 0 OR X4 < 0) THEN Times = 1000

475  IF (X1 > 300 OR X2 > 300 OR X3 > 300 OR X4 > 300) THEN Times = 1000

480  IF (Y1 < 2 OR Y2 < 2 OR Y1 < 0 OR Y2 < 0) THEN Times = 1000

485  IF (Y1 > 600 OR Y2 > 600 OR Y1 > 600 OR Y2 > 600) THEN Times = 1000



490  LINE (X1, Y3)-(X2, Y4)        'NORMAL

500  REM LINE (X3, Y3)-(X4, Y4)        'NORMAL



510  LINE (X5, Y3)-((X6 - 10), Y4)           '3D DEPTH: ROTATION- DEEPER

520  REM LINE ((X7 - 0), Y3)-((X8 + 10), Y4)     '3D DEPTH: ROTATION+ CLOSER



530   G = 2   '3

540  X1 = X1 + (StepX1 * G)        'step value 2

550  Y1 = Y1 + (StepY1 * G)

560  X2 = X2 + (StepX2 * G)

570  Y2 = Y2 + (StepY2 * G)



610 NEXT



620    Count = Count + 1          'count loops

630    IF Count = 2 THEN        'NOT RECOMMENDED FOR > 3 loops

632       LOCATE 1, 1

634       COLOR 3

635       REM INPUT "HIT ENTER", U$

638       FOR I = 0 TO 9000: FOR J = 0 TO 50: NEXT J: NEXT I    'PAUSE

640       Count = 0

650       CLS

660    END IF



670 KeyStroke$ = INKEY$            'get any keystrokes

680 IF LEN(KeyStroke$) THEN KeyVal = ASC(KeyStroke$)   'convert to an integer



690 FOR PAUSE1 = 0 TO 1000

700 FOR PAUSE2 = 0 TO 40

710 NEXT

720 NEXT



740 IF KeyVal <> 27 THEN GOTO 60       'keep 'DO'ing until escape is not pressed ESC



750 END
