3D STUDIO VIZ R2 TRAINING CURRICULUM
Animating a Heliplane


  1. CREATING THE BACKDROP (cont'd)

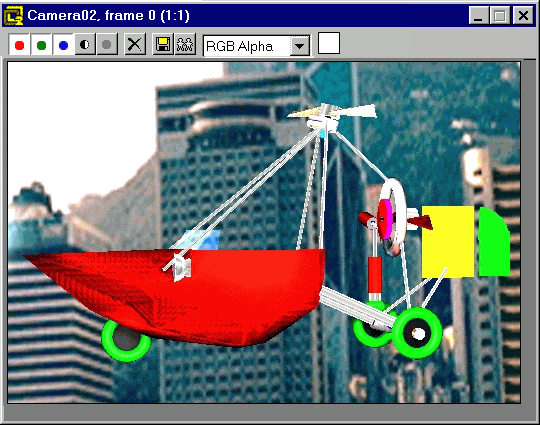

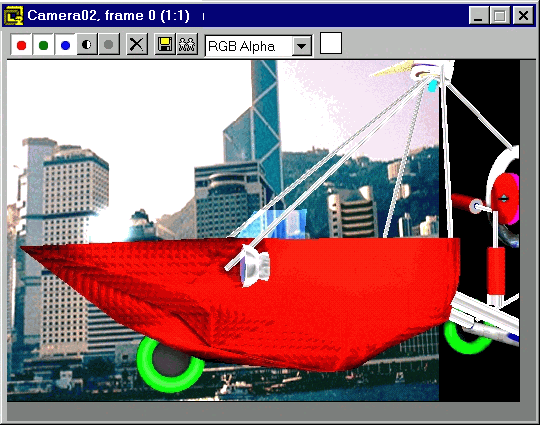

    1. The angle in the 'Top View Port' is required to eliminte the glare from the OMNI lights just above the hood of the HELIPLANE, below left!
      glareglare
    2. camera2viewThe HELIPLANE should fill most of the 'CAMERA02 View Port', right.

    3. position
      position
      animation Turn on the animation button.
    4. timeslider1 Set the Time Slider to 1/100.
      NOTE:
      Use the same principals as shown in section 2 1-4 page 12.
    5. With animation on and BACKGROUND activated, using either 'Front View Port' or 'Top View Port', move the BACKGROUND from LEFT to RIGHT, see right.
      NOTE:
      The yellow grid represents the 'HIERARCHY PIVOT' pivot on the PIN.
