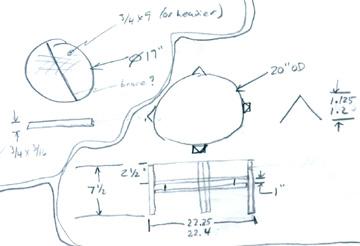

| Here are the dimensions for the coal rack (that the basket sits on) and the drip/ water pan and baffle. You can see that my original plan was to use angle iron for the legs of the pan but decided to change to square tube... because it was there! |
| A Few Engineering Sketches of the Magnum |

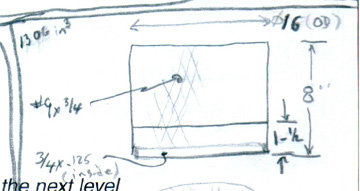

| Coal Basket Dimensions and Calculations for volume of existing coal baskets I have. |
| Use of the information and pictures on this page is strictly prohibited without the express written consent of the Webmaster. |
 |
 |
 |
 |
 |

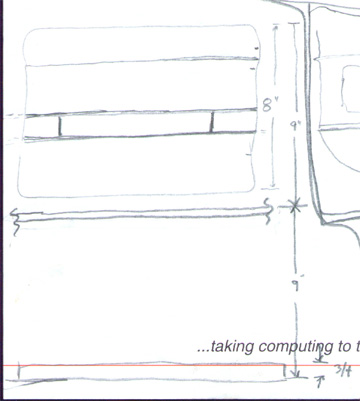

| Here are the dimensions taken from the barrel and kettle base when I was figuring out how tall to make the legs for the drip/water pan. The doulbe line shown in the righ hand scetch represents the bead on the bottom of the barrel. The rectangle shown 8" tall is the bottom opening (also shown in the left hand sketch.) |
