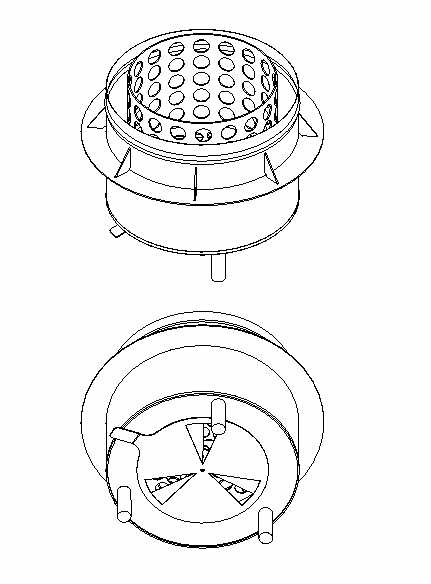

| This sketch shows the firebox by itself in greater detail. I've come to discover that the center of the damper is far too weak with the 3 openings coming so close together in the center. I am upgrading this design by making the damper opening much smaller and keeping them away from the center of the piece. |
| CAD Sketches of the Super ECB |
 |

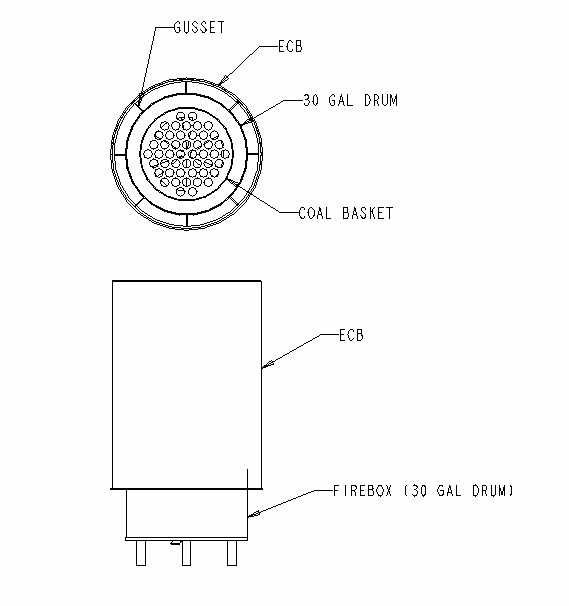

| This diagram shows the SECB concept. (The expanded steel I used for the coal basket is represented by the perforated material in the sketches.) If you look closely you can see the inside of the damper looking down into the firebox. |
