KF4JQD's Doublet Antenna |
 |

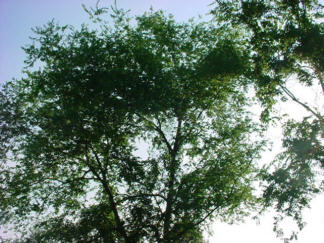

| This tree is where the antenna is at. This is the same tree that help my 75m Bazooka Antenna |
 |
 |
 |
| Fig1 |
| Fig3 |
| Fig2 |

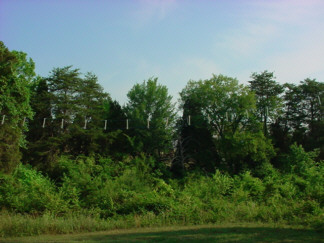

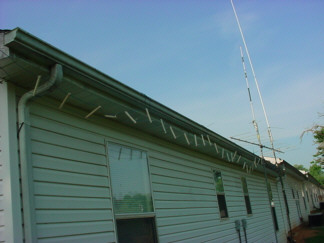

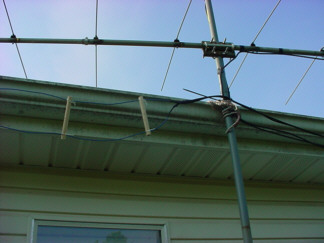

| In fig 1, it shows the balance line across the yeard. Fig 2, shows the balance line meeting up to a pair of coax cables. At this point, the braids of the coax are tied together but NOT grounded. I did add a ferrite core here too. In Fig 3, it shows how I ran the balance line to my apartment. I used nylon-UV protected wire ties. They just hang there like Christmas lights. On the far end is my neighbor's apartment. She can't see the line out of her window! |
 |
