| Compressing of product / air mixture between the tool rings and the grinding baffle. |

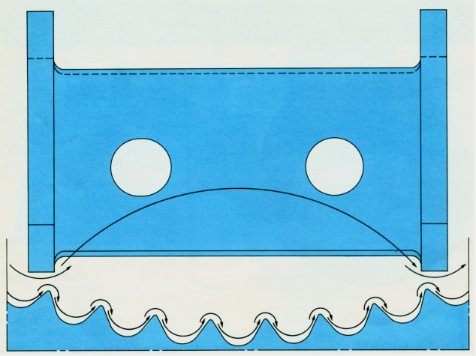

| Compressing and expanding of product / air stream between the grinding elements and the brinding baffle, as well as within the profiles of the grinding bafle. |

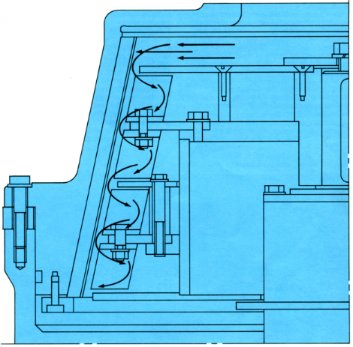

| The rotor is equipped with 2 tool rings which have 2 rows of grinding elements each, locate above and below the rings. Stator is fitted with a profiled grinding baffle on the side. The space created between the rotor and the grinding baffle forms the grinding gap. Fotor and Stator and machined cone-shaped at an angle of 12 degree inclined towards the vertical axis. This arrangements permists setting of the material to be ground. For optimal fine grinding the speed is approximately 123 m/s. |

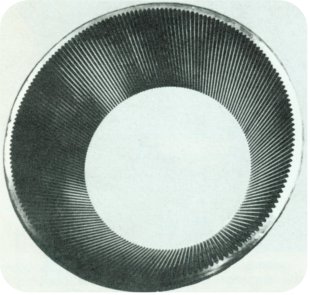

| Stator |
