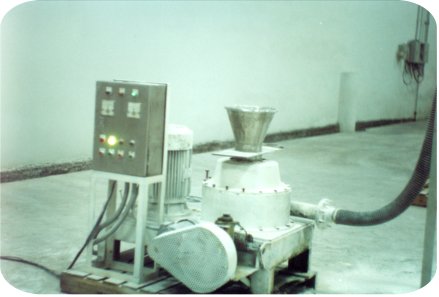

| Azima Mill |
|
 |
 |
| AIR SHOCK WAVE GRINDING HIGH SPEED 4,500 RPM With out sive internal the machine. The fineness of product is adjusted by gap between grinding element and grinding baffle |

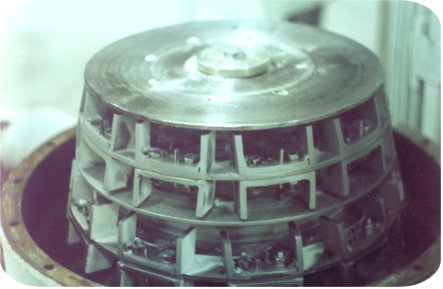

| Rotor |
| _________ |
 |
Appications Broken-milled rice Pass 100 mesh screen at 500 kg/Hr Over size from rice flour Pass 100 mesh screen at 500 kg/Hr Rice bran chaff and husk fine rince bran chaff Activated Carbon Input particle size : not large than 5 mm. |

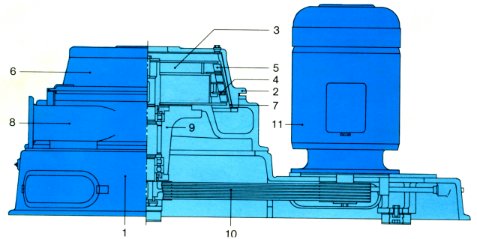

| Construction of mill |
| Azima MIll 1.Basic Housing 2. Setting of grinding gap 3.Conical rotor 4.Tool rings 5.Grinding elements 6. Stator 7. Grinding elements 8. Stator 9. Bearing casing 10. V-Belt drive 11. Drive motor |
 |
