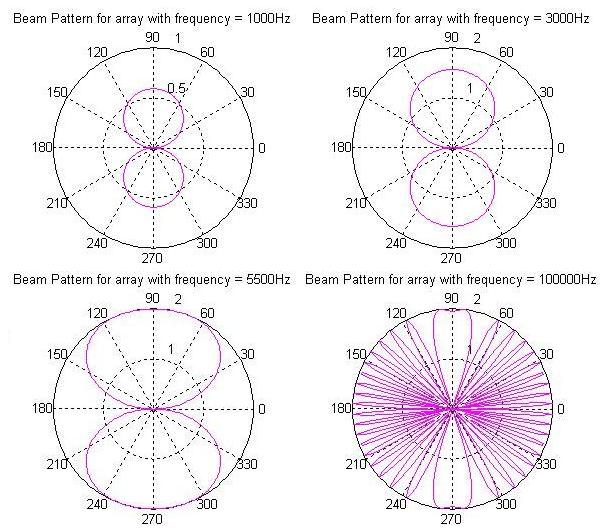

| The following is a sound source diploe with beam pattern and particle displacement plots. Note that once the frequency reaches 6KHz side lobes and a distorted main lobe develops. The dipole size chosen for such a patten is .033 m. There are three particle displacement plots to display an angled side view with a countour curtain, a side view of the two pulses, and a top view. | ||||||||||||||||||
|
||||||||||||||||||
| Click for the code | ||||||||||||||||||
|
||||||||||||||||||
| To view the particle displacement plots at a frequency of 1000 Hz click the button below: | ||||||||||||||||||
|
||||||||||||||||||
|
|
|||||||||||||||||
