| FUTURE PROJECTS |
|

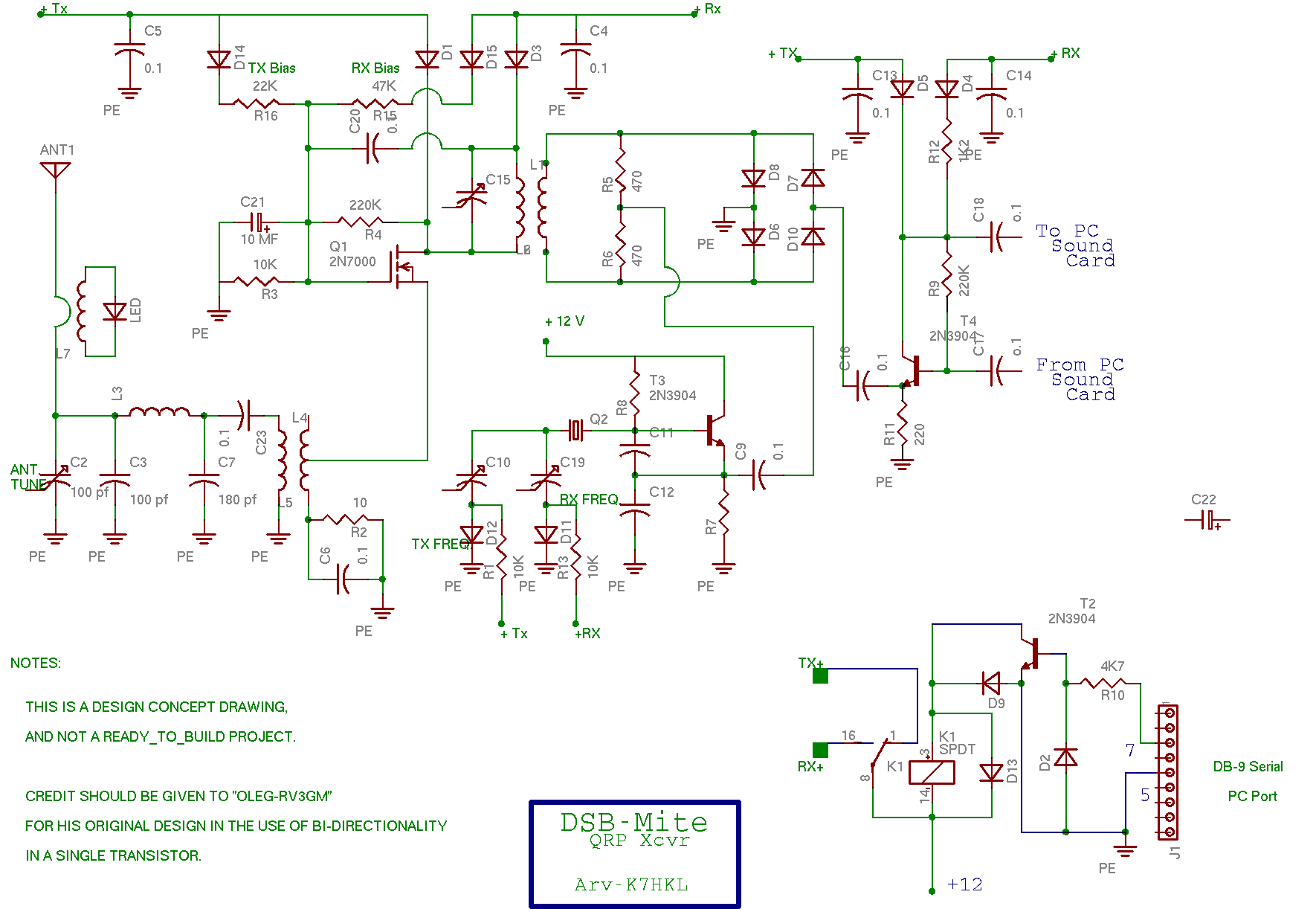

| DSB-Mite SDR QRP Transceiver |
The
DSB-Mite is a minimalist transceiver, designed specifically for direct
connection to the sound card of your computer. As a rudimentary
SDR (Software Defined Radio) it supports PSK, MSK, RTTY, CW, and most
any other software based protocol you would like to use. |
| SSB-Mite
Transceiver |
Evolution of the DSB-Mite into a
stand-alone QRP SSB Transceiver using bi-directional amplifier stages
and easily available parts. Computer connection capability has
been preserved from the original DSB-Mite design. This is a
single-band design that may be built for any one of several bands. |
| As
a continuation of the LF-Pro Receiver for 160 to 190 KHZ, this design
will complete the construction of an integrated station for the US LF
experimenters band. |
|

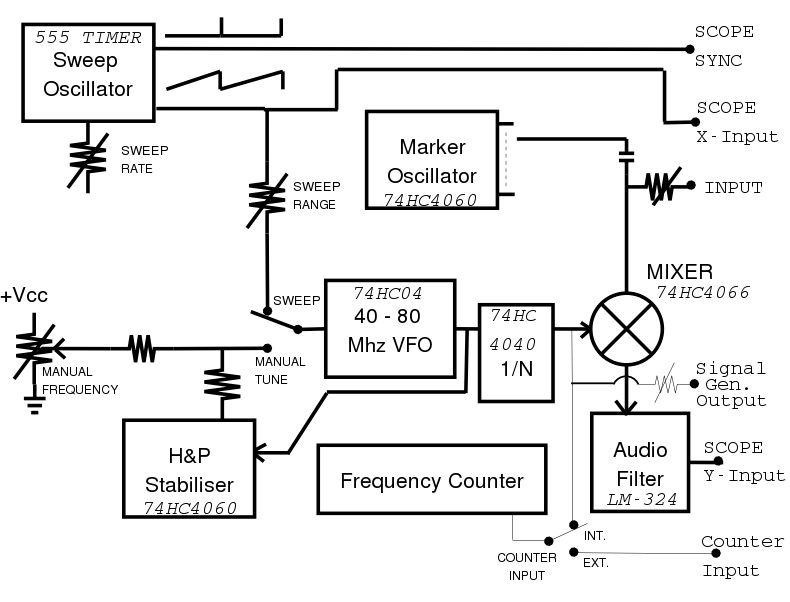

| Signal,
Sweep, Analyzer |
Signal Generator, Sweep
Generator, & Spectrum Analyzer for 60+ MHz down to AF |

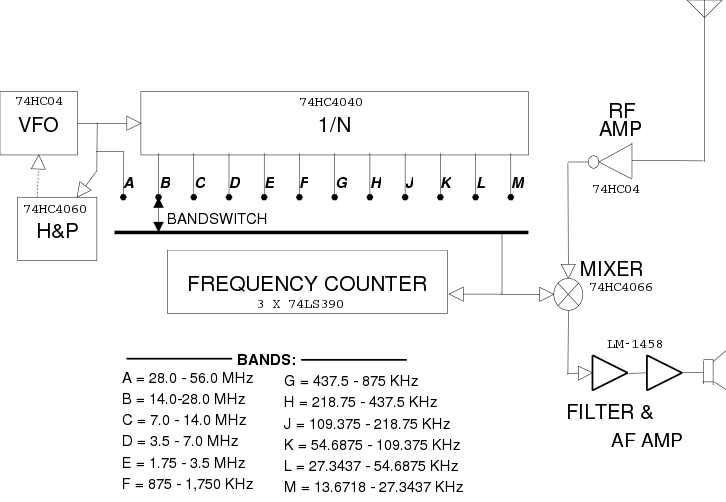

| Wideband
DC RX |
General Coverage Direct
Conversion receiver (60+ MHz down to VF). |

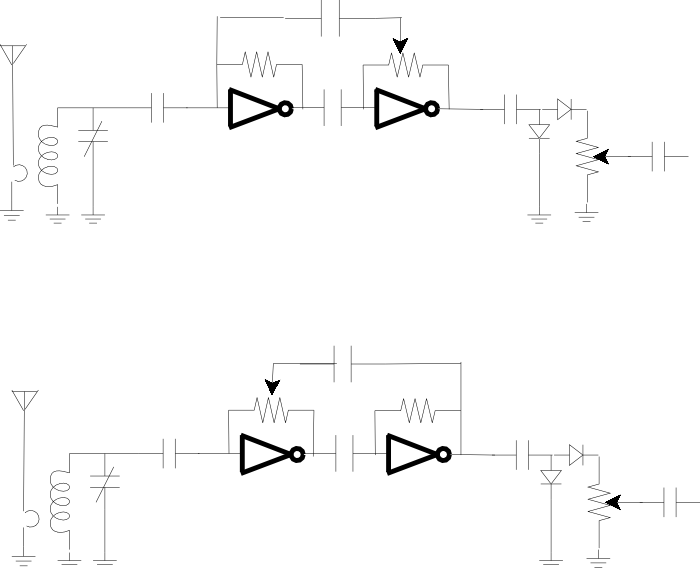

| 74HC04 Regen
RF Amp |
74HC04 Regenerative RF Front-end
for HF RX |
| 74HC4066 HF Mixer |
74HC4066 Switching Mixer as part
of DC RX |
