Dagger Ovation making a splash
|

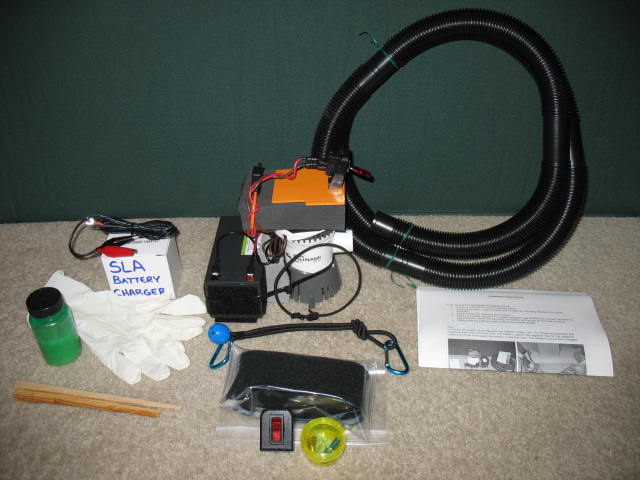

solo bilge pump kit - $159
|

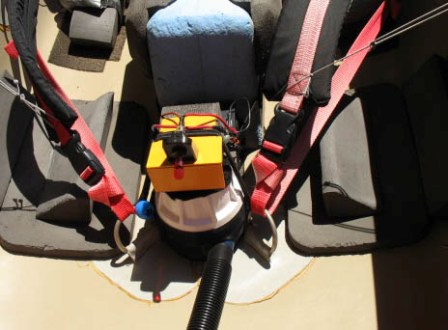

Viper 12 dipping in for a
|
Control the water in your boat with an electric bilge pump kit for $159 plus $21 shipping. The kit is assembled to make it simple to install with the step by step instructions. Review the parts list to assemble the bilge pump unit without the expensive need for waterproof connections making it an economical bilge pump kit. The bilge pump switch is not waterproof and the 12v sealed lead acid battery is exposed to water with no loss of performance. |
| Part No | Description - Geocities Website | Price |
| 1 | Attwood T1200 Electric Bilge Pump | |
| 2 | 3.4 Ahr 12v SLA battery & AC 2-stage charger 500 mA w/ alligator clips | |
| 3 * | 6' of 1.125" ID marine bilge hose (colors: white or black)* | |
| 4 | Toggle Switch (plus a spare rocker switch) | |
| 5 | Fuse Holder & 5 amp mini fuse | |
| 6 | 5' of 2" wide sticky back Velcro (for attaching components) | |
| 7 | Block of minicell foam & electrical divider plate | |

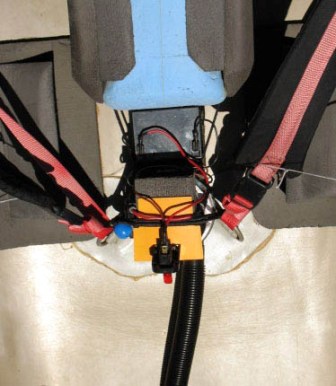

| 8 | 12" loop bungee cord (for securing the bilge pump) | |
| 9 | 2 mini carabiners (attaches to Item 8) | |
| 10 | Connectors (male & female) for 14 - 16 gauge wire | |
| 11 | Performix Liquid Electrical Brush-On Insulation on all connectors | |
| 12 | 17" of 1/8" bungee shock cord (restraining the outlet end of hose) | |
| * Order white hose or 4' of black hose & take $10 off Solo Bilge Pump Kit | $159.00 | |
Questions about the Parts List: Q20 - Q21
| Attwood
V-series: (out of stock) |
|
| Attwood
T-Series: (primary) |
|
|
We started out using the Attwood V-series electric bilge pumps, and we recently started filling orders with the Attwood Tsunami T-series pumps. Currently, we do not have any Attwood V1250's. We have 2 Attwood V500s in stock. We will be transitioning to the T1200 as the primary bilge pump for our new orders. When an order is placed, you'll receive a confirmation email with the model type you'll be receiving.
The Attwood Tsunami T-series is a very good electric bilge pump with a corrosion resistant body with watertight seals and waterproof tinned wiring for better performance. The T-series has an improved permanent magnet motor with composite brushes and lubricated bearings. It has a double filter base that resists clogging. The core cartridge is quickly removed by depressing a tab and twisting the unit for easy cleaning, maintenance, and replacement. It draws only 3.25 amps to run the pump which is only a slight increase over the V1250. The pump has a high impact polyester impeller and a stainless steel shaft. The Tsunami pumps have proven to be very smooth and quiet running pump. The Tsunami pumps are compact units, so it fits into tight spaces. The T1200 is 3.25" dia x 4.5" high with an 1.125" outlet diameter, and the T500 is 2.875" dia x 3.75" high with a 0.75" outlet diameter.
Go to the Order Form |
Unavailable for orders: |
10/10/09 - 10/18/09 |
|
|
|
|
|
Solo Bilge Pump Kit $159
|
Portable Bilge Pump $125
|
Deluxe Bilge Pump Kit $255
|
Tandem Bilge Pump Kit $285
|
|
|

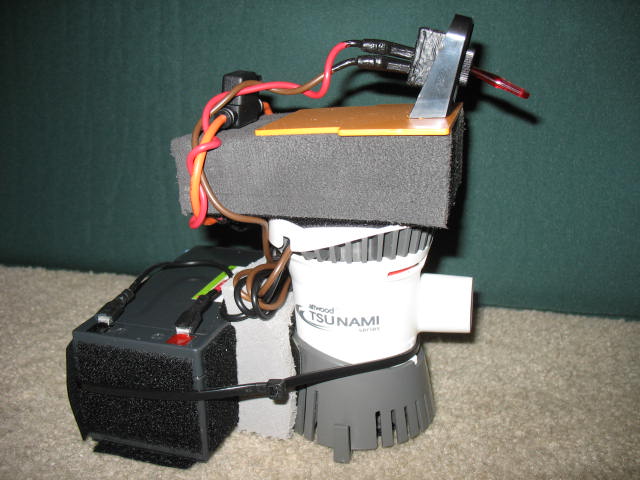

| Solo Bilge Kit $159 + $21 S&H |
|
|
This is the most popular electric bilge pump kit. The best features of the Attwood T1200 bilge pump are the light weight, the pumping capacity, and the low 3.25 amperes required to run the pump at a rated 1200 gallons per hour. The Attwood T1200 cranks out 16.0 gallons per minute (1200/60*.8) using 80% efficiency with a foot of head at the discharge outlet. This translates to less weight, to faster discharges, and to longer run times than other brand bilge pumps, such as, Rule, Mayfair, and Whale. The 3.4 Ahr SLA battery will run the bilge pump for 38 minutes before needing to be recharged (discharging 60% of capacity). The optional high capacity 5.0 Ahr SLA battery (add $5 to order) will run the bilge pump for 55 minutes before needing to be recharged (discharging 60% of capacity). The high capacity SLA battery is recommended for multi-day adventure trips. On adventure trips carry a spare SLA battery for a backup power source. The placement of the Attwood T1200 pump along the centerline of the boat will leave less than 2 quarts of water in the boat. If you run Class 3+ or lower whitewater rivers, this kit will meet your bilge pumping needs. For reliability the bilge pump has an in-line 5 amp mini fuse. The kit includes the following items, the assembled pump, 6' marine bilge hose, a 2 stage SLA battery charger with alligator clips, installation instructions, bungee cords for securing the pump & hose, attachment velcro, spare rocker switch, spare connectors, a spare 5 amp mini fuse, 1.5 oz of adhesive, gloves, & applicator sticks.
 |

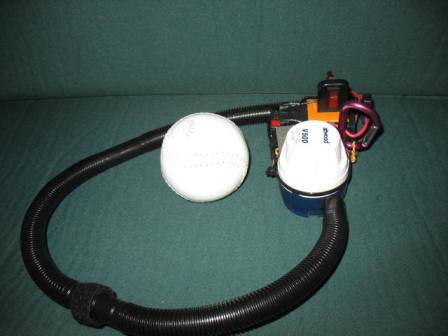

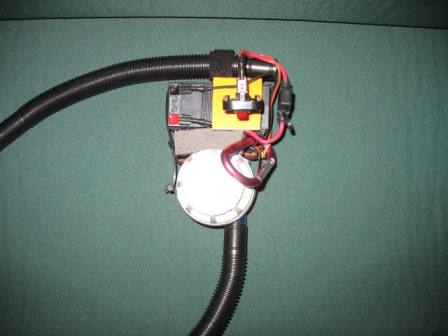

| Portable Bilge Pump Kit softball shown for sizing |
 |

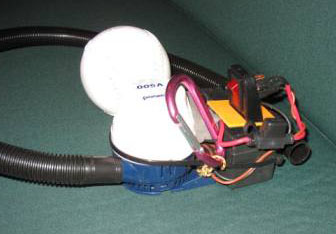

| Portable Bilge Pump Kit - $125 + $18 Shipping |
This pump is suited for a safety boater, as safety equipment for an adventure trip, and for a whitewater paddler. The portable bilge pump kit utilizes an Attwood V500 bilge pump with a 3' hose, rocker switch, and powered by a light weight 1.3 Ahr SLA rechargeable battery (battery weighs about 1.3 lb). A great feature of the Attwood V500 bilge pump is the extremely low 1.4 amperes required to run the pump. The bilge pump, battery, and switch are assembled as a unit to be easily carried in your boat. This portable bilge pump is intended to be a safety device to help your fellow paddler or as a portable bilge pump for your own boat. The portable bilge pump could be quickly placed in a swamped kayak or swamped whitewater canoe pumping 7.5 gallons per minute. The bilge pump will run 30 -35 minutes continuously removing a total of 225 gallons of water. The assembled kit weighs about 2 pounds and comes with a carabiner for securing it in your boat. Also included in the kit is a 2 stage SLA battery charger with alligator clips. The SLA battery can be recharged at least 300 times. The size of the assembled pump is slightly bigger than a softball. The portable bilge pump could be made permanent with a little ingenuity, it is best suited for a sea kayak, recreation kayak, or a whitewater canoe used on Class 2+ whitewater rivers. As a safety device, the portable unit could be used on any type of river to pump water out of a swamped boat. This portable bilge pump kit comes ready for use with the battery fully charged, just clip it into your boat and you're ready for action with no installation required. This portable pump is very versatile and you will not find another website offering this exclusive item.
|
|

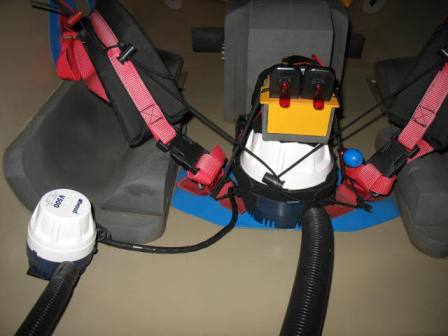

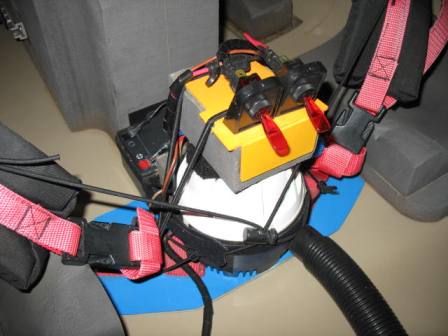

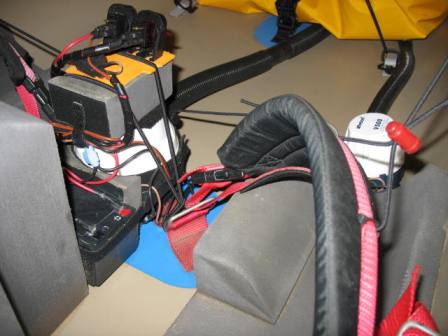

| Deluxe Bilge Pump Kit $255 $30 Shipping Special Order |
This model features two bilge pumps with 2 switches, an Attwood T1200 and an Attwood V500 soak up the water in quick times. This is the model for the least amount of water after a pumping. The placement of the Attwood V500 pump 8-10" off the centerline of the boat will leave slightly less than 1 quart of water in the boat. If you run Class 4 whitewater rivers or you are interested in running as dry as possible, choose the deluxe bilge pump kit for faster pumping and for dryness. Each bilge pumps has it's own switch for independent or dual operations. The kit also includes a 2 stage SLA battery charger with alligator clips. For reliability both bilge pumps have in-line fuses, the Attwood T1200 has a mini 5 amp fuse and the Attwood V500 has a 2 amp mini fuse.
This is a special order item that is custom built when an order is received and will be shipped in 10-12 business days.
|
|

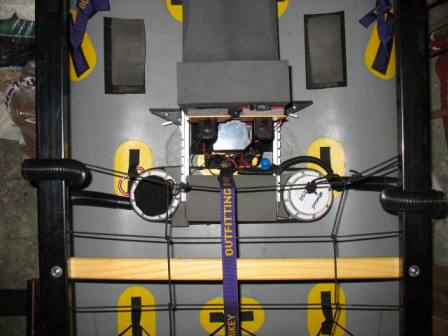

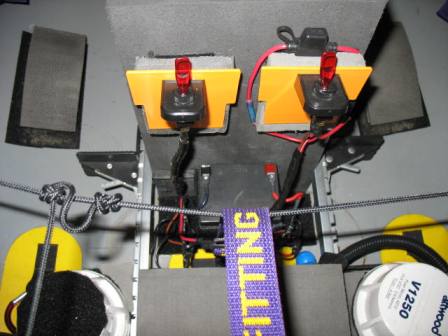

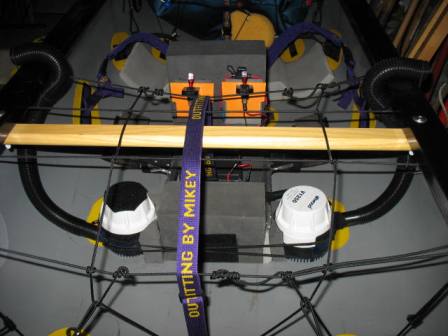

| Tandem Bilge Pump Kit $285 $33 Shipping Special Order |
This model features two dual Attwood T1200 bilge pumps with 2 switches. These two pumps will keep the water out of your tandem whitewater canoe while maneuvering through Class IV rapids, most whitewater rivers are no match for these thirsty dual electric bilge pumps. In about 2 minutes of pumping, you will remove about 64 gallons of water from your tandem canoe. The single SLA battery is rated at 5 Ahr which will run two T1200s continuously for about 47 minutes (to extend battery life, it is recommended to limit the run time to 30 minutes before recharging the SLA battery). Each bilge pumps has it's own switch for independent or dual operations. The kit also includes a 2 stage SLA battery charger with alligator clips. For reliability both bilge pumps have in-line 5 amp mini fuses.
This is a special order item that is custom built when an order is received and will be shipped in 10-12 business days.
Go to the Order Form |
Unavailable for orders: |
10/10/09 - 10/18/09 |
1) Should the bilge pump system be waterproof?
2) Do you get shocked when water submerges the exposed battery terminals?
3) How long does the sealed lead acid (SLA) battery last before it needs recharging?
4) How long does it take for the 3.4 Ahr SLA battery to recharge?
5) What is the life of the SLA battery? & replacement cost?
6) Can you recycle a SLA battery?
7) Do you need to be careful of shorting the battery terminals?
8) What is the weight of the bilge pump system?
9) What are the dimensions of the assembled bilge pump kit?
10) Will the electric bilge pump(s) get all the water out of the canoe?
11) Does the Attwood electric bilge pump make much noise?
12) Will one Attwood T1200 bilge pump system be enough for my canoe?
13) Have you experienced reliability issue with the bilge pump system?
14) Trouble-shooting electric bilge pump, you flip the switch and nothing happens?
15) Does the bilge pump system look like a retrofit installation?
16) Could the bilge pump system be installed in a recreation kayak or a sea kayak?
17) Could the bilge pump system be installed in a flat bottom fishing boat?
18) Could the bilge pump be occasionally used in salt water environment?
19) Any reason you do not use a thru hull fitting rather than over the gunwale discharge?
20) Why do you list all of the components to build the kit?
21) How many suppliers are used in the making of the electric bilge pump kit?
22) I've decide to build my own bilge pump kit, what tools & equipment will I need to assemble the kit?
23) How long does it take to install the bilge pump kit?
24) What is the preferred way to order a canoe electric bilge pump kit?
25) How long will it take to get my order and what type of payments do you accept?
26) What type of maintenance will my electric bilge pump require?
27) What is the address & website of Attwood Electric Bilge Pumps?
28) Who is jtkcanoes?
29) Has everyone enjoyed the benefits of these products?
30 Why does it take so long to ship special orders?
31) Should I be concerned about making payment with Paypal?
32) Can you mount the bilge pump kit behind the pedestal?
33) Do you provide any units with a nickel battery?
34) My Attwood T1200 bilge pump rattles when shaken, should I be concerned?
35) My SLA charger shows a green light all the time, do I need a new one?
36) I'm not using my bilge pump for the next several months, how should I store it?
37) Do you have a question you want added to this section?
Benefits of building, buying, and having a Bilge Pump Kit
Questions and Answers: | Top of Page |
1) Should the bilge pump system be waterproof?
The bilge pump system can be exposed to water (in fact, fully submerged). Some bilge pump websites states that the battery must be in a dry box and use a waterproof switch and waterproof connections. It is not a design requirement to keep all components dry. The battery terminals, switch, and connections are all exposed to water in my system. The bilge pump system has performed flawlessly for 4 years and counting. When the kit is frequently used in salt water you should use a dry box to protect the switch, battery terminals, & connections from reacting with the corrosive water. In researching bilge pumps on Cboats.net & BoaterTalk.com, it has made me contemplate using a waterproof bilge switch. If you want to be fail-safe, consider installing a waterproof switch. In my kits I'm using a standard switch because I have not had a single switch failure. The bilge pump kits will include a extra switch for reliability. The switch can be easily replaced by loosening two phillips screws and disconnecting two wires with quick connectors. Also see Q 18
2) Do you get shocked when water submerges the exposed battery terminals?
No, there is not even a slight tingle. An insignificant amount of current is consumed by the water when submerging the sealed lead acid battery terminals. The user does not experience any sensations or loss of bilge pumping capacity when the pump and battery are underwater.
3) How long does the sealed lead acid (SLA) 3.4 Ahr battery last before it needs recharging? back to questions
It will last for several river trips, but it is best to short cycle the battery (charging when only partially discharged). The pump would run continuously for about 1 hr - 5 minutes, that's about 65 times averaging 1 minute. It is advisable to only discharge the battery 40% - 50% and a maximum discharge of 60%. The SLA battery should be recharged every 3-4 months for peak performance otherwise permanent loss of capacity might occur as a result of sulfate buildup. So if you use the pump only in the summer months, you would need to charge the SLA battery twice in the off seasons. To prolong battery life without charging, store the SLA battery in a cool and dry location (a refrigerator is cool but not dry).
 |
4) How long does it take for the 3.4 Ahr SLA battery to recharge? replacement cost of charger?
The 3.4 Ahr SLA battery will take from 1 - 4 hours with the supplied 12 volt 500 mA 2 stage SLA battery charger and it all depends on how long the electric pump was operated. If you have to charge for more than 4 hours you are over discharging the battery.
The 4.5 Ahr SLA battery will take from 1 - 6 hours with the supplied 12 volt 500 mA 2 stage SLA battery charger and it all depends on how long the electric pump was operated. If you have to charge for more than 6 hours you are over discharging the battery.
The charger provided is made specifically for a SLA battery with a .5 Amp charging current. The 2 stage SLA charger has a red & green light built into the unit. While the battery is charging the light is red, it will turn green when fully charged so you do not overcharge the SLA battery. Some bilge pump builders use a 2 Amp automobile trickle charger for charging their battery. If you use a trickle charger, you will shorten the life of the SLA battery by overcharging. Note that overcharging a sealed lead acid battery can permanently damage the battery, or reduce the capacity of the battery. A 2 stage SLA charger cost about $25 including shipping. Be careful connecting the charger to the battery, if the charger leads are connected backwards you will destroy the charger (always connect red(+) to red(+) and black(-) to black(-)).
5) What is the life of the SLA battery? & replacement cost?
The battery will last for 3-4 years if well maintained with short discharging cycles. The SLA battery has a durable case and holds a charge much longer than the light weight rechargeable batteries. The battery can be recharged 300 - 400 times. A SLA battery only loses about 1.0-1.25% per week of it's capacity or loses 12-15% in 3 months; SLAs have the lowest self-discharge rate of any rechargeable battery (higher temperatures promote greater self-discharge). Very hot conditions (greater than 120 degrees, F) will shorten a SLA battery's life so leaving a battery in a sunny parked car should be avoided. SLA batteries are one of the most widely used rechargeable battery types in the world and do not suffer from memory effect. SLA batteries virtually require no maintenance and can be used in almost any position. The replacement cost for a SLA battery is about $25.00 including shipping.
Proper Sealed Lead Acid Battery Care
First, when the SLA battery has powered your bilge pump on a river trip, soon after getting off the river, recharge the SLA battery to store it with a full charge. If a SLA battery is left with a low charge for a very long period of time, most likely the battery will be unchargeable. Once a sealed lead acid battery has completely lost its charge it cannot be recharged. If you plan on storing for a long period of time, it is recommended that you periodically charge it up to full capacity.
Second, if you are storing a SLA battery, make sure the battery is placed in a mild-temperature environment. If placed in a hot environment, the battery may overheat and cause a loss of battery capacity.
6) Can you recycle a SLA battery? back to questions
Never toss SLA batteries in the trash, recycle them. You can find a location near you that participates in the rechargeable battery recycling program.
Copy this link into your web browser: Rechargeable Battery Recycling Corporation (RBRC) - Call2Recycle
http://www.rbrc.org/call2recycle/dropoff/index.php
and enter your city & state to find the nearest location.
7) Do you need to be careful of shorting the battery terminals?
Yes, this is indeed a 12-volt battery. It could catch on fire and destroy the battery if the battery terminal wires were accidentally connected together. This device is very safe but you need to thoughtfully locate electrical connections and use an in-line fuse near the positive battery lead. Wiring splices and terminal connections should have crimped connectors and apply liquid electrical tape to all of the connections. The electric bilge pump is an energized device and the SLA battery should be handled with respect. When the battery is removed from the boat, place electrical tape over the battery terminals to prevent electrical arcing by accidentally touching a metal object across both terminals.
8) What is the weight of the bilge pump system?
The 3.4 Ahr SLA battery weighs about 3.2 lbs and the pump & accessories weighs another 1 lb for a total of 4.2 lbs. An optional 4.5 Ahr SLA battery is available that weighs 4.5 lbs and the pump & accessories weight 1 lb for a total of 5.5 lbs. The standard 3.4 Ahr SLA battery will run about 45 minutes before charging and the high capacity 4.5 Ahr battery will run about 65 minutes before charging. If you're river trips are 1 to possibly 3 days, then the standard battery will do the job. The price is $5 more for the 4.5 Ahr SLA battery. I would recommend the standard 3.4 Ahr when you use the pump for weekend trip, but when you are doing week long adventure trips go with the high capacity 4.5 Ahr and consider taking a spare 3.4 Ahr SLA battery.
9) What are the dimensions of the assembled bilge pump kit? back to questions
The solo bilge pump kit dimensions are height=7.5" (including the switch body), width=5.25" (battery width), depth=8" (battery+pump).
The portable bilge pump kit dimensions are height=4.0" (including the switch body), width=4.0" (battery width), depth=5.5" (battery+pump).
10) Will the electric bilge pump(s) get all the water out of the canoe? The short answer is almost.
11) Does the Attwood electric bilge pump make much noise? back to questions
It is fairly quite, especially when used on moving water. You can not hear the pump running in a boat that is just a few feet away.
12) Will one Attwood T1200 bilge pump system be enough for my canoe? See Photos of installed bilge pump kits
13) Have you experienced reliability issue with the bilge pump system?
Only two minor problems have occurred.
14) Trouble-shooting electric bilge pump, you flip the switch and nothing happens? back to questions
Step 1) Check for a disconnected battery connection (#1 reason).
Step 2) Is the battery charged?
Step 3) Check for a blown fuse, and replace with new 5 amp mini fuse.
Step 4) Check all connections for loose fittings.
Step 5) Check the switch with a multimeter for continuity.
Step 6) Connect the bilge pump to a new 12 volt battery for testing.
Step 7) Send the pump back to the Manufacturer or buy a replacement pump.
Manufacturer warranty offers, if any, are at the discretion of the manufacturer. We are not an authorized dealer. We are a reseller. If you have a problem with the pump after using the unit, you will need to contact the manufacturer under any warranty they may offer. Attwood Contact Info
15) Does the bilge pump system look like a retrofit installation? See Photos of installed bilge pump kits
My emphasis is on a functional pump that is safe, easy to use, & economical, and not as much on aesthetics. The solo bilge pump kit is placed in front of the pedestal utilizing the thigh strap d-rings for ease of installation and access to the pump housing. It can all be disassembled and put into another boat without any obvious markings. The tandem bilge pump kit is placed close to the mid point of the canoe and offset from the centerline to enhance the water removal. Other bilge pump installer put the pump inside the pedestal, this is a labor intensive undertaking and some pedestals are not strong enough for craving out room for the bilge pump housing.
16) Could the bilge pump system be installed in a recreation kayak or a sea kayak?
Yes, it could be used in a recreation kayak or a sea kayak. The outlet hose would need to be attached to a thru hull fitting. This would require a drilled hole thru the kayak's side wall shell (well above the water line) for attaching the thru hull fitting. A mini-cell foam block would need to be glued to the bottom of the kayak for support of the pump and battery. The size of the pump could be reduced to an Attwood T800 Tsunami which uses a 3/4" inside diameter hose.
17) Could the bilge pump system be installed in a flat bottom fishing boat? back to questions
Yes, it could be used in a fishing boat. The outlet hose would need to be attached to a thru-hull fitting. This would require a drilled hole thru the fishing boat shell (well above the water line). Then a thru the hull fitting would be secured to the boat shell. A mini-cell foam block would need to be glued to the bottom of the boat for support of the pump and battery. The bilge pump switch could be mounted on or near the dash board. This bilge pump kit would be slightly more expensive.
18) Could the bilge pump be occasionally used in salt water environment? Top of Q & A
Yes, it is recommended that the bilge pump and all connections including the battery terminals be flushed with tap water after the trip. This will keep down corrosion and premature failure of the pump. If you paddle on salt water frequently, you should invest in a dry box to house the battery & mount the switch on the outside surface of the dry box away from the corrosive effects of salt water. You will have to drill two holes in the dry box one for the bilge pump wires and another for the switch mount then apply marine goop in the holes (inside & outside) to reseal the box.
19) Any reason you do not use a thru hull fitting rather than over the gunwale discharge? back to questions
There are three reasons to consider:
A) The bilge pump kit is made to be removable. When you sell your old boat you can take it out and no explanation about a thru hull fitting. Then reinstall the bilge pump kit in your new boat.

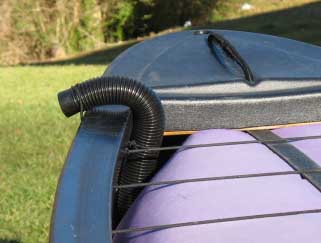

B) You can view the water being pumped out of the over the gunwale discharge hose. Viewing the discharge hose is helpful when you're trying to get the last gallon of water out of the canoe.
C) A good quality thru hull fitting is about $10 and the boat owner must have a 1 3/8" diameter hole saw ($12) plus you will need a special wrench to tighten the nut ($12 for curved jaw vise-grip). My objective is to make an economical electric bilge pump kit.
20) Why do you list all of the components to build the kit? View Parts List
To share information with the boating community, this website was developed for boaters who are seeking ideas on how to build & install an electric bilge pump kit. This gives the DIY person the ability to make the kit. It will take an estimate of 6-8 hours to research, purchase, & assemble all the items in the parts list. There are unique details to assembling the bilge pumps that are learned through the experience of building lots of bilge pump kits.
21) How many suppliers are used in the making of the electric bilge pump kit? back to questions
It takes 6 different suppliers.
1) Electric bilge pump supplier - Internet
2) Marine bilge hose supplier - Boater's World
3) Electrical components - wires, fuse holders, & connectors supplier - Electrical Supply Co
4) SLA battery & charger supplier - Internet
5) Minicell & Contact Cement - local boat outfitters
6) Plastic baseplate & bungee cord supplier - Home Builder's Warehouse
22) I've decide to build my own bilge pump kit, what tools & equipment will I need to assemble the kit?
You'll need the following:
A) Work shop with a work bench for assembly (an area that can be well ventilated)
B) Stand mounted electric scroll saw for cutting the minicell
C) Drill for pilot holes & electric grinder
D) Multi-meter & Battery Tester - for checking switches, connections, & batteries
E) Crimping tool for connectors
F) Tape measure
G) Heavy duty scissors for cutting velcro
H) Dragon Skin for shaping minicell
I) Phillips screw driver & utility knife
23) How long does it take to install the bilge pump kit?
The kit is designed to be easy to install. The typical installation time for the Solo Bilge Pump Kit is about 1-2 hours. Installation time on the Deluxe Bilge Pump Kit will vary from 3-4 hours and Tandem Bilge Pump Kit will take 4-5 hours. So it take 1 to 5 hours to install the various Bilge Pump Kits. The bilge pump kits are shipped with step by step instructions, and suggests where to install the pump assembly and how to attach the outlet bilge hose. The base and one side of the battery are attached to the canoe with precut velcro for easy installation, and the pump housing is restrained by a bungee cord. The installation does require drilling two 1/8" diameter holes below the gunwale for restraining the outlet hose. See Installed Bilge Pump Photos
24) What is the preferred way to order a canoe electric bilge pump kit? back to questions
By making payment with your Paypal account (https://www.Paypal.com). If you do not have a paypal account, it will take 3-4 days to open and get a verified account. When placing your order with paypal, please make payment to jtkcanoes@yahoo.com and complete the order for an electric bilge pump kit by using the Order Form You will receive an email confirming the receipt of the order within 48 hours (check the top page for dates when unavailable for orders). I would encourage you to email me, jtkcanoes@yahoo.com, prior to placing an order with any questions about the ordering process or the bilge pump kit. Occasionally, there will be a special offer for those that email me prior to ordering. This will give me advanced notice that an order will be placed soon. Top of Page
25) How long will it take to get my order and what type of payments do you accept?
From the time we receive the order, it will take 6 - 14 business days to receive the product and federal holidays are observed. The bilge pump kit will be shipped within 2 -3 business days (unless the item is a special order) if you use paypal payable to jtkcanoes@yahoo.com. It is acceptable to pay by postal money order, and email me for payment mailing instructions. The order will be delayed when a postal money order is used, it usually takes 6-8 business days for processing the money order. The order takes 2-3 days to ship to eastern states and 4-6 days to ship to western states. The order will be shipped by UPS ground delivery with signature required. This assures me that the buyer receives the merchandise (and keeps the box from disappearing if you're unavailable at delivery). The items can only be shipped to the 48 contiguous states. We cannot shipped to Hawaii, Alaska, or Puerto Rico and no shipment to oversea addresses.
26) What type of maintenance will my electric bilge pump require?
It only takes a little effort to keep the bilge pump in great shape. First, apply dielectric grease (from Auto Zone or other car parts store) to the battery terminals 2-4 times a year. Second, charge the battery at least 2-4 times a year to keep the battery fully charged. Thirdly, occasionally open the bilge pump housing and clean debris from the inside housing and clean the propeller fins. Lastly, annually inspect the velcro attachments and if necessary, reapply glue to both mounting surfaces for secure attachment points.
27) What is the address & website of Attwood Electric Bilge Pumps? back to questions
Attwood Corporation
1016 N. Monroe Street
Lowell, MI 49331-0260
Phone: 616-897-2290
Attwood's website (T500 & T1200):
http://www.attwoodmarine.com/store/product/t500-500gph-12-volt
http://www.attwoodmarine.com/store/product/T1200-Tsunami-Bilge-Pump
Attwood Specifications & Details:
http://www.attwoodmarine.com/userfiles/store/product/files/990/69390-a-tsunami-bilge-eng.pdf
28) Who is jtkcanoes?
I am a whitewater canoeist living in southeast Tennessee. My wife and I have been paddling for over 10 years. We are members of three canoe clubs - TVCC, TSRA, & CCC. We truely enjoy the sport of whitewater canoeing and our electric bilge pumps have made the sport even more enjoyable. It keeps the water in the river and not in our boats. I have a fascination with electric bilge pumps and canoeing accessories. The bilge pump kits are meticulously assembled and the prototypes were thoroughly field tested before being added to this site. The exact bilge pump kits that are listed on this website are in our canoes. We have received only good comments about our products. The bilge pump kits have reliably pumped out our canoes for the past 4 years. The electric bilge pump will give you more confidence to try harder moves knowing that a crashing wave will be quickly pumped away.
29) Has everyone enjoyed the benefits of these products? back to questions
We have 100% satisfaction, the customers are enjoying the benefits in a variety of states: TN, NC, NJ, GA, MT, IL, ID, WI, & PA.
30 Why does it take so long to ship special orders?
Each special order is custom built for the customer, and sometimes we have a low stock of electric bilge pumps and SLA batteries. So it may be necessary for us to acquire the parts to fill the order. The solo & portable bilge pump kits are usually available for immediate order processing. When paying with paypal, our goal is to ship solo & portable bilge pump kits within 3 days of receiving the order, but occasionally an item might be temporary out of stock which could delay the order. If an order will be delayed, you'll get an email telling you when the order is expected to ship.
31) Should I be concerned about making payment with Paypal? back to questions
Paypal is probably the safest way to pay on line. Paypal would not allow jtkcanoes to use there services with unsatisfied customers. You have 45 days from the date of the transaction to open a dispute in the Paypal Resolution Center if the items you ordered are not received or not as described on this website.

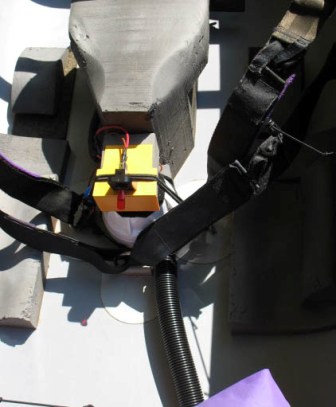

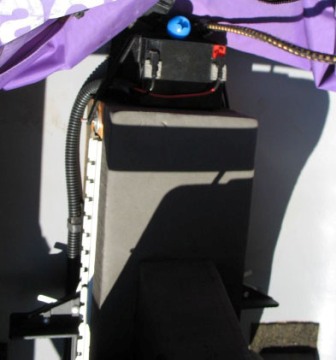

32) Can you mount the bilge pump kit behind the pedestal?
The bilge pump kits are designed to be mounted in front of the pedestal. It would be possible to mount the pump & battery behind the pedestal with some adjustments to our tiedown method. The switch would have to be mounted in some convenient spot for controlling the pump (30" of wiring is provided). There is loop velcro on the bottom & side of the battery and applying hook velcro on the canoe floor and using the supplied bungee cord the pump could be secured behind the seat.
33) Do you provide any units with a nickel battery? back to questions
We only use SLA batteries; the nickel batteries are expensive and they quickly lose a charge, my objective is to make an economical and reliable bilge pump kit. Both of these type of nickel batteries, NiCd and NiMH have shortcomings, making SLA batteries a better choice, in my opinion. Hot and cold temperature effect nickel batteries and while storing the nickel batteries they will lose a charge, SLA batteries work great in the summer or winter paddles, and stay highly charged in storage.
34) My Attwood T1200 bilge pump rattles when shaken, should I be concerned?
Steven Hovinga, a Technical Support Rep for Attwood Corporation, said the following:
"No, its nothing to worry about. There are little plastic points that guide the top and colored ring in place when the housing is sonic welded together and the tip of the guide vibrates off and gets trapped outside of the motor housing but behind the colored ring. It can't get into the motor so it only a nuisance rattle."
[email protected]
35) My SLA charger shows a green light all the time, do I need a new one? back to questions
It appears the charger is not working since the green light is on all the time. When the charger is connected to the SLA battery it charges only when the red light is on. You could have accidently hooked the charger leads backwards (black to red, red to black) this will destroy the unit. It is important to connect the charger correctly. Be sure to connect the terminals, positive (red) to positive and negative (black) to negative. I know this first hand because I have fryed a charger when I was not focusing on making the connections.
36) I'm not using my bilge pump for the next several months, how should I store it?
If you do not use the pump for several months, remove the pump and battery from the canoe. It is best to store the battery in a cool location (around 60 degrees, Fahrenheit) and cover the battery terminals with electrical tape. It is recommended to store the SLA battery with a full charge, so every 8 - 12 weeks recharge the battery for peak performance. Year round when the pump & battery are not in use, it is advisable to disconnect the battery leads. This will reduce the SLA battery discharge rate.
37) Do you have a question you want added to this section? back to questions
The Q & A section is for the readers benefit. Contact me at jtkcanoes(at)yahoo.com if you have question or you want something clarified, I'll review the suggestion & post it on the website.
Solo Bilge Pump Kit in a Mohawk Viper 12 |
Top of Page | ||
 |
 |
 |
|
Solo Bilge Pump Kit $159 |
looking back from the bow |

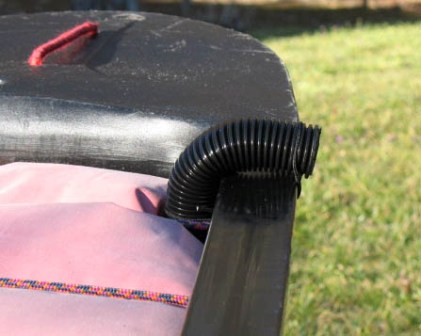

bow outlet hose |
|
Solo Bilge Pump Kit in a Dagger Ovation | Need 1 or 2 pumps? | ||
 |
 |
 |
|
Solo Bilge Pump Kit $159 |
battery behind the pedestal |
bow outlet hose |
Back to Product List |
Deluxe Bilge Pump Kit in a Solo Canoe |
Back to Q 12 | ||
|
 |
 |
|
Deluxe Bilge Pump Kit $255 |
Deluxe Bilge Pump Kit |
Detail of Switches & Battery |
Back to Q 15 |
Tandem Bilge Pump Kit in a Dagger Caption |
Back to Q 23 | ||
|
 |
 |
|
Tandem Bilge Pump Kit $285 |
Top View of Pumps |
Detail of Switches & Battery |
|
Copy the order form section, and paste into a new email. To copy the order form position the mouse to the left of the word "Order Form" and click & drag the mouse to just below the end of shipping address area, then press the keyboard Ctrl + c (copies highlighted area), go to your email that you are composing and press Ctrl + v (paste the data into email). Fill in the blank data and email to: jtkcanoes@yahoo.com
| Description - Geocities Website | Items Ordered |
| Available options - solo bilge pump kit order: Battery Size: 3.4 Ahr SLA or 4.5 Ahr SLA $5 extra Select bilge hose color: (B) black or (W) white |
|
| * Solo Bilge Pump Kit $159 + $21 shipping | |
| Portable Bilge Pump Kit $125 + $18 shipping | |
| Deluxe Solo Bilge Pump Kit $255 + $30 shipping Special Order - custom built when ordered |
|
| Tandem Bilge Pump Kit $285 + $33 shipping Special Order - custom built when ordered |
|
| Extra SLA 3.4 Ahr $25, Extra SLA 4.5 Ahr $30 | |
| *Take $10 off for 6' white bilge hose Total Amount: or $10 off 4' of black bilge hose (Solo Pump Kit Only) |
|
| Payment Method: 1-Paypal : 2-Postal Money Order | |
|
Be sure to email me your order form. Paypal is the preferred method of payment. Use www.paypal.com to make payment to: jtkcanoes@yahoo.com for 1-3 business days processing time (see note below for Custom Orders). If you prefer to pay by postal money order, it will take 6-8 business days to process the payment. Please email me for postal money order mailing instructions. When jtkcanoes receives the order, you'll get a reply email acknowledging the order & payment. The items can only be shipped to the lower 48 states. |
|
|
Special Orders will require 10-12 business days to custom build and process for shipping. |
|
Shipping Address: (UPS can not deliver to a Post Office Box)
| Name: | |
| Address1: | |
| Address2: | |
| City: | |
| State: | |
| Zip Code: | |
| Phone #: | |
| Email: | |
| Boat Type: |
Paying with PayPal:
Login, Click on My Account Tab - Add Funds - Add Funds from Bank Account (this will take 2-4 days to complete transaction if you are a new customer)
Login, Click on Send Money Tab - To: jtkcanoes@yahoo.com, Amount: enter purchase amount, For: Goods, click Continue, review transaction & submit
Email me the Bilge Order Form and jtkcanoes will reply acknowledging order and payment.
 |
https://www.Paypal.com |  |
| Q & A | Products | New Product | Pump Benefits | Installed Bilge Pump Kit |
| Related Links: | |||
| Ankle Blocks | Canoe Cart | Paddle Blade Protector | Photos: River & Hiking Trips |
 |
https://www.Paypal.com |
