| 88+ Suspension with 94+ 9000 Aero Brakes |

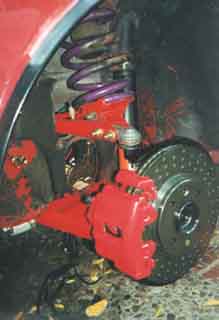

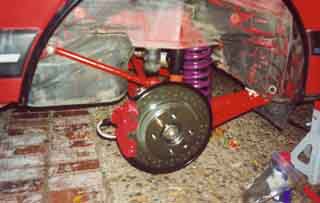

| all suspension parts are new, Intrax springs are 1 year old ( soon to be re-powderpainted ). Also shown are Koni shocks, SAS sway bars w/ poly bushings, boxed&sloted lower control arms, crossdrilled Brembo rotors in CAD black, and of course the Aero calipers. (not shown, SS brake lines &carbon fiber pads.)click to see the size difference between the stock 88+calipers and the Aero's.( well the templet anyhow). |
 |

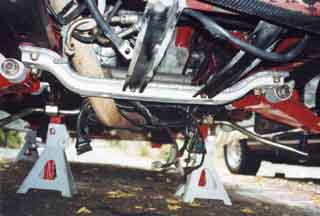

| Boxed cross member: I had this built by my older brother, it has a 1/4inch aluminum plate welded on top to stiffen it up. |
 |
| relocated rear axel, all in red powder coat. rear torque arms were cut and lengthend by 1cm, lower spring link mounts were flipped around to pull bottom of axel foward 1cm. click for more. |
| Suspension |
 |

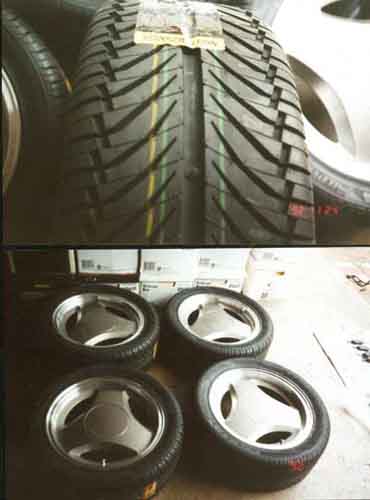

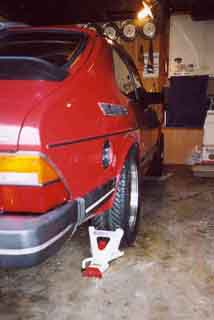

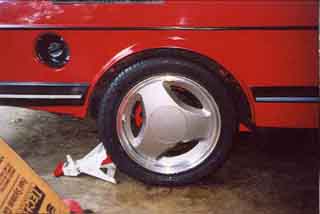

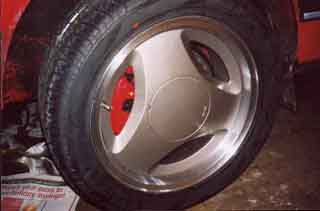

| New 16" Aero's with Kuhmo 712's 225/45-ZR16 89W. these things look killer on my car, they compleatly fill up the wheel wells. |
 |
 |
 |
 |
 |
