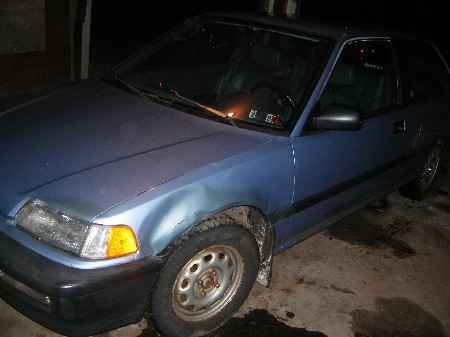

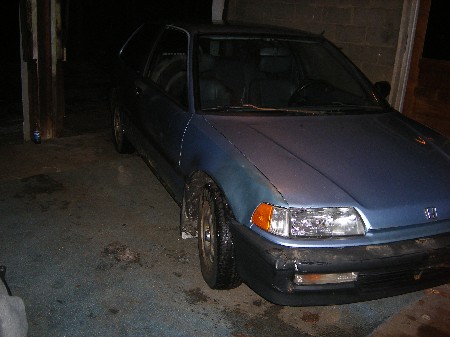

      We're taking a 4th gen, light blue standard model Civic and building it up. We're putting a system in, painting it, swaping the motor, changing the interior, and alot of bodywork. No wings, bodykits, or anything like that. Just a flat black Civic with some small add-ons. Thanks Chris most of all, Dad, Kayla, Alyssa, and teddy.
2/13  Got car
2/19  Started on car
3/01  Got doors off, right rocker done, front end apart, right fender bodywork done, fenders off, took all a/c components and radiator out, took spindles and axles off, got shift linkage off, got rear end apart, and disconected everything that attached motor to car.
3/10  Got all interior out and painted black, motor out, new black carpet and trim in, and shaved antenna.
3/20  Got done shaving rear filler into 1/4's, bodywork on 1/4's done, bodywork on ass end done, assend together, 1/4 windows in, painted 1/4's, ass end, roof, and wing, plastic welded and got front bumper all done.
4/01  no big updates, I was in the hospital with my Grandma. She passed away at 3 am on the 3/24. She was the most wonderful and amazing women that ever lived.
4/10  Got engine compartment cleaned, relocated battery to trunk, painted engine compartment.
4/20  Got clutch and new tranny on motor, all wiring on motor and at ecu done, cdplyer in.
4/30  Got motor in, hooked up all wires, hoses etc, started doing bodywork on drivers door.
5/10  Didn't get anything done, friend got in trouble.
5/20  New fuel pump and gas tank in, new tie rod ends on, new knuckles on, suspension done, axle seals replaced.
5/30  Valve cover and intake painted, car on wheels.
6/10  Amp rack built, havn't had much time to work on car.
6/20  Si interior wiring harness put in.
6/30 to 7/30  We took a break from the car.
8/10  Si motor harness on, sub harness on, interior back in.
8/20

      We want the car to look nice without ruining it with a huge wing or a bodykit. Just some flat black and a couple other things. Click the link to check it out.

      Turning this Civic into a hybrid street car. Not gunna be real fast for awhile til we get the rest of the car done. Click tthe link to read more about the b16 hybrid.

      You'll be able to hear this car coming from a couple streets away. Click to see what we got bangin out the high SPL.
I did the Dpfi conversion but the engine wiring was to clutered so I just went ahead and bought an Si interior and motor wiring harness. Looks alot better and you dont have all the connections inside the engine compartment. Then all there was that needed wiring was the Vtec subharness. 2 plugs inside the car did have to be repinned though. Look at my motor swap page for how to do that.
Here's what I hope to have in the next year.
Skunk2 Catback exhaust Type-R intake manifold IL4 64 mm throttle body Injen RD cold air intake HKS cone filter JDM 98 spec Type-R exhaust manifold Omni Power test pipe Fuel pressure regulator Vafc Light weight flywheel

      Here'some random helpful stuff:
Links
Gear Ratio Speed Calculator  -has a bunch of b series trannys save or you can put your own gear ratios in.
B-series Transmission Specs
Inline Four  -aftermarket motor parts
Hasport  -good for mounts and everything you need to make the swap

Parts List
*Distributor Locashracing.com has new OBDO for $275
*Distributor Hmotorsonline.com has used OBDO for $150
*Transmission Oil Seal. Beck/Arnley #0523545
Water Pump 19200-P30-003 94 - del sol
Head Gasket 12251-P30-014 94 - del sol
Oil Control Orfice O ring 15142-PH3-003 94 - del sol
Intake Manifold Gasket 17105-P30-004 94 - del sol
Exhaust Manifold Gasket 18115-P30-013 94 - del sol
throttle Body Gasket 16176-PR3-010 90-91 integra
Pcv valve 17130-PM6-G01 94 - del sol
Timing Belt 14400-PR3-004 94 - del sol
Alternator Belt 31110-PR3-003 94 - del sol or try a D16a6 belt
Tensioner 14510-P30-003 94 - del sol
Thermostat 19301-P08-305 90-91 integra / 94 del sol (same)
Connecting Pipe O rings (2) 91314-PH7-003 90-91 integra / 94 del sol (same)
Cap & Rotor Assembly 06303-PR4-000 90-91 integra
Rotor (If needed seperately) 30103-PR3-016 90-91 integra
Clutch Cable 22910-SK7-A02 90-91 integra
Throttle Cable 17910-SK7-A03 90-91 integra
Cam Seals (2) 91213-PR3-004 94 - del sol
Oil pan seal 11251-P30-004 94 - del sol
Oil Pump (comes with crank seal) 15100-PR3-024 94 - del sol
Oil Filter 15400-POH-305 94 - del sol
Oil Pick Up Gasket 15221-PW0-S01 94 - del sol
*Shift Linkage Pin A94305-80222
*Shift Linkgae Pin Clip A54113-611-010
Shift linkage bushing 54303-SB2-010 90-91 integra
crank seal 91212-PR3-003 94 - del sol
rear main seal 91214-PH1-004 90-91 integra / 94 del sol (same)
Valve cover grommets -8- 90442-P30-000 94 - del sol
Spark Plug O rings (4) 12342-P66-000 94 - del sol
Rubber plug for exhaust cam tranny side 94 - del sol
Spark Plugs (4) BKR6E-N11 NGK---- Stock Number 5724 in case they cant use the NGK #
Spark Plug Wires 32722-PR4-A01 92 - integra gsr
Upper Radiator Hose 19501-PR3-000 92 - integra gsr
Lower Radiator Hose 19502-PR4-A00 90-91 integra
Bypass Hose (Thermostat) 19508-P08-000 94 - del sol
Washer for coolant drain on block 90401-PR4-000 94 - del sol
*The rubber seal for the distributor cap is 30132-PM5-A02 (90-91 Integra)
*NAPA part #25-040300 for the alternator and a/c


Honda/Acura Motor Specs
Honda Engine Specifications
 Year
Model
Engine
Specifications
Power
 Redline
Torque
88-89
CRX/HF
D15B6
8 Valve SOHC
1493cc
9.1:1 c.r
PGM-FI DPFI
62 bhp @4500
6800 rpm
83 lbft @ 3000
90-Up
CRX/HF
D15B6
8 Valve SOHC
1493cc
9.1:1 c.r
PGM-FI MPFI
70 bhp @4500
6800 rpm
83 lbft @ 3000
88-91
DX/LX
D15B2
16 Valve SOHC
1493cc
9.2:1 c.r
PGM-FI DPFI
92 bhp @6000
6800 rpm
89 lbft @ 4500
88-91
CRX/Si
D16A6
16 Valve SOHC
1590cc
9.1:1 c.r
PGM-FI MPFI
108 bhp @6000
7100 rpm
100 lbft @ 5000
88-91
CRX/Si
ZC/D16A8/9
16 Valve DOHC
1595cc
9.6:1 c.r
PGM-FI MPFI
137 bhp @6800
7200 rpm
108 lbft @ 5700
90-93
Integra LS/RS
ZC/D16A8/9
16 Valve DOHC
1595cc
9.6:1 c.r
PGM-FI MPFI
137 bhp @6800
7200 rpm
108 lbft @ 5700
90-91
Civic/CRX
Si-R EF-8/9
ZC/B16A1
16 Valve DOHC VTEC
1595cc
10.4:1 c.r
PGM-FI MPFI
160 bhp @7600
8200 rpm
111 lbft @ 7000
90-91
Integra GS
B18B
16 Valve DOHC
1834cc
9.2:1 c.r
PGM-FI MPFI
130 bhp @6000
6500 rpm
121 lbft @ 5000
92-93
Integra GS
B18B1
\16 Valve DOHC
1834cc
9.2:1 c.r
PGM-FI MPFI
140 bhp @6300
6800 rpm
121 lbft @ 5200
92-95
Civic CX
D15B8
8 Valve SOHC
1493cc
9.1:1 c.r
PGM-FI MPFI
70 bhp @4500
6500 rpm
83 lbft @ 3000
92-95
Civic DX/LX
D15B7
16 Valve SOHC
1493cc
9.2:1 c.r
PGM-FI MPFI
102 bhp @5900
6800 rpm
98 lbft @ 5000
92-95
Civic VX
D15Z1
16 Valve SOHC VTEC-E
1493cc
9.3:1 c.r
PGM-FI MPFI
92 bhp @5500
7000 rpm
97 lbft @ 4500
92-95
Civic Si/Ex
D16Z6
16 Valve SOHC VTEC
1590cc
9.2:1 c.r
PGM-FI MPFI
125 bhp @6600
7200 rpm
106 lbft @ 5200
93-95
Del Sol Si
D16Z6
16 Valve SOHC VTEC
1590cc
9.2:1 c.r
PGM-FI MPFI
125 bhp @6600
7200 rpm
106 lbft @ 5200
92-95
Civic Si-r(JDM)
Civic VTi(Asian ver)
B16A2/3
16 Valve DOHC VTEC
1595cc
10.4:1 c.r
PGM-FI MPFI
160 bhp @7600
8200 rpm
111 lbft @ 7000
93-95
Del Sol VTEC
B16A2/3
16 Valve DOHC VTEC
1595cc
10.4:1 c.r
PGM-FI MPFI
160 bhp @7600
8200 rpm
111 lbft @ 7000
92-93
Integra Gsr
B17
16 Valve DOHC VTEC
1678cc
10.0:1 c.r
PGM-FI MPFI
160 bhp @7600
8000 rpm
117 lbft @ 7000
94-Up
Integra LS/RS/GS
B18B1
16 Valve DOHC
1834cc
9.2:1 c.r
PGM-FI MPFI
142 bhp @6300
6800 rpm
127 lbft @ 5200
94-Up
Integra Gsr
B18C1
16 Valve DOHC VTEC
1797cc
10.0:1 c.r
PGM-FI MPFI
Dual Stage Intake
170 bhp @7600
8200 rpm
128 lbft @ 6200
96-Up
Civic DX/CX/LX
D15B
16 Valve SOHC
1493cc
9.4:1 c.r
PGM-FI MPFI
106 bhp @6200
7100 rpm
103 lbft @ 4600
96-Up
Civic HX
D15Z
16 Valve SOHC VTEC-E
1493cc
9.4:1 c.r
PGM-FI MPFI
115 bhp @6200
7100 rpm
104 lbft @ 5400
96-Up
Civic EX
D16Z7
16 Valve SOHC VTEC-II
1590cc
9.6:1 c.r
PGM-FI MPFI
127 bhp @6600
7200 rpm
107 lbft @ 5500
96-Up
Civic Si-RII
(Asian ver)
B16A4
16 Valve DOHC VTEC
1595cc
10.4:1 c.r
170 bhp @7800
8200 rpm
16Nm lbft @ 7300
98-Up
Integra Type R
(JDM)
B18C
16 Valve DOHC VTEC
1797cc
10.0:1 c.r
PGM-FI MPFI
210 bhp @8100
8900 rpm
18.5Nm lbft @ 7500
98-Up
Civic Type R
B16B
16 Valve DOHC VTEC
1595cc
10.4:1 c.r
185 bhp @8200
9000 rpm
16.3Nm lbft @ 7600
