Bi-Wiring Measurements, Cont'd
Current Flow Through Bi-Wire Speaker Cables

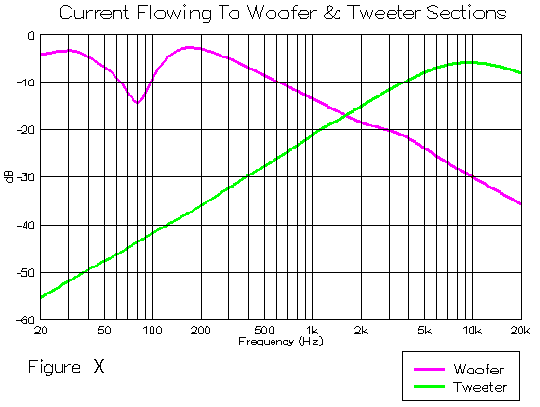

This is a graph of the current flow through the two different cables
in a bi-wire hookup. Note that the woofer cable carries mainly lows, and
the tweeter cable mainly highs. - - - - This is what accounts for the advantage
bi-wiring has over a single cable, the current flows for the highs and
lows are separted, and the resultant magnetic fields are separated too.
