ELECTROMAGNETIC FIELD SIMULATIONS OF AUDIO CABLES, page 2

These are simulations of wires/cables carrying a sine wave at 20 kHz. If the simulation mesh were infinite, it would look perfectly circular in most cases, or at least have smooth even edges. The chunkyness is due to the finite analysis areas, hence there are sections at the gradient demarcations that show this mesh distortion.

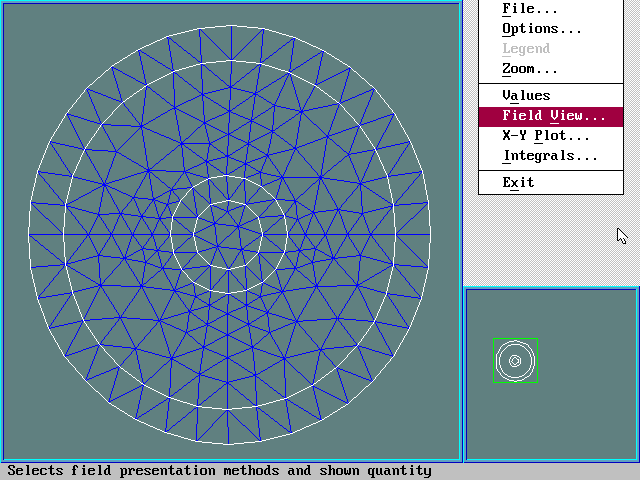

Shows the analysis mesh for the coaxial cable, center wire is 18 guage.

NOTE: For this model and the subsequent ones with outer shields, the models use a solid tube of conductor, rather than a mesh/braid, hence the shield is an ideal and unattainable one. However, it will not distort or render invalid the field effects near the center wire/s.

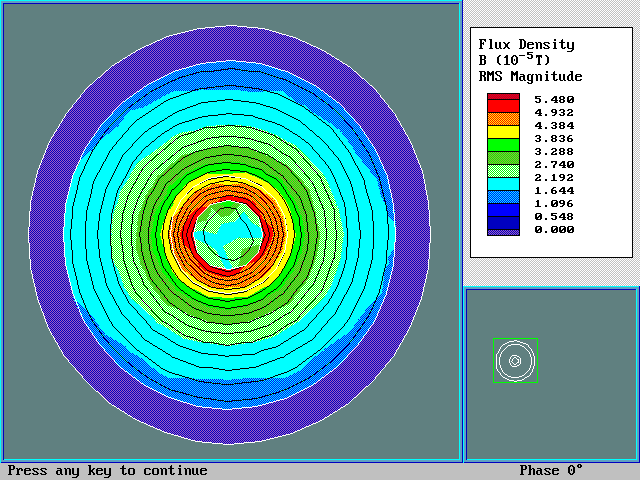

Shows magnetic flux density of a coaxial cable at 20 kHz, 18 gauge center wire.

Note the lower levels of flux in side the wire. The shield is at zero (ground) potential.

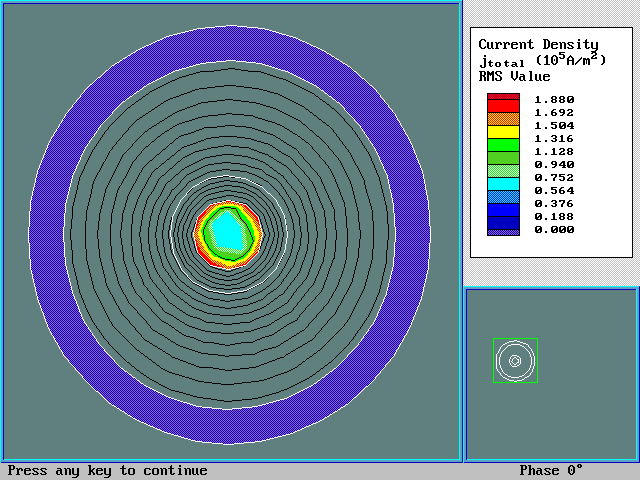

Shows current flow density in the 18 gauge conductor at 20 kHz.

Note majority of current flow is at or near the surface of the center wire. The shield is at zero (ground) potential.

Placing the shield at ground potential in the simulation is not going to exactly correspond to reality, but this particular simulator program did not like having the shield carry current in this particular problem set-up.
I may be able to fool it into some semblance of a real world reaction in some future simulations, but the shield would still be unrealistic in that it is still a solid tubular sheath, and not a braid.
