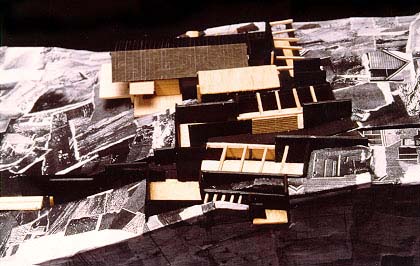

| brandon on the water - a project to try and achieve some sort of consistency in design for a 12 lot develop. shared access and strong, solid links to the water down the hill with light 'floating' pavilions to achieve the balance. |
| brandon on the water. . . . |
 |
| modelling |
|
| Rush house a concept model made for the 'Rush House'. This project has been built. the client wanted simple barn like forms with corrugated metal claddings. an entry glazed path separates the two forms of garage and house and this provides access to a linking balcony with a view to the south east. a deck area leads out on to flat land on the sheltered north west side |
 |
|
|

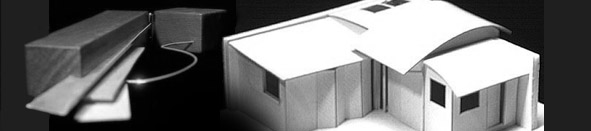

| a selection of models from my studies and working models used to shape built works follows. the title shot shows a simple concept model for a linear bach with overlaping skewed planes and a working model for a utility / guest building |
| many thanks go to yahoo for sponsorship of this page |
 |

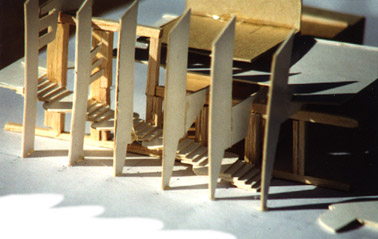

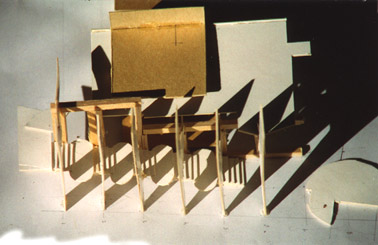

| Design Integrated Workshop project 3rd year architecture school project for a new design school a study model looking at daylighting for the main promenade |
 |
 |
| here you can see the shared access to the site and garages with a typical pitched roof pavilion house design |
| garage |
| garage |
| shared access |
| house |
| entry courtyard & covered terrace |
 |
| study model for utility / guest room at 27 motueka quay this is a small workshop (left) and guest room (right) with bathroom facilities. this also served the purpose of a living space while the main house was designed and constructed a tiled courtyard allows workshop projects to spill outside when the weather is nice |
 |
 |
| concept model for final design project (victorial school of architecture) a concept model made from rimu (oiled and polished) sandblasted perspex and aluminium the idea was one of layering with layers of perspex each with old floor plans from the proposed site sandblasted onto the top surface. when layered you can look through to see the rich architectural history of the site |
| house at 27 motueka quay, motueka (New Zealand) a final study model made from bass wood on a painted plywood contoured base this was also used to study sunlighting for the proposed building |
