| these are all computer generated images. the images above and directly below come from computer generated models drawn first in AutoCAD and then rendered using 3D Studio. the computer model allows visualisation of spaces and allows the designer to test a variety of surface finishes and cladding very easily |
 |
 |
 |
|
| j o n a t h a n w y a t t |
 |
|
|
|
 |

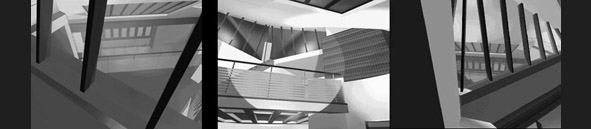

| knight klisser house, parnell, auckland by andrew paterson co-partners architects drawn for computer the applications course as part of my bachelor of architecture degree below is the basic wire frame model |
 |
 |

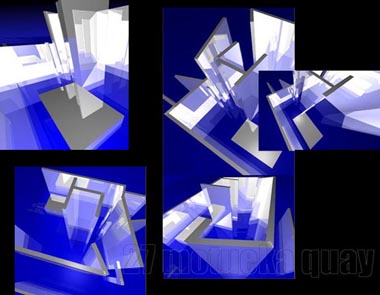

| 'motueka walls' was drawn to explore reflectance of horizontal surface against a vertical series of forms this series of explorations helped shape the entry path of the final built work - 'wyatt house,' where a path leads a visitor around a courtyard to the main entry. a library window has its view over this area of horizontal surfaces which is bounded by vertical concrete structure to frame the vista beyond here Microstation95 has been used |
| computer graphics |
|
 |
|
|
| many thanks go to yahoo for sponsorship of this page |
 |

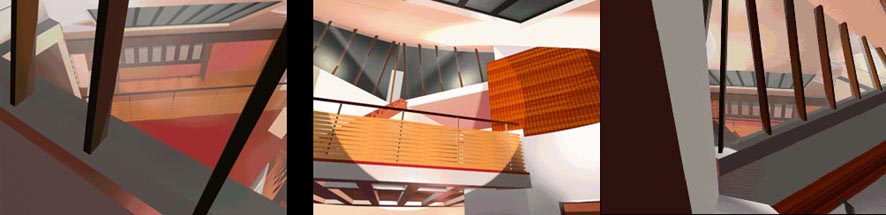

| knight klisser house: left image is looking through the glass window to mezzanine and its woven hand rail and down to main living area below middle image is looking back up from main living area up to the woven handrail of the mezzanine level above and the wedge shaped glass above right image is looking through the glass again and this time includes part of the chimney |
