| booster & master cylinder | ||||||||||||

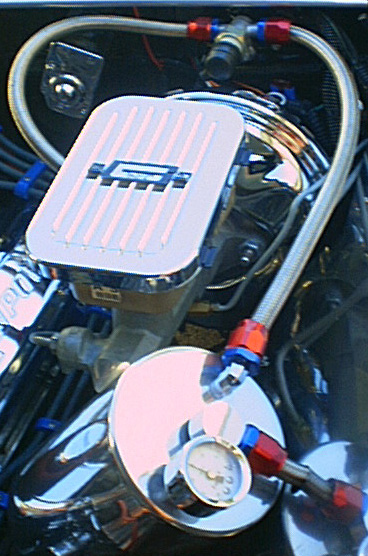

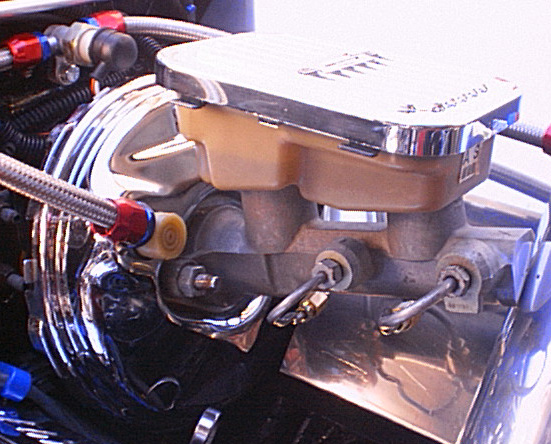

| 77 monza power brake booster. 86 camaro 4 wheel disc master cylinder. i will be using a wilwood adjustable proportioning valve when i install my rear disc brakes. the diffenerence in braking is a huge improvement compared to the factory non-power setup. this in combination with the monza ventilated rotors, calipers and brake pads makes my car brake very well. |
||||||||||||
| my engine doesn't make enough vacumn at idle, so i am using a summit vacumn reserve cannister. i also am using an eci vacumn pump (hidden under the stainless panels). the hoses are routed thru a vacumn sensing switch that runs the pump only when the vacumn drops below about 21 in. |
||||||||||||
