Valve Buffered Inverted Gain Clone Project
Don't let the looks of this amp fool you. It may seem to look like an ordinary amp but it's not, this amp's sonics is very good indeed. I never believed it myself until I tried one. Bass notes are well handled, mids are well detailed and the highs are clear. Parts are locally available except for the LM3875 and some of the capacitors.
Thanks to Joe Rasmussen for designing such a superb amp and sharing it to others. His website and schematics can be found here.

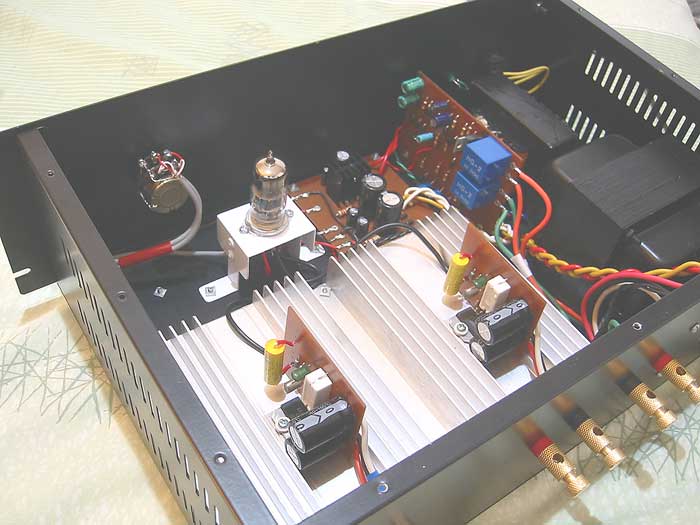

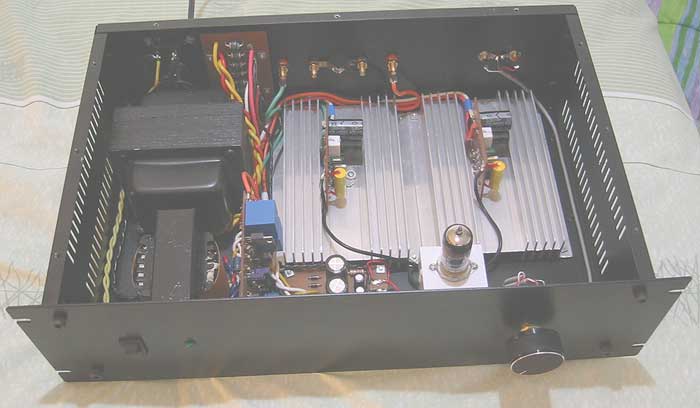

And now some pics of the Hybrid GainClone.

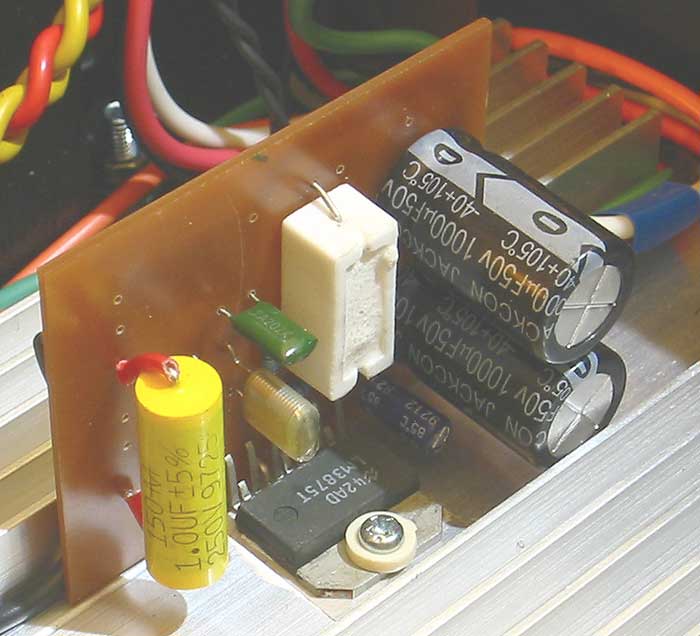

National Semiconductor's Overture Series LM3875 Chip.
The JAN Phillips 6922 Vacuum Tube.

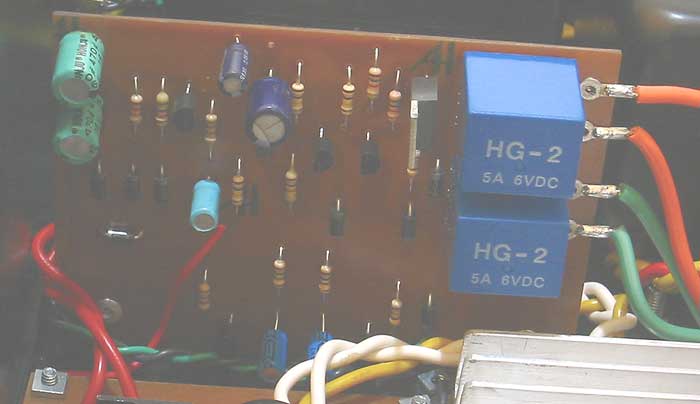

The speaker time delay for taking care of those nasty thumps.
