TDA2050 Audio Power Amplifier

A 2 channel gainclone intended for evaluation and of course, tweaking! A standard non-inverting circuit that powered my MTM Speakers in such a way that the whole house was filled with music. This may not be the most sought after gainclone, but it sure is worth my time and money. The sound is great too!

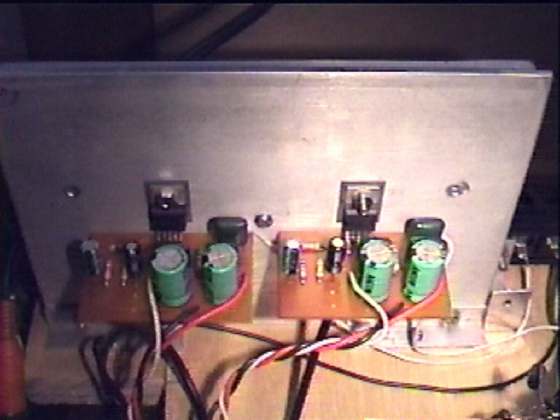

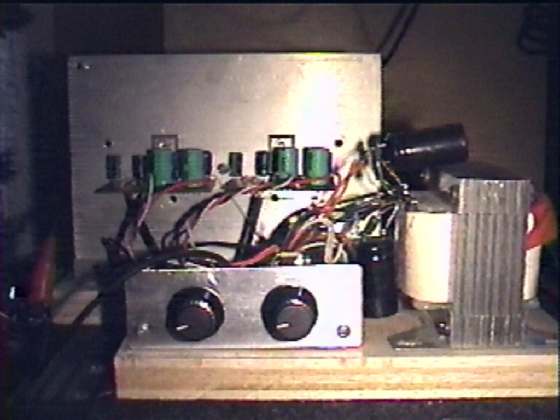

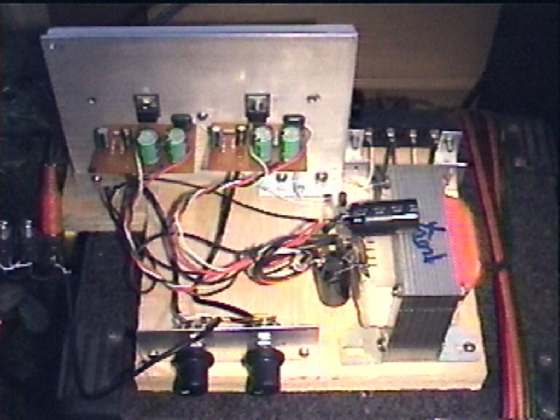

The prototype was built on a piece of plywood that holds the heatsink, transformer, speaker terminals and the potentiometers. The pcb dimensions are 1.25" X 2" per channel only.

Sorry, pics only for the meantime... pcb patterns will come soon.
