Skinny Mixer Project

A general purpose line mixer unit using some opamps I have in my drawer. It has 4 switcheable buffered inputs, a fader circuit, and also a headphone driver for input signal monitoring. It also has bass and treble controls on each channel for easy tone adjustments.

I generally use this mixer as a preamp and for input signal switching/selection.

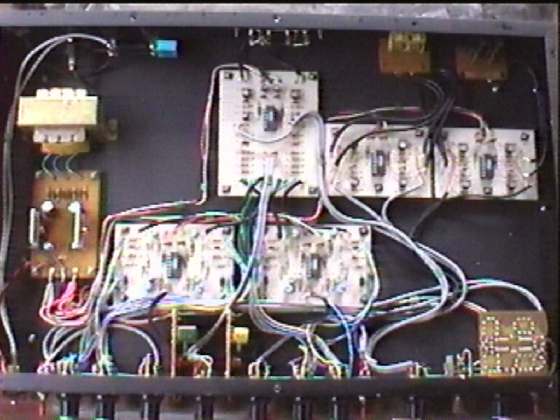

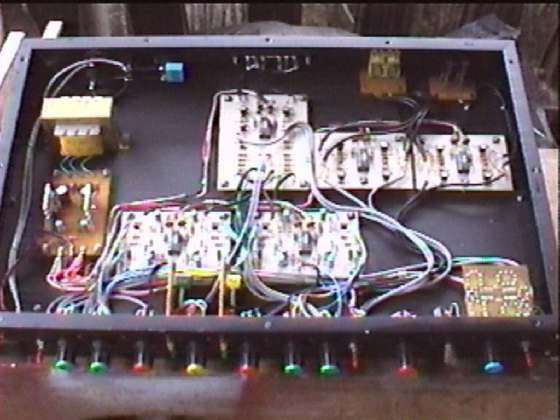

A bird's eye view of the whole mixer.

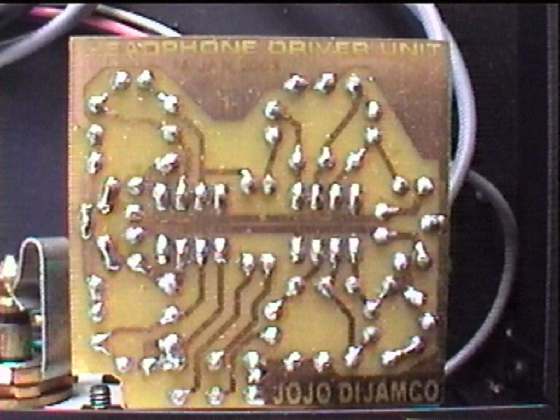

My headphone driver circuit.

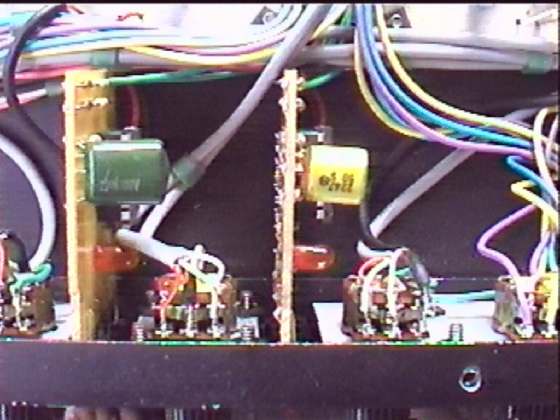

The comparator-based signal indicator.

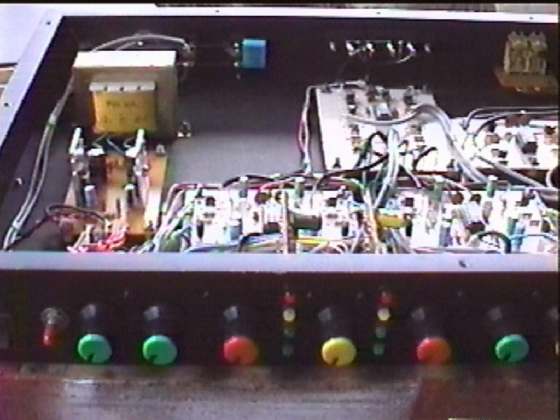

Such colorful knobs, they are from a former project.
