UPDATED DECEMBER 2005!
Welcome to my webpage!
If you have any question's or comments, please feel free to drop me an email, hope you enjoy your visit and please come by again.
Here's alittle information about the project. I orignally bought my 1964 Jeep CJ5A in the late early 90's and drove it almost daily until 1995 at which time I mostly used it as a plow vehicle. The frame was bad and the body was getting really bad. I have always wanted to rebuild the Jeep when the time was right and when a frame became available. This spring I posted at message at www.rigidsteel.com hoping to find a frame. Well this summer I got an email from a fellow Vermonter who had a frame that he was going to junk, so if I was interested I could have it for $25. Well after looking at the pictures of the frame I decided that I would make the trip from Wilmington to New Haven to get the frame and the project began!
Getting my Jeep running! My Jeep hadn't been started for almost 2 years, I know, shame on me! Well after some new spark plugs and some fresh gas I got the old girl running as if I had been running it daily. The engine is the F4-134 4 cylinder, great little engines! Below is a few pictures of the Jeep before I started "tearing" it apart.
Click here to view a picture of my Jeep at the start of the project!
Click here for another angle!
The first thing I wanted to do was to get the "new" frame ready. That meant using a drill with a wire brush to get as much of the rust off as possible. After that I put 2 coats of primer and 2 coats of chassis paint. I also had to install 4 new shackle bracket for the springs. Below is a before and after picture of the frame.
Click here to view a picture of the frame.
Click here for another angle!
After the frame was ready I took the front and rear end out of my old Jeep, put them on the new frame and then started taking the body off my old Jeep to get to the engine to make it easier to remove. Below are a few pictures of this process.
Click here to view a picture at this stage.
Click here for another angle!
Click here for another angle!
Next was to build a tripod and remove the engine. After that I pressure washed the engine, bought some new mounts and installed it on the new frame. This is where I am right now as of September 16, 2004. I have ordered the parts I need to start doing the brakes and also the universal joints. As I progress I will ad more info and pictures.
Click here to view a picture at this stage.
Click here for another angle!
Click here for another angle!

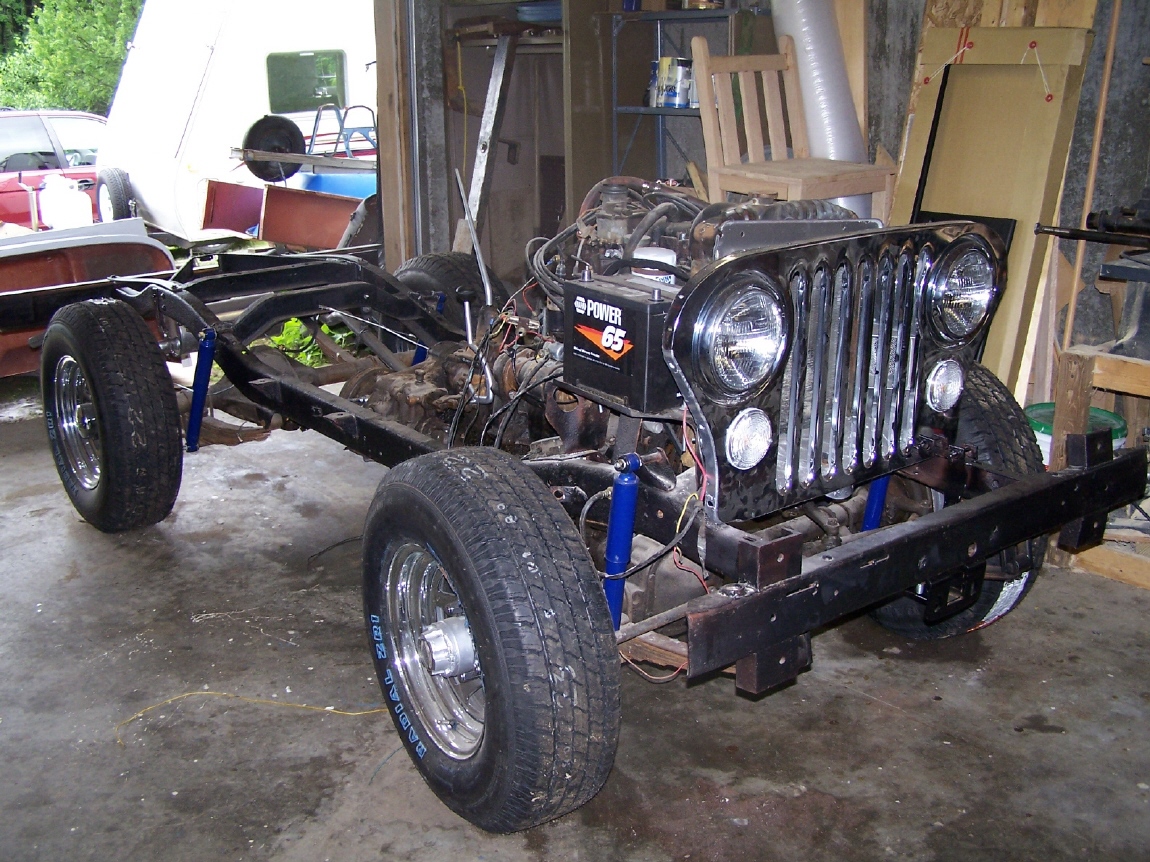

Finally making some progress! I bought some tires and wheels and finally started getting some body parts in. Below are some pictures I took along the way.
Click here to view a picture at this stage.

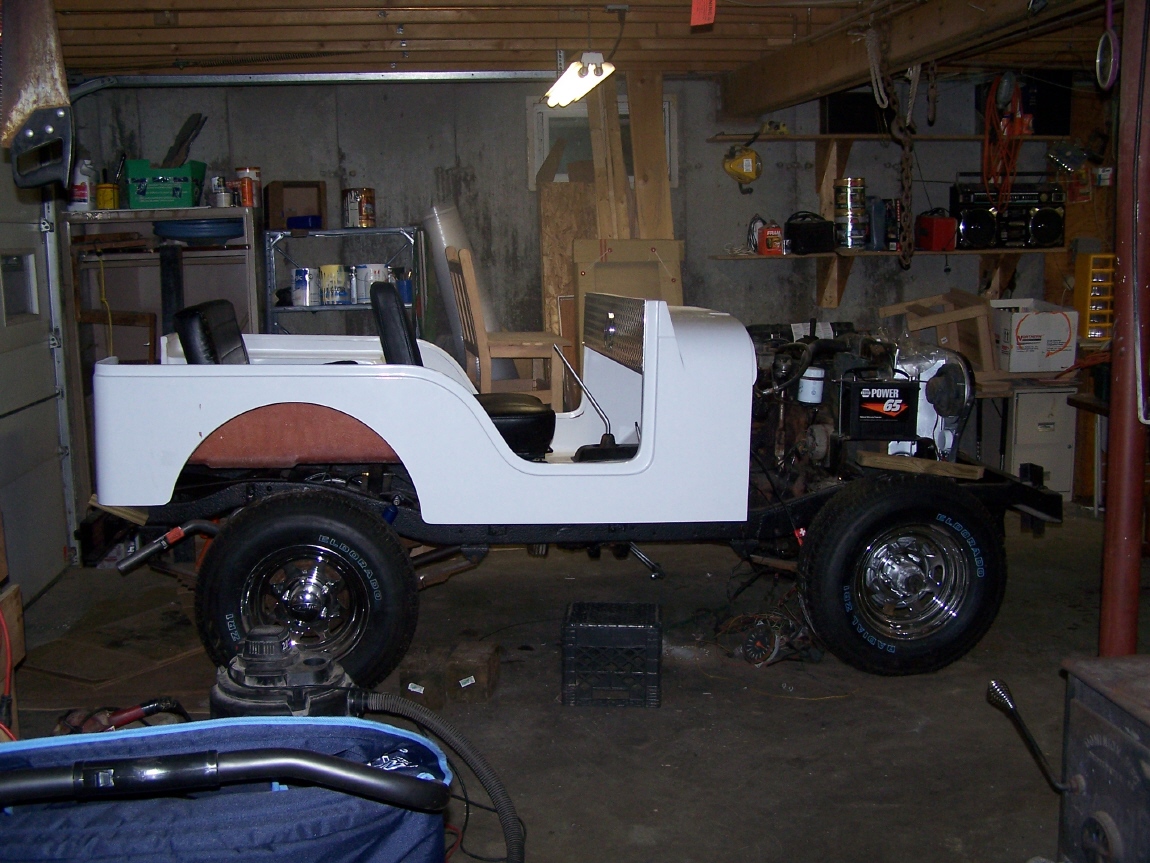

Below is a picture with the new fiberglass tub sitting on the frame!
Click here

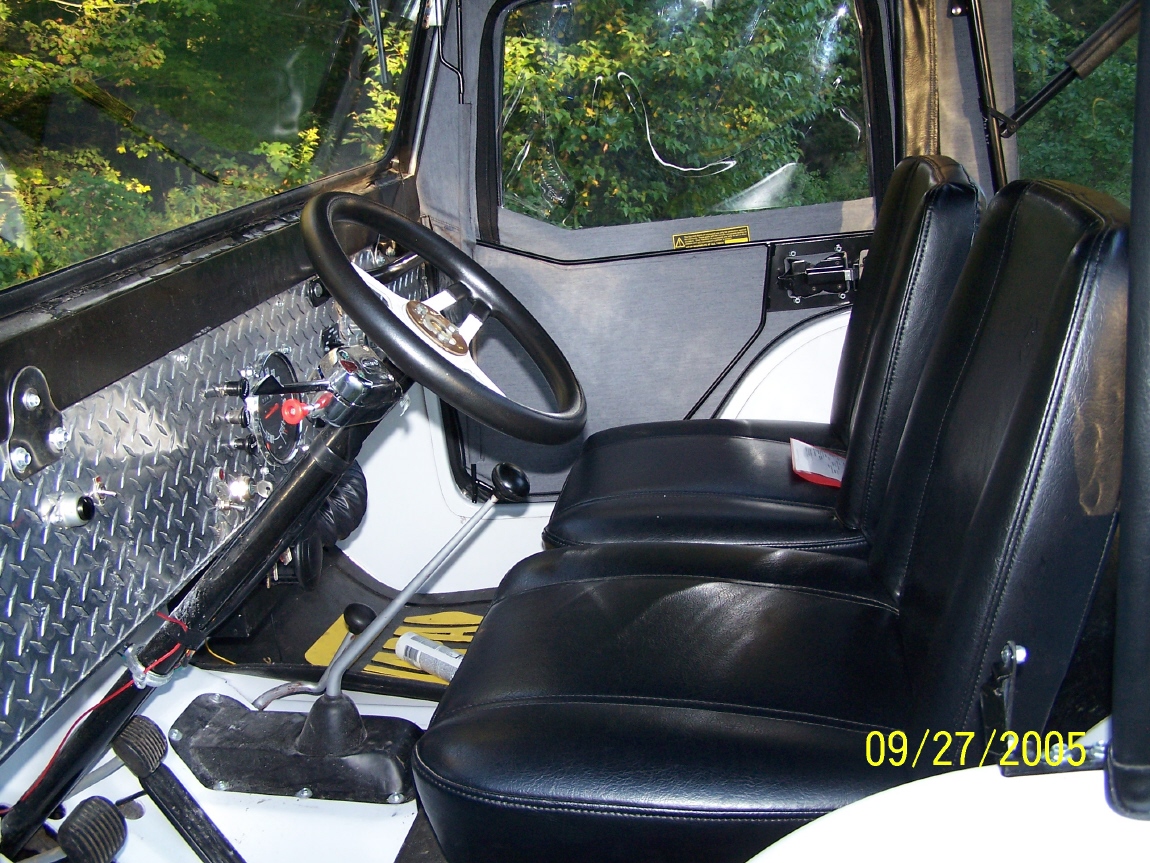

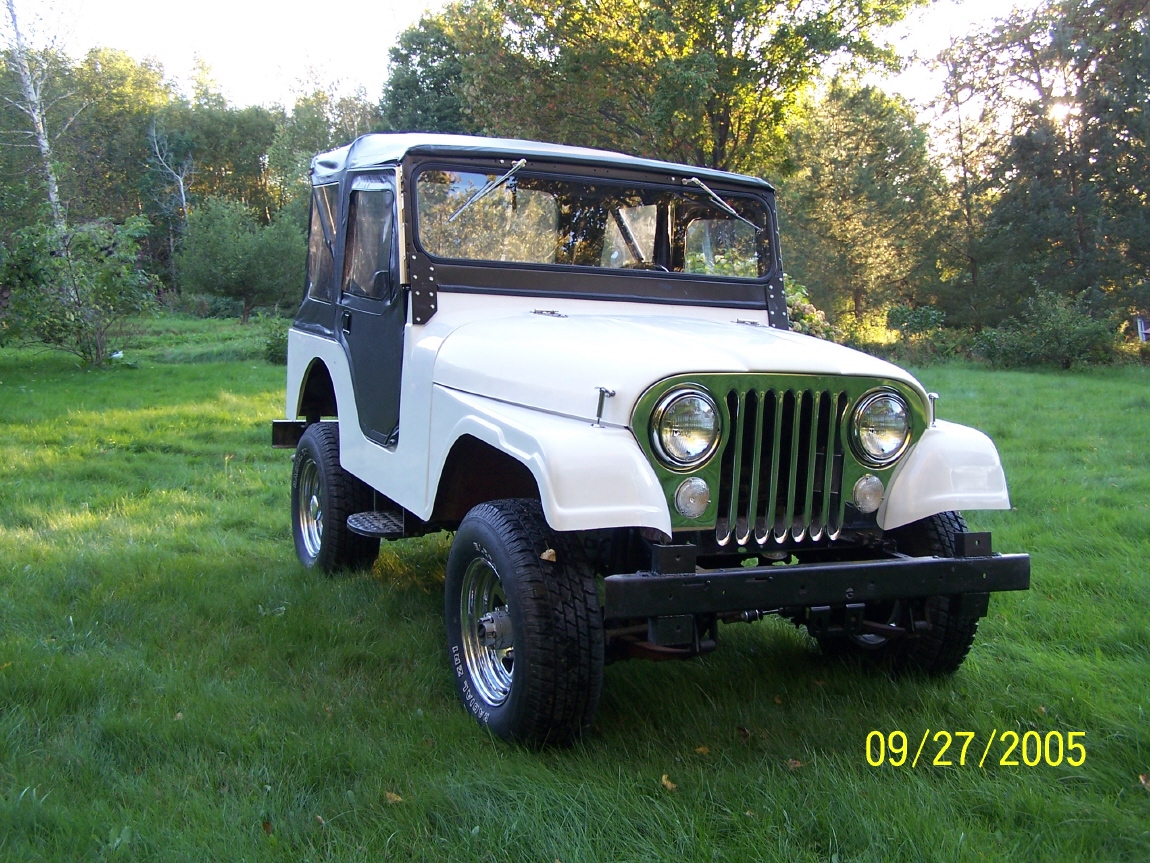

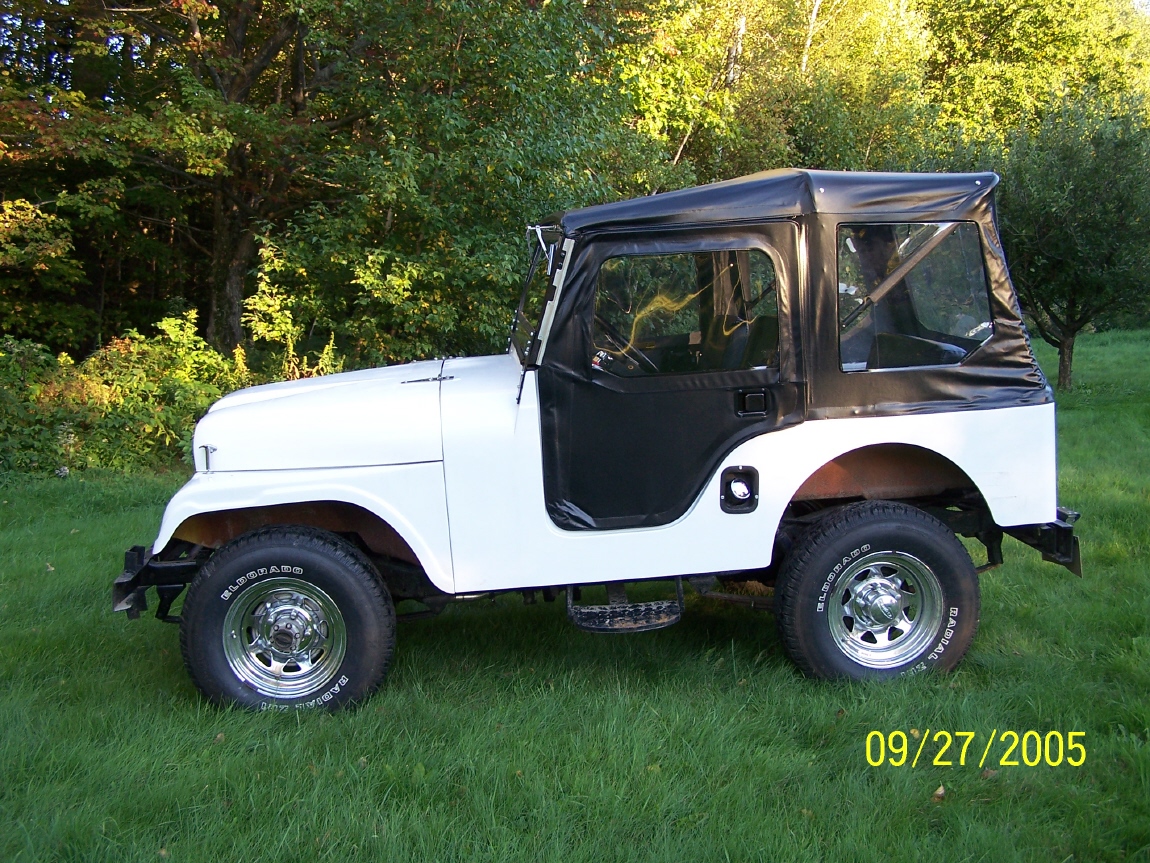

My Jeep is finally finished! Here are a few pictures of my "NEW" Jeep!
