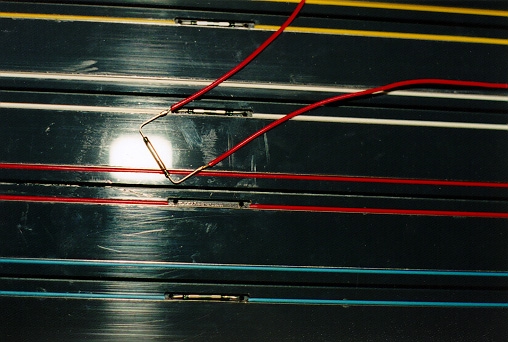

| Cut the color code wire at the reed switch slot.� Drill 5/64" holes.� Reed switches are VERY delicate.� Carefully bend the ends down with needle nose plyers so that the edges of the reeds are facing up.� Solder small wire leads (color coded) to the ends.� Feed the wires down into the appropriate lane holes so that the reed switch is below track level. | ||||||||
|
||||||||
|
||||||||
