SLIDE-TOGETHER CHAIR

The slide-together chair lets you sit up off the sand at the beach, or it could be set up anywhere. At the beach, sit down, and adjust the chair to a comfortable position by rocking it into the sand. The chair is made of oak 1"x2" slats and assembled with glue and screws. Don't use a soft wood like pine or the slats might break, and oak stands up to water better.

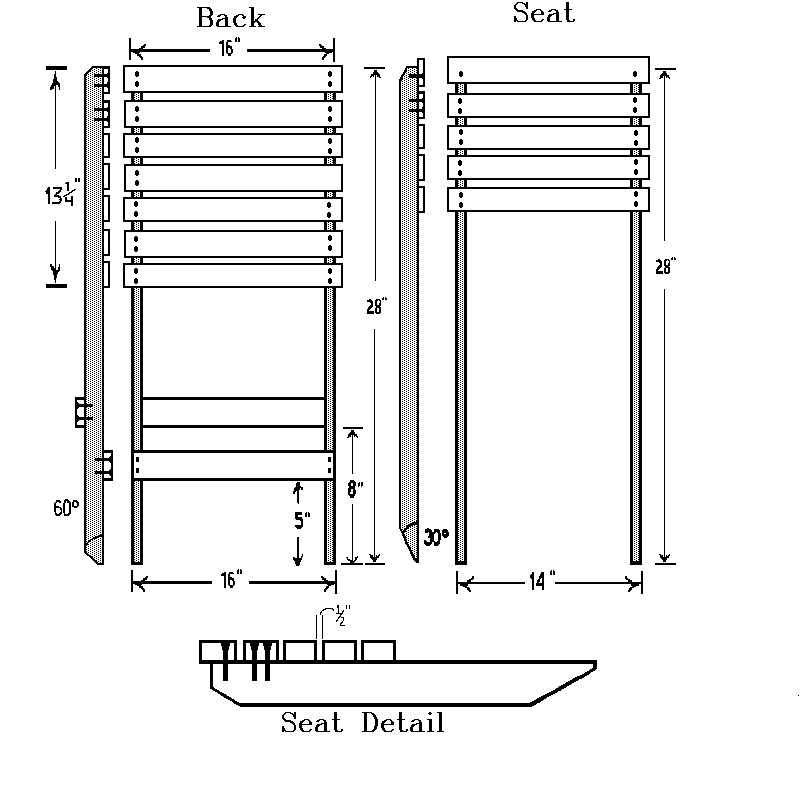

Assemble as in the sketch using the parts list as a guide. The angled cuts on the legs (30-degrees on the seat and 60-degrees on the back) make the chair sit flat on a hard surface; the ones under the seat keep you from scraping the backs of your legs when you get out of the chair. Glue and screw all connecting surfaces; use a screw pilot to set the screws. Sand down all corners and points, and seal or paint the chair as you like.


PRINT THIS PAGE NOW and you're on your way to having your own beach chair.

Buy: (these are all oak 1"x2" slats)

4 five-foot lengths
2 four-foot lengths
1 three-foot length
1 eight-foot length


These will make:
two 28" 1x2's (back legs, from one 5-foot length)
two 28" 1x2's (seat legs, from one 5-foot length)
two 16" 1x2's (support rails, from one 3-foot length)
seven 16 1/2" 1x2's (back slats, five from an 8-foot, and two from a 4-foot length)
five 15" 1x2's (seat slats, four from a 5-foot length, one from a 4-foot length)
