Any source of magnetism, such as a magnet or electromagnet, is surrounded by a magnetic field. That field can be detected by various devices, which can also give information about the direction of the field and even its strength.
A simple compass can detect a magnetic field and demonstrate its direction. Iron filings can be used to show the shape of a magnetic field.
Questions you may have include:
How does a compass detect a magnetic field?
How do iron filings demonstrate a magnetic field?
This web-page will answer those questions.
A compass is simply a thin magnet or magnetized iron needle balanced on a pivot. It can be used to detect small magnetic fields. The needle will rotate to point toward the opposite pole of a magnet. It can be very sensitive to small magnetic fields.
When you bring a compass near an item suspected of being magnetized or having a magnetic field, the compass will turn and point toward the appropriate pole of the object.
Compass needle attracted to magnet's N pole
A famous experiment showed that a wire with DC electric current running through it created a magnetic field. When the electricity was turned on, a nearby compass moved to indicate a magnetic field was present.

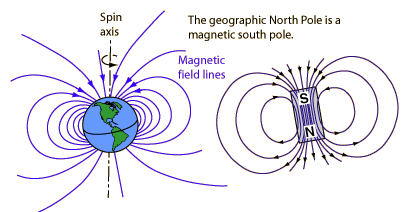

The compass was used to discover that the Earth is a huge magnet. The North-seeking pole of the compass needle will always point toward the Earth's North magnetic pole.
By spreading fine iron filings or dust on a piece of paper laid on top of a magnet, you can see the outline of the magnetic lines of force or the magnetic field. The picture below
Iron filings and compasses show the shape and direction of the magnetic field
This experiment also shows that magnetism will act through many materials, such as paper. Would the experiment work if a sheet of iron were used to sprinkle the filings? What about aluminum foil?
Magnetic objects are surrounded by a magnetic field. Devices can detected the field and also give information about the direction of the field and even its strength. A compass can detect a magnetic field and show its direction. Iron filings can show the shape of a magnetic field. A gaussmeter can detect a field and indicate its strength.
