Batteries are divided in two ways, by application (what they are used for) and construction (how they are built). The major applications are automotive, marine, and deep-cycle. Deep-cycle includes solar electric (PV), backup power, and RV and boat "house" batteries. The major construction types are flooded (wet), gelled, and AGM (absorbed glass mat). AGM batteries are also sometimes called "starved electrolyte", because the fiberglass mat is only 90% saturated with Sulfuric acid. Flooded may be standard, with removable caps, or the so-called "maintenance free" (without caps). All gelled are sealed and a few are "valve regulated", which means that a small valve keeps a slight positive pressure in each cell. Most AGM batteries are sealed and valve regulated. Sealed gell and AGM batteries offer the convenience of no maintenance and produce less gas, so at first glance, they may appear more attractive than standard flooded cell batteries. There is a down side here, tho.... These batteries, especially the gell cell type, require precise control of the charging process to prevent permanent damage by overcharging. They also tend to be significantly more expensive and have a somewhat shorter lifespan. It all depends on what premium you put on the maintenance free aspect of it. In my opinion, the standard flooded cell battery offers better overall performance for the price and will probably last a lot longer in most common RV applications. The need to add water periodically is a small price to pay for the advantages you get. I strongly suggest that you avoid the "maintenance free" flooded cell batteries... they truly aren't a good design: they are simply a standard flooded cell battery with sealed cells. Each cell has a small valve to release excessive pressure. They still can be run low on electrolyte with heavy usage and fast charging, and there's no way to add water, so the batteries often die young.

Starting batteries are normally used to start and run engines. Engine starters need a very large starting current for a very short time. Starting batteries have a large number of thin plates for maximum surface area. The plates are composed of a Lead "sponge", similar in appearance to a very fine foam sponge. This gives a very large surface area, but if deep cycled, this sponge will quickly be damaged and will fall to the bottom of the cells. Automotive batteries will generally fail after 30 or more deep cycles.

Deep cycle batteries are designed to be discharged down as much as 80% repeatedly, and have much thicker plates. The major difference between a true deep cycle battery and others is that the plates are solid Lead plates - not sponge. Unfortunately, it is often  impossible to tell what kind of battery you are really buying in some of the discount stores or places that specialize in automotive batteries.

Many Marine batteries are actually "hybrid", and fall between the starting  and deep-cycle batteries, while a few are true deep cycle. In the hybrid, the plates may be composed of Lead sponge, but it is coarser and  heavier than that used in starting batteries. It is often hard to tell what you are getting in a "marine" battery, but most are a hybrid. "Hybrid" types should not be discharged more than 50%.

A battery's capacity for storing energy is rated in several different ways, depending on the battery type. Starting batteries are often rated in Cold Cranking Amps or CCA. CCA is the discharge load in amps which a battery can sustain for 30 seconds at 0 degrees F. and not fall below 1.2 volts per cell (7.2V on 12V battery). This battery rating measures a burst of energy that a car needs to start on a cold morning.

Deep cycle batteries are often rated in Amp/Hours. Amp/Hour rating of battery capacity is calculated by multiplying the current (in amperes) by time (in hours) the current is drawn. For example: A battery which can deliver 4 amperes for 20 hours before being discharged would have a 80 amp-hour battery rating (4 X 20= 80).

You may also see batteries rated with a Reserve Capacity.  RC is the number of minutes a new, fully charged battery at 80 degrees F. will sustain a discharge load of 25 amps to a cut-off voltage of 1.75 volts per cell (10.5V on 12V battery). This battery rating measures more of a continuous load on the battery. For RV use, this rating is a little less useful, as the common loads that RV use puts on a battery are a lot less than that 25 amp load used to determine RC.

Selecting the correct batteries is all about lifespan.... The right batteries will last a lot longer, leaving you with more money for the finer things in life! The lifespan of a battery will vary considerably with how it is used, how it is maintained and charged, temperature, and other factors. We'll talk more about maximizing the lifespan of your batteries later, but for now, here are some typical expectations for batteries used in deep cycle service:
           Starting: 3-12 months
           Marine: 1-6 years
           Golf cart: 2-8 years
           Deep cycle (L-16 type etc.): 4-8 years  AGM deep cycle: 4-10 years
 Gelled deep cycle: 2-5 years A lot of RVs come from the dealer with just a single Group 24 deep cycle or Marine battery installed. Many have room for additional batteries and some battery boxes will accommodate larger batteries. Now, folks... if you NEVER camp without electric hookups, you need worry little about battery selection... in fact, you might as well not bother reading any further. On the other hand, if you like to really get away from it all and consider hookups optional at best, then a good rule of thumb is to get as large a battery as will fit in your existing battery box... The more amp hours of capacity you can fit, the longer you can go between re-chargings.

There are a lot of different battery sizes out there... here are some common battery size codes and approximate sizes and ratings:

There are a lot of different battery sizes out there... here are some common battery size codes and approximate sizes and ratings:



Battery Type	Dimensions  in inches ( L x W x H)	Weight	Capacity	Voltage
Group 24	10.87 X 6.58 X 9.97	53 lb.	70-85 Amp hours	12 volts
Group 27	12.60 X 6.60 X 9.97	63 lb.	85-105 Amp hours	12 volts
Group 31	12.94 X 6.74 X 9.88	68 lb.	95-125 Amp hours	12 volts
4-D	20.73 X 8.66 X 10.27	130 lb.	180-215 Amp hours	12 volts
8-D	20.62 X 10.95 X 10.17	158 lb.	225-255 Amp hours	12 volts
Golf cart & T-105	10.37 X 7.13 X 11.57	61 lb.	180 to 220 Amp hours	6 volts
L-16	11.69 X 7.13 X 16.69	114 lb.	340 to 380 Amp hours	6 volts

A lot of RVers have switched from the "standard" group 24 or 27 12 volt batteries to the larger 6 volt golf cart batteries. If you have room for at least 2 of them, they are a good choice. They are true deep cycle batteries and will last a lot longer than most common 12 volt batteries in your RV. They are physically larger, so you must measure carefully before buying them, but I recommend you use them if you can. I have a set of Trojan Golf cart batteries that are going on 5 years old and they still have almost all of their original capacity. They are priced about the same as (or a bit lower than) the common 12 volt deep cycle battery. Golf cart batteries have a higher capacity than group 24 and 27 batteries... a pair of group 24 12 volt batteries only provide 140-170 amp/hours of capacity, where a pair of golf cart batteries provide 180-220 amp/hours. There are other deep cycle batteries available, such as the L-16 and AGM types, that are extensively used in large solar and alternate energy systems, but their physical size and added expense make them a less attractive choice for the average RVer.

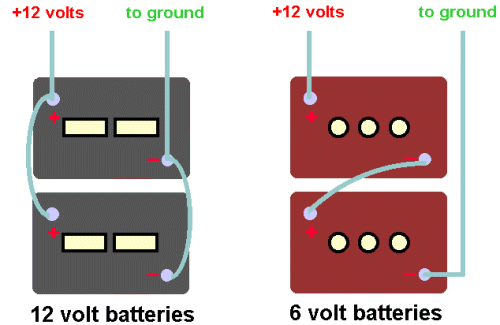

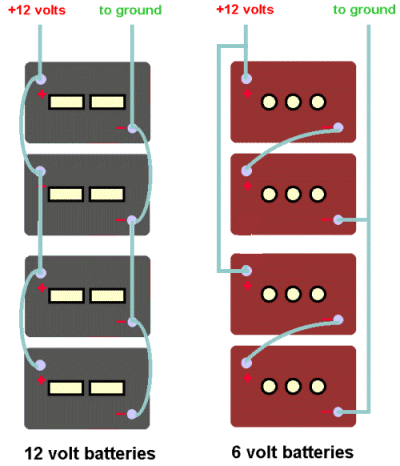

If you have room and want to change over to the 6 volt golf cart batteries, you must make an important wiring change. Most rigs that have 2 or more 12 volt batteries have them wired in parallel. when going to the 6 volters, you must wire pairs of them in series to produce the needed 12 volts. This is actually simpler than it sounds.... see the diagrams below.

When installing new batteries, first mark the cables so you do not forget which one is which when you reconnect. If you are changing over from a pair or set of 12 volt batteries to a pair or set of 6 volt batteries, some changes in cabling will be required. See the wiring drawing above for an example.. If you don't fully understand what the difference is between parallel and series wiring, I strongly suggest that you do not attempt to do the hookup yourself... get a competent RV mechanic to show you how. If you are building a bigger battery bank, see below for wiring info...

When replacing your batteries, remove the negative cable first because this will minimize the possibility of shorting the battery  when you remove the other cable. Next remove the positive cable and then the hold-down bracket or clamp. If the hold down bracket is severely corroded, replace it.  Dispose the old battery by exchanging it when you buy your new one or by taking it to a recycling center.  Please remember that batteries contain large amounts of harmful lead and acid.

After removing the old battery(s), be sure that the battery tray and cable terminals or connectors are clean.  Auto parts stores sell a cheap wire brush that will allow you to clean the inside of a terminal clamps and the terminals.  If the terminals, cables or hold down brackets are severely corroded, replace them. Keep track of the markings you made on the cables before replacing them!

Thinly coat the terminals and terminal clamps with a high temperature grease or petroleum jelly (Vaseline) to prevent corrosion. Place the replacement battery(s) so that the cables will connect to the correct terminals. Be extra careful here, as reversing the polarity of the battery when connecting it may severely damage or destroy some parts of your RV electrical system. Replace the hold-down brackets or straps to secure the batteries in place, then reconnect the cables in reverse order, i.e., attach the positive cable first and then the negative cable last.

Before using the battery(s), check the electrolyte levels and state-of-charge.  Refill or recharge as required.

Maintaining the correct electrolyte levels, tightening loose hold-down clamps and terminals, and removing corrosion is normally the only preventative maintenance required for a battery. However, you can extend your battery's life by keeping your battery charged properly and avoid deep discharges. Let me explain:

A battery "cycle" is one complete discharge and recharge cycle. It is usually considered to be discharging from 100% to some point not lower than 20%, and then charging back up to 100%. Battery life is directly related to how deep the battery is cycled each time. If a battery is discharged to only 50% each cycle, it will last about twice as long as if it is cycled to 20%. Running the battery down totally flat will have a very negative effect on the lifespan of the battery. See the table below for voltages as related to depth of discharge. This chart is designed to be used when monitoring a battery under load. This chart is a little more useful to the average RVer, as we are most interested in monitoring the state of charge of our battery bank while it is actually in use. See the Testing your batteries section below for information on determining open circuit state of charge using either a volt meter or a specific gravity tester.

Voltage	State of Charge
12.6+	100%
12.5	90%
12.42	80%
12.32	70%
12.20	60%
12.06	50%
11.9	40%
11.75	30%
11.58	20%
11.31	10%
10.5	0%

If the battery has been charging, then it's important to let the battery set for 2 to 3 hours without a load or charger connected to stabilize before testing. Otherwise, your reading will be high, caused by a phenomenon called "surface charge"  It is also necessary to invest in a good digital voltmeter.... it's the only meter that will offer the necessary accuracy to properly test your battery system. That little analog gauge that is part of your RV monitor panel is not very accurate or useful. It's possible to install your own panel mount digital voltmeter... I'll tell you more about that in the section on monitoring. For now, it's important that you understand that your battery's life is adversely affected by too deep a discharge.

At this point, it's also important to note that the battery voltage will be affected by temperature.... The chart above, and most other ratings applied to Lead/Acid batteries assume that the battery is at room temperature: 21 degrees C or about 70 degrees F. As the temperature of the battery drops, so will the fully-charged voltage reading. I have found a lot of conflicting information about this phenomenon, but it seems to be safe to say that for each 10 degrees F drop in temp, you can expect to see the voltage drop about a tenth of a volt. (.10 volt) That means that a battery at 32 degrees F with a no-load voltage reading of  12.35 volts is fully charged.

Battery capacity (how many amp-hours it can hold) is reduced as temperature goes down, and increased as temperature goes up. This is why your car battery dies on a cold winter morning, even though it worked fine the previous afternoon. At freezing, the battery's capacity is reduced by 20%. At approximately -22 degrees F (-27 C), battery AH capacity drops to 50%. Capacity is increased at higher temperatures - at 122 degrees F, battery capacity would be about 12% higher. Even though battery capacity at high temperatures is higher,  battery life is shortened. Battery capacity is reduced by 50% at -22 degrees F - but battery LIFE increases by about 60%. Battery life is reduced at higher temperatures - for every 15 degrees F over 77, battery life is cut in half. In reality, this is fascinating information, but isn't really terribly important. Most RVers experience a wide range of temperatures and conditions, so your batteries will average out just fine... I only include this information to give you some feel for the fact that temperature plays a part in battery life and capacity. Don't worry about it!

Testing your batteries

First off, visually inspect for obvious problems.... for example; damaged cases, corroded terminals or cables, loose hold-down clamps or cable terminals, or low electrolyte.

 If you have just recharged your battery, then a phenomenon known as "surface charge" will cause the battery voltage to be higher than normal. To insure accurate readings, you must eliminate any surface charge before testing. Use one of the following methods;

          1.  Allow the battery to sit for six hours with no load or charger connected, or...
          2.  Apply a 25 amp load for three minutes and wait five minutes, or...
          3.  With a battery load tester, apply a 150 amp load for 10-15 seconds.

The battery under test must be disconnected from any load or charger when testing. This is referred to as "Open Circuit". Use the following table, determine the battery's state-of-charge. The best way to measure the state-of-charge is to check the specific gravity in each cell with a hydrometer.  A temperature compensating hydrometer will cost approximately five dollars at an auto parts store. If the battery is sealed, then the correct procedure to test it is to measure the battery's voltage with a good quality digital DC voltmeter with an accuracy of .5% or better. Voltages are shown for both 12 volt and 6 volt batteries.

	If there is a .050 or more difference in the specific gravity reading between the highest and lowest cell, you have a weak or dead cell(s),
	If the battery will not recharge to a 75% or more state-of-charge level.
	If digital voltmeter connected to the battery terminals indicates 0 volts, you have an open cell, or if the digital voltmeter indicates 10.45 to 10.65 volts (5.2 to 5.35 volts for a 6 volt battery), you have a shorted cell.  [A shorted cell is caused by plates touching, sediment build-up or "treeing" between plates.
